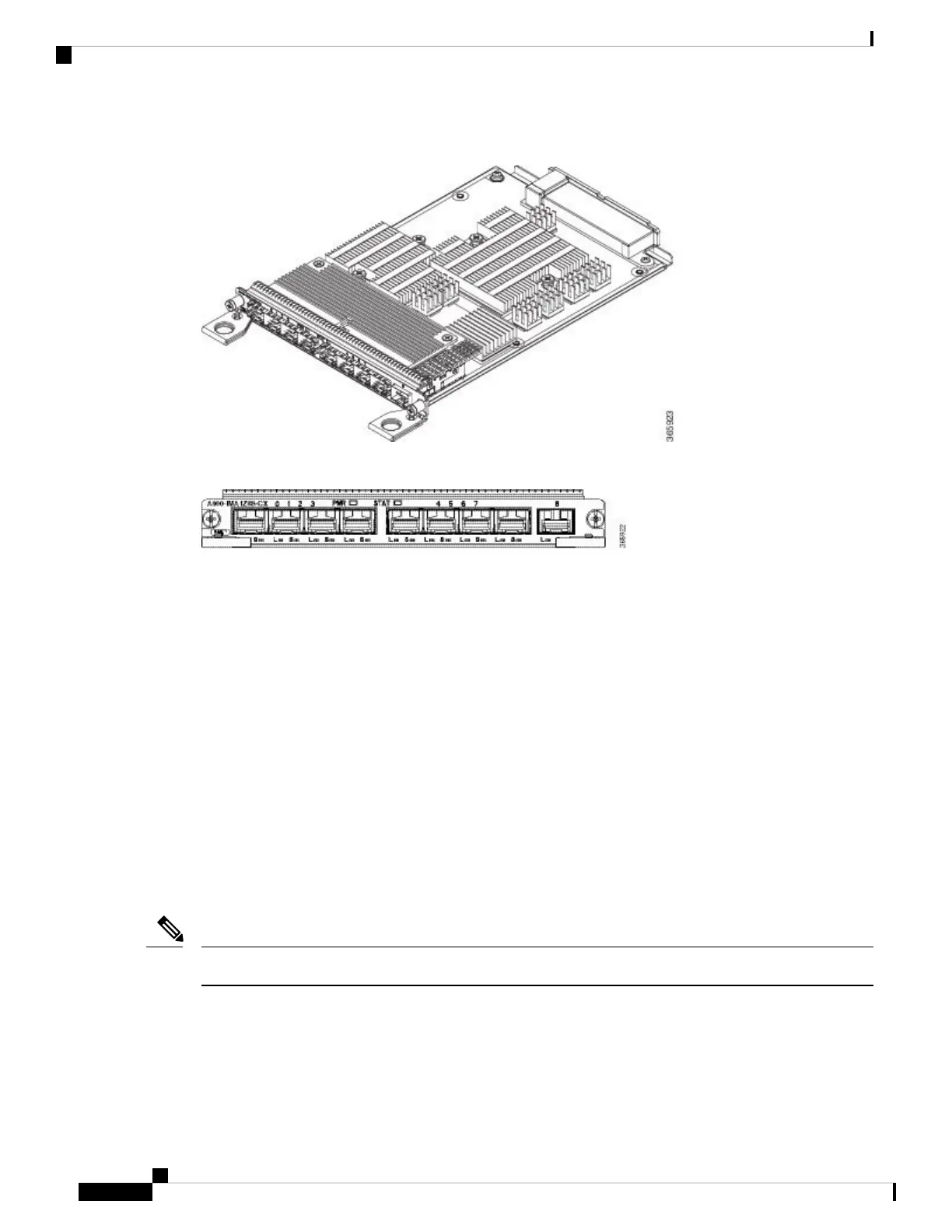

Figure 22: OC-192 Interface Module
Figure 23: OC-192 Interface Module Faceplate
The OC-192 interface modules are supported on slots 2, 3, 4 and 5 on the chassis.
Ports on the OC-192 are numbered from 1 to 8.
• Ports 0 to 7 are multi-rate ports, that support OC-3, OC-12, OC-48, Fast Ethernet interfaces, and the 1
Gigabit Ethernet interfaces.
• Port 8 is the 10 Gigabit Ethernet port that supports the OC-192 interfaces.
Port Restrictions
• The SFP+ port configuration is supported only on OC-192 interfaces port. If this port is enabled, other
SFP ports cannot be used (see the table given in Port Combinations Usage Guidelines section).
• Each SFP port can be configured for SONET or Ethernet.
• SFP ports configuration parameter, (see the table given in Port Combinations Usage Guidelines section):
• Maximum of 4 x OC-48 interfaces are supported per interface module
• For each OC-48 port enabled, neighboring SFP ports cannot be configured
• OC-3 and OC-12 port configuration is supported on all ports simultaneously
• 1 Gigabit Ethernet port configuration is supported on all ports simultaneously
1 Gigabit Ethernet port configuration is not supported.
Note
• Seamless migration from SONET to 1 Gigabit Ethernet interfaces is supported on all SFP ports
