The Call page
Making calls from the web
interface
Sometimes, e.g. when you are configuring the
system from a remote location, it is convenient
to be able to make calls from the video system
to ensure everything works as expected.
How to make a call

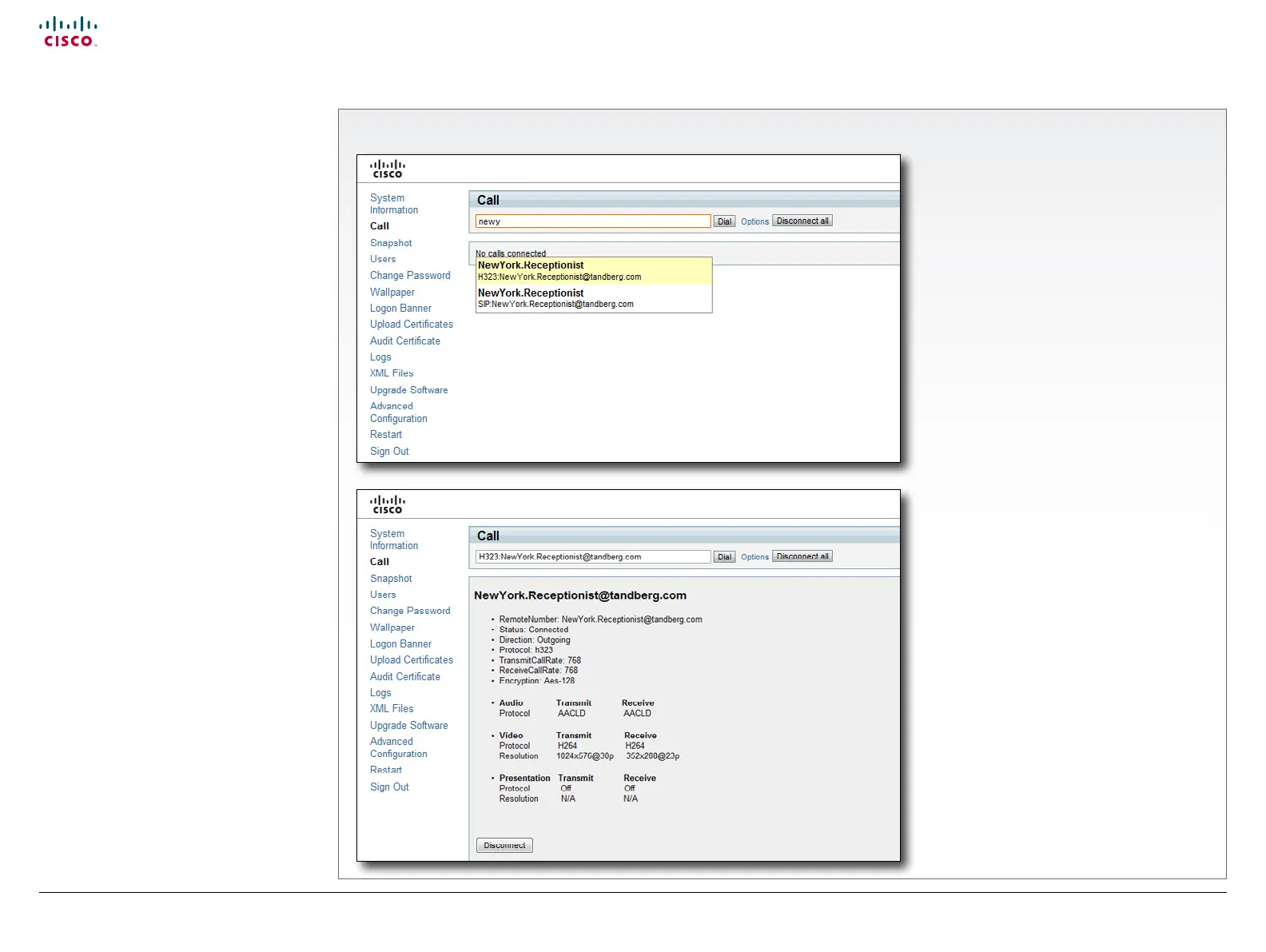

Input field: Enter one or more characters in
the input field, until the name you want to
call appears in the dynamic search list or,
enter the complete name or number.
Dial: Press Dial to initiate the call.
Disconnect all: Press Disconnect all to
end all calls.
Options: Click Options to change the bit
rate for this call. Select the Call rate in the
drop down list.
The call status page
The call status page appear when you
make a call. Please allow for approximately
30 seconds after the call is up before
checking call details.
You will find the following information on
the call status page:
• Remote number
• Status: Connected
• Direction: Incoming/Outgoing
• Protocol: H323/SIP
• Transmit and receive call rates
• Encryption
• Audio: Transmit and receive protocols
• Video: Transmit and receive protocols
and resolutions
• Presentation: Transmit and receive
protocols and resolutions
