Quick Set C20 Plus—Cable
configuration

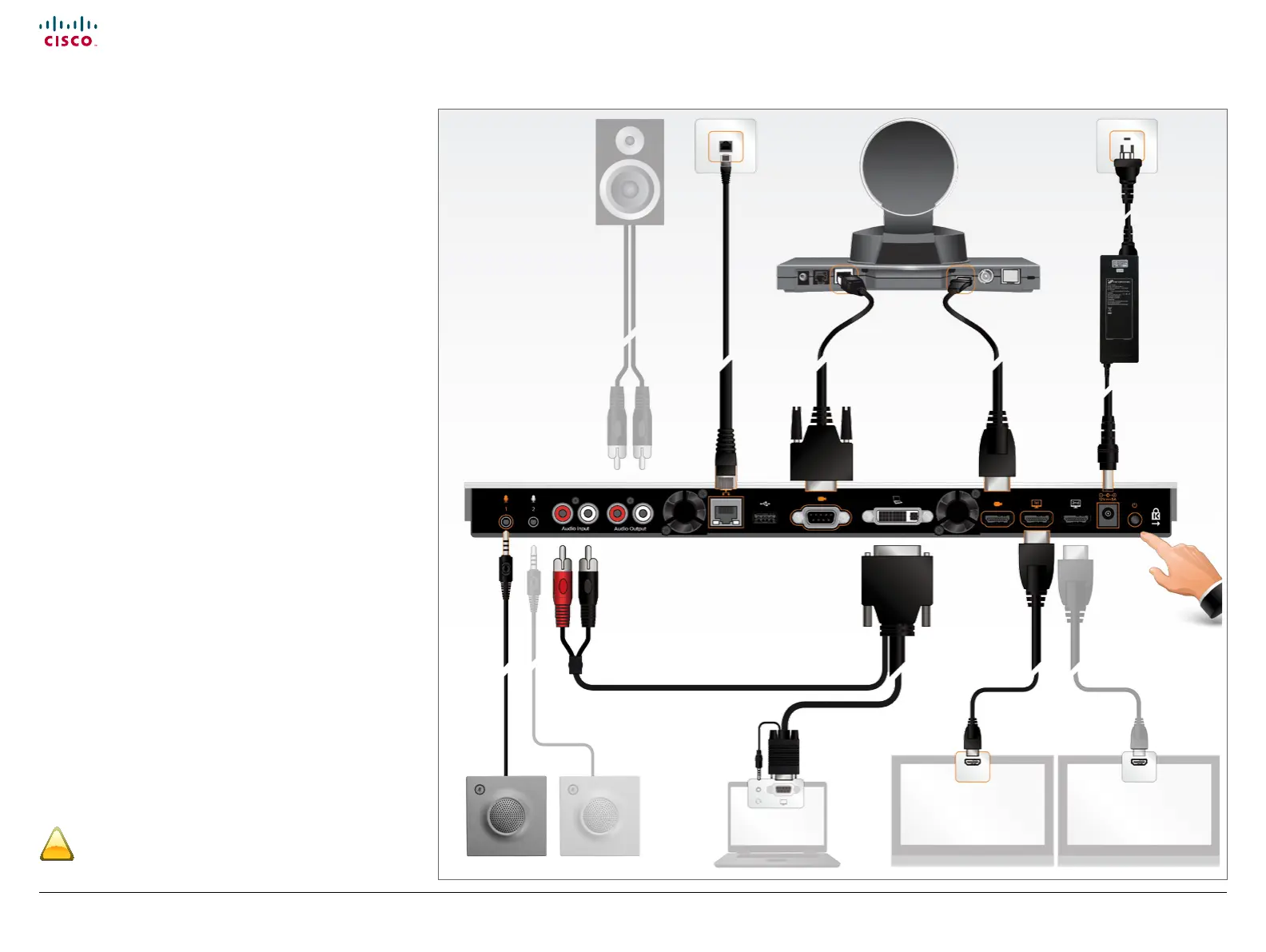

The illustration shows you the basic setup when connecting the
monitor, PC, PrecisionHD 1080p 12X camera, microphone,
loudspeakers (if applicable), LAN and line voltage to the Codec
C20.
CAUTION: In order to be able to use the system for video calls,
all orange colored sockets must be connected.
The codec must be switched off and disconnected from
the line voltage whenever connecting or disconnecting
other equipment.
HDMI HDMI
Contents
Contact us
Web interface
Advanced configuration
Introduction
Password protection
Appendices
Appendices

Cisco C20 Specifications

General

Encryption	AES
Frame Rate	Up to 30 fps
Firewall Traversal	Yes
Connectivity	Wired
Video Standards	H.264
Audio Standards	G.711, G.722
Network Interfaces	10/100/1000 Ethernet
Content Sharing	Yes
Product Type	Video conferencing system
Network Protocols	H.323, SIP
Interfaces	Ethernet
Video Resolution	720p
