Quick Set C20—Cable
configuration

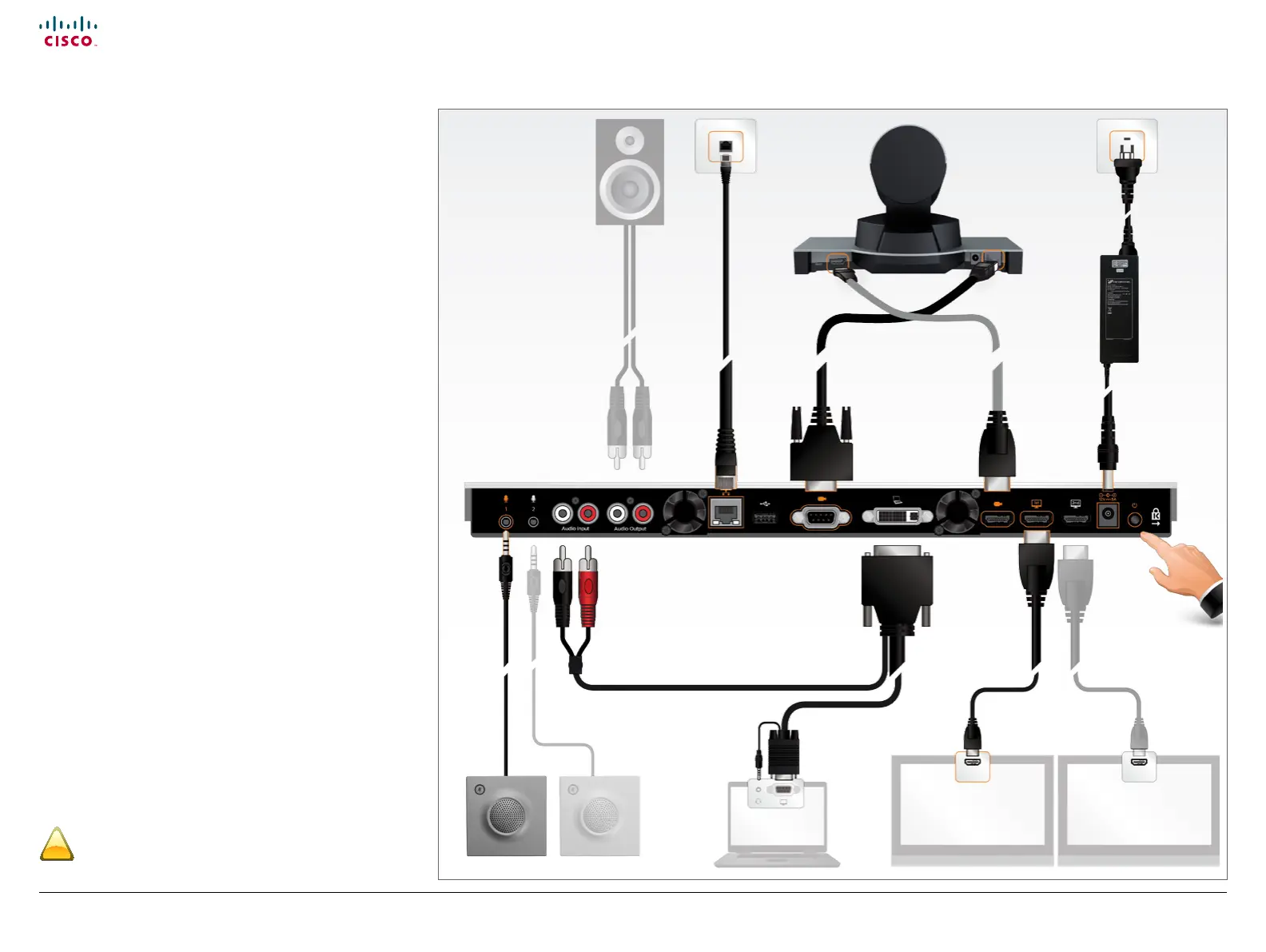

The illustration shows you the basic setup when connecting
the monitor, PC, PrecisionHD 1080p 4X camera, microphone,
loudspeakers (if applicable), LAN and line voltage to the Codec
C20.
NOTE: The early shipments of the Quick Set C20 came with
an interim version of the PrecisionHD 1080p 4X camera (the
PrecisionHD 1080p 4X* camera). For cable configurations of the
interim PrecisionHD 1080p 4X* camera, see next page.
CAUTION: In order to be able to use the system for video calls,
all orange colored sockets must be connected.
The codec must be switched off and disconnected from
the line voltage whenever connecting or disconnecting
other equipment.
