Codec C20–The physical interface

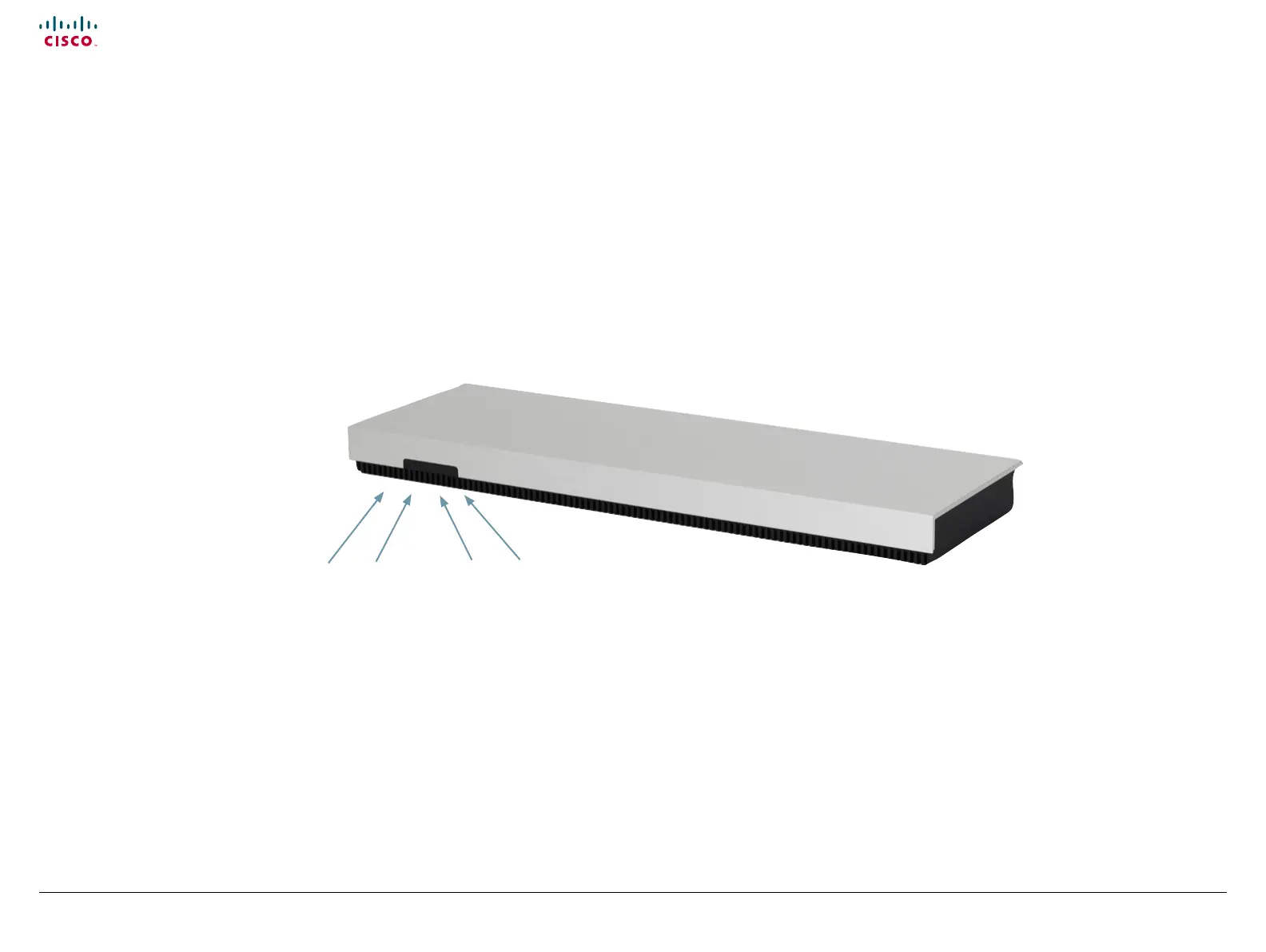

The front panel LEDs
The LED in front of the codec indicates the status of the codec.
• When the LED is off the codec is Off.
• The LED flashes green during the boot up and shut down of
the codec.
• The LED pulses green when the infrared (IR) port is activated.
This will occur when the remote control is in use.
• The LED is steady green when the codec is On, in Standby
mode or in Presentation mode.
• When the LED is red this indicates an Error has occurred.
Power Call IR Alarm
(infrared)
Contents
Contact us
Web interface
Advanced configuration
Introduction
Password protection
Appendices
Appendices

Cisco C20 Specifications

General

Encryption	AES
Frame Rate	Up to 30 fps
Firewall Traversal	Yes
Connectivity	Wired
Video Standards	H.264
Audio Standards	G.711, G.722
Network Interfaces	10/100/1000 Ethernet
Content Sharing	Yes
Product Type	Video conferencing system
Network Protocols	H.323, SIP
Interfaces	Ethernet
Video Resolution	720p
