Cisco Catalyst 2960-L Series - Front Panel

DescriptionSoftware
Switch Model
16 10/100/1000 Ethernet ports; 2 1-Gigabit small form-factor pluggable
(SFP) module uplink slots.
Lan LiteWS-C2960L-16TS-LL
16 10/100/1000 Power over Ethernet plus (PoE+) ports (PoE budget of
120W); 2 1-Gigabit small form-factor pluggable (SFP) module uplink
slots.
Lan LiteWS-C2960L-16PS-LL
Front Panel
This section describes the front panel components of a 8-port and 16-port Cisco Catalyst 2960-L switch.
• 8 or 16 downlink Ethernet ports of one of these types:
• 10/100/1000
• 10/100/1000 PoE+
• 2 SFP module ports
• RJ-45 console port
• USB mini-Type B (console) port
• USB Type A port
• LEDs

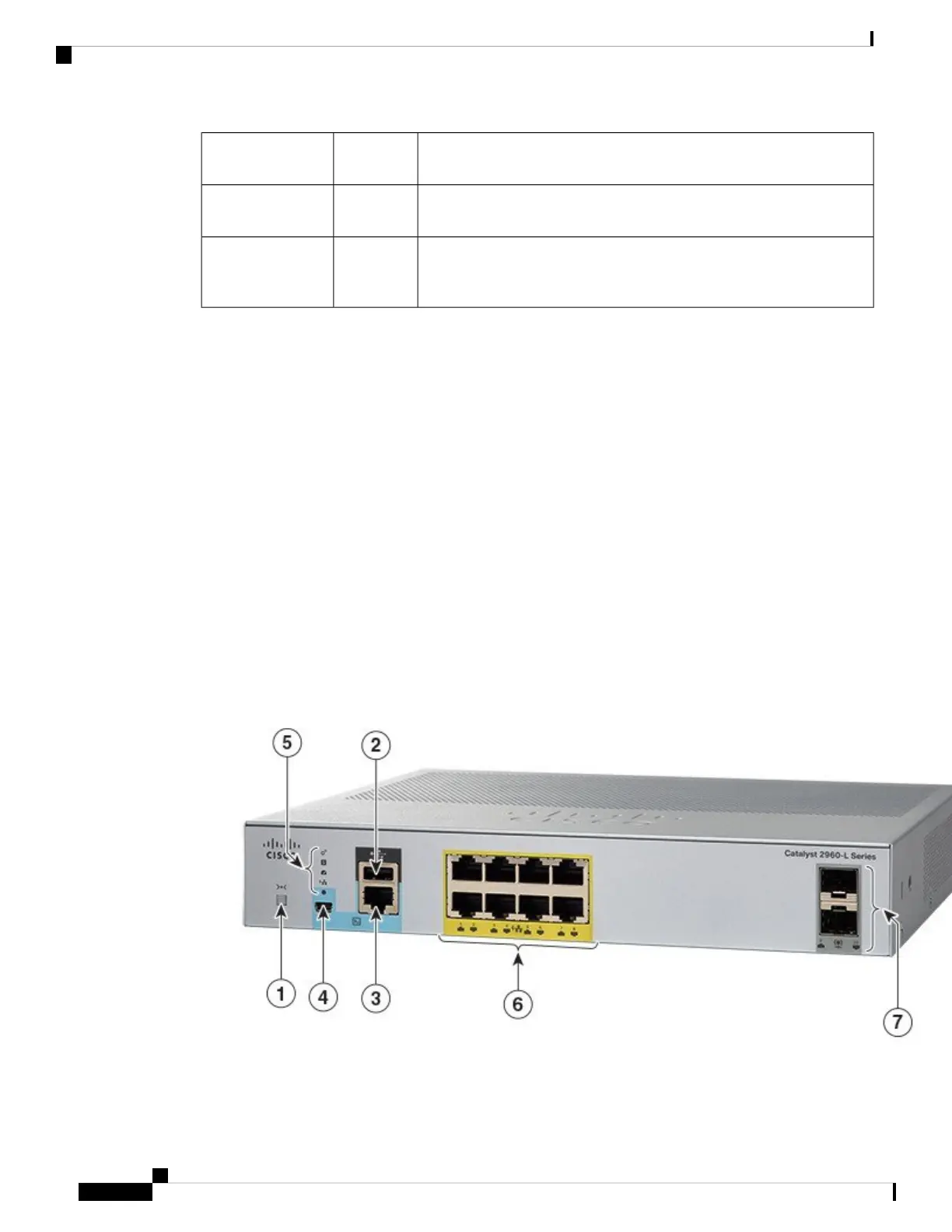

Figure 1: Front Panel of an 8-Port Cisco Catalyst 2960-L PoE Switch
Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide
2
Product Overview
Front Panel
