Cisco Catalyst 2960-L Series - Connector and Cable Specifications; Connector Specifications; 10;100;1000 Ports (Including Poe); SFP Module Connectors

APPENDIX B
Connector and Cable Specifications
This appendix contains these topics:
• Connector Specifications, on page 53
• Cables and Adapters, on page 54
Connector Specifications
10/100/1000 Ports (Including PoE)
All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

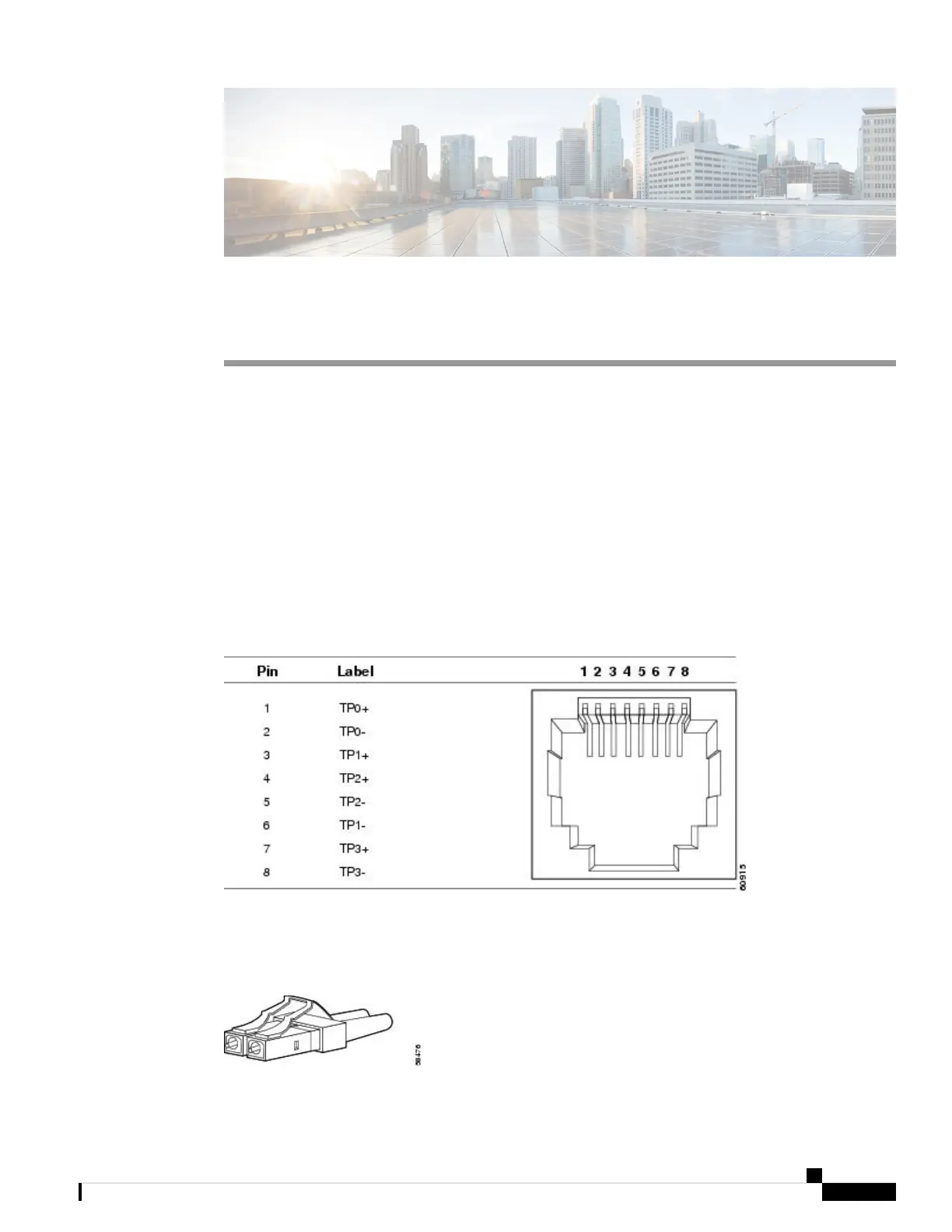

Figure 40: 10/100/1000 Port Pinouts
SFP Module Connectors
Figure 41: Duplex LC Cable Connector
