Cisco Catalyst 2960-L Series User Manual

Cable Pinouts

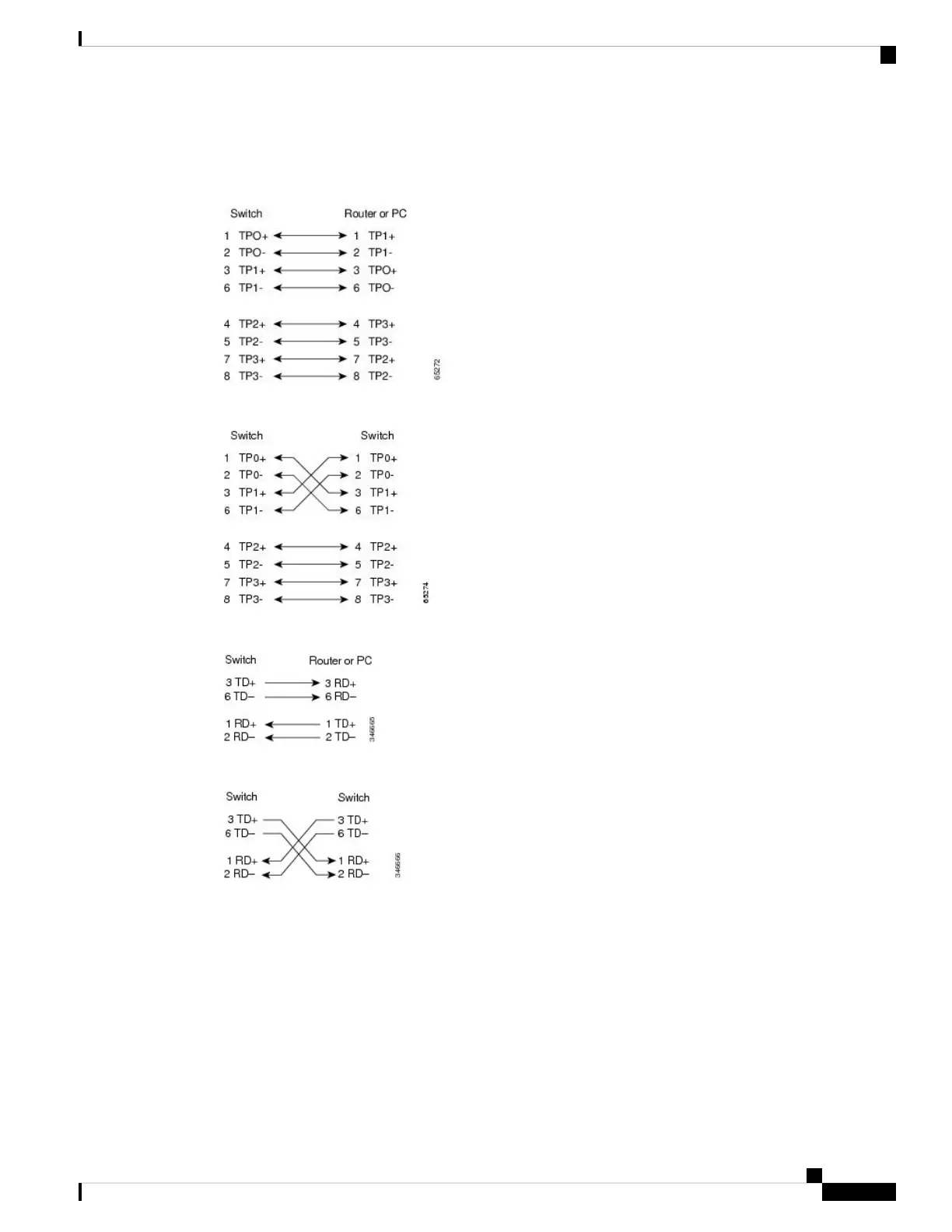

Figure 44: Four Twisted-Pair Straight-Through Cable Schematic
Figure 45: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 46: Two Twisted-Pair Straight-Through Cable Schematic
Figure 47: Two Twisted-Pair Crossover Cable Schematic
Identifying a Crossover Cable
To identify a crossover cable, compare the two modular ends of the cable. Hold the cable ends side-by-side,
with the tab at the back. The wire connected to the pin on the outside of the left plug should be a different
color from the wire connected to the pin on the inside of the right plug.
Cisco Catalyst 2960-L Series 8-Port and 16-Port Switch Hardware Installation Guide
55
Connector and Cable Specifications
Cable Pinouts

Cisco Catalyst 2960-L Series Specifications

General

Series	Catalyst 2960-L
Ports	8, 16, 24, or 48 Gigabit Ethernet ports
Layer	Layer 2
Flash Memory	64 MB
MAC Address Table Size	8, 000 entries
Uplink	2 or 4 Gigabit SFP
PoE	Available on selected models
VLAN Support	Up to 255 VLANs
Power Supply	Internal power supply
Operating Temperature	0°C to 40°C (32°F to 104°F)
Dimensions	44.5 x 27.9 x 4.45 cm (17.5 x 11.0 x 1.75 in.)
