© 2004 Boson Software, Inc. All Rights Reserved. 68
Manually Connecting Frame Relay, Continued…..

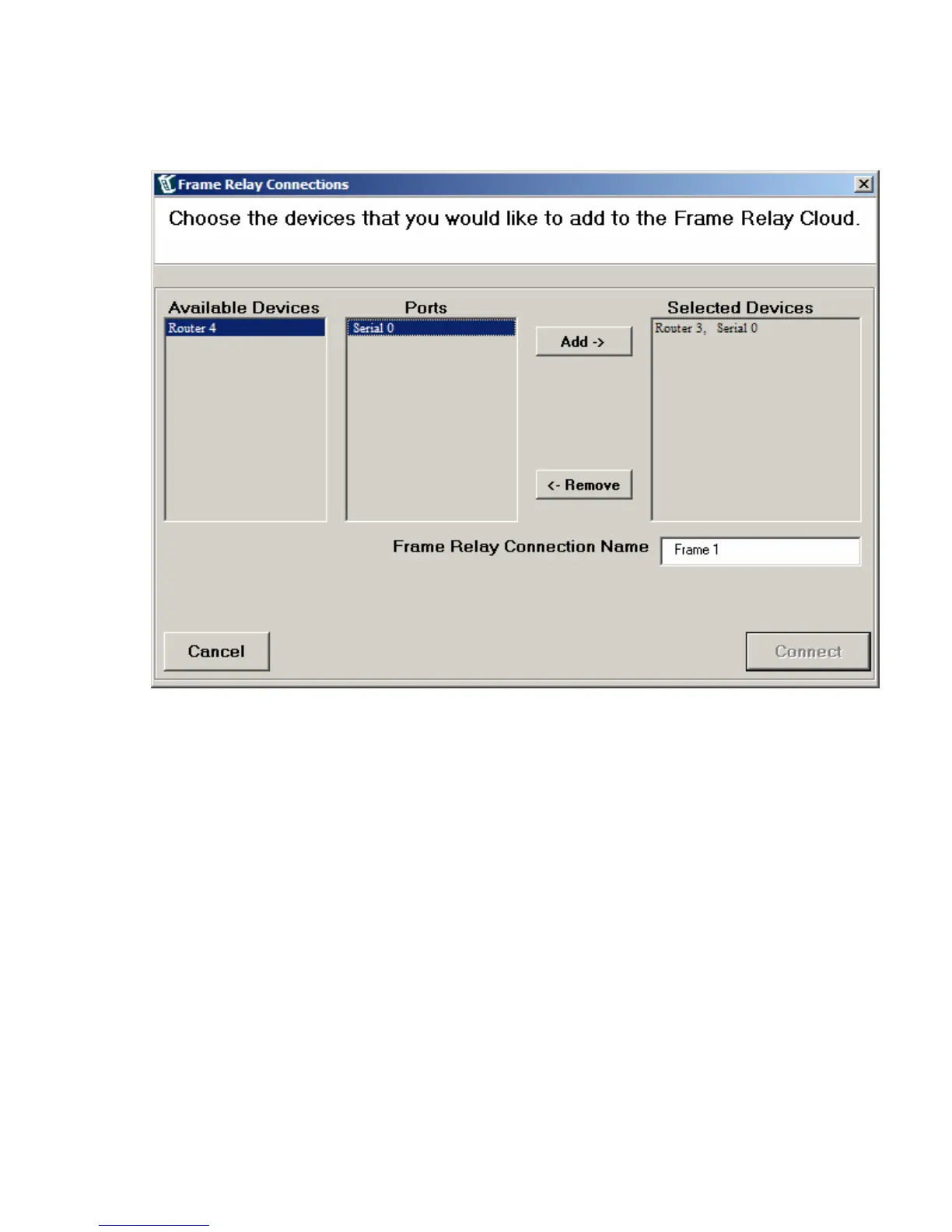

Click each Available Device to highlight and select it
4. Next, select the router you would like to connect from the Available Devices box
5. Selecting a Router will cause the Ports list to be populated with all available serial ports for
the selected router.
6. After selecting the serial port that will be used, click the AddÆ button to place the Device and
selected interface in the Selected Devices box.
7. When you are finished adding Devices, click the Connect button to complete the connection.
Do this for each router included in the Frame Relay (up to 8 routers maximum in Full Mesh).
To Next Page
