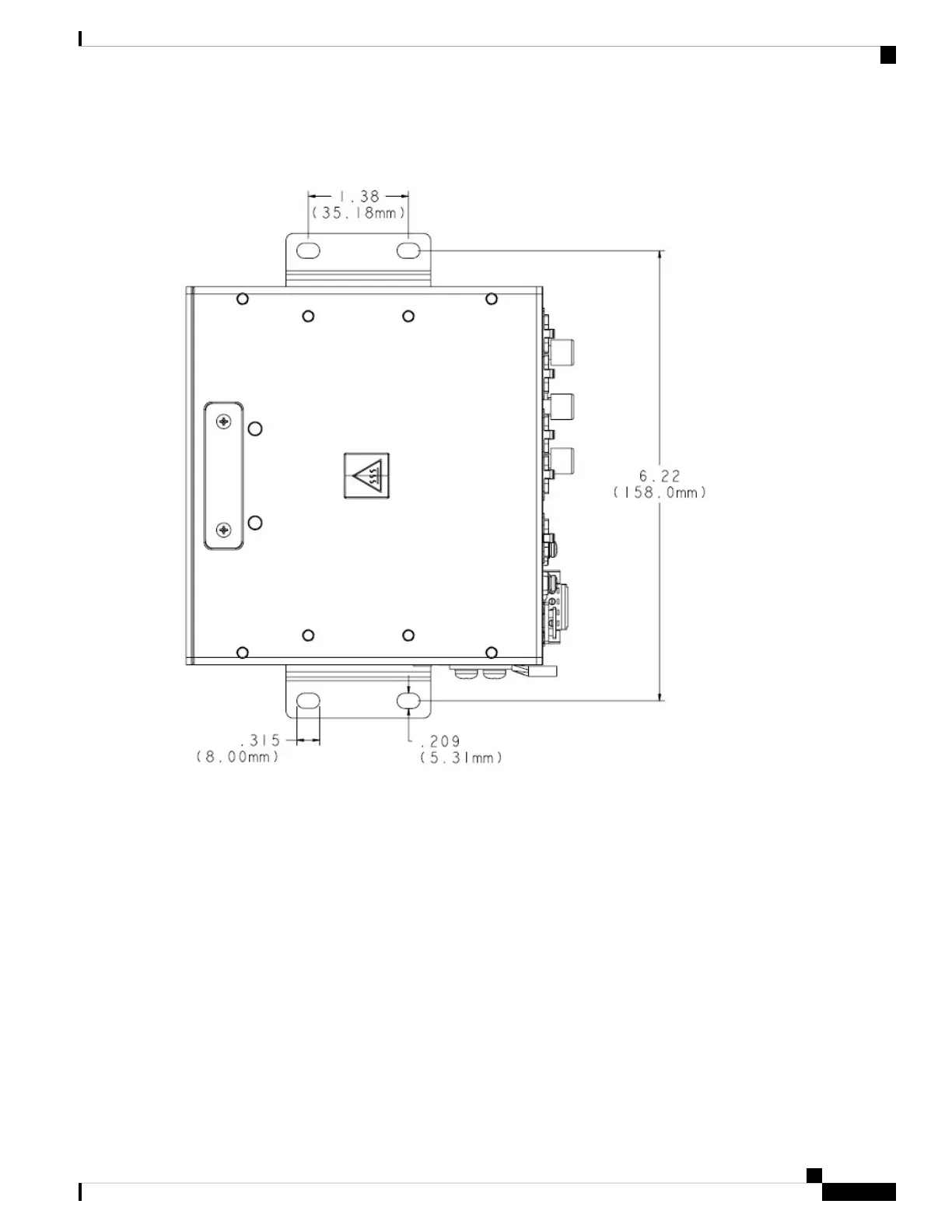

Figure 14: Wall/Floor mounting hole dimensions with mounting brackets attached
Four #10-32 screws are recommended when mounting the unit with these brackets attached to the neighboring
surface.
Note
IR1101 Industrial Integrated Services Router Hardware Installation Guide
31
Installing the Router
Mounting on a Wall, Table, or Other Flat Surface
