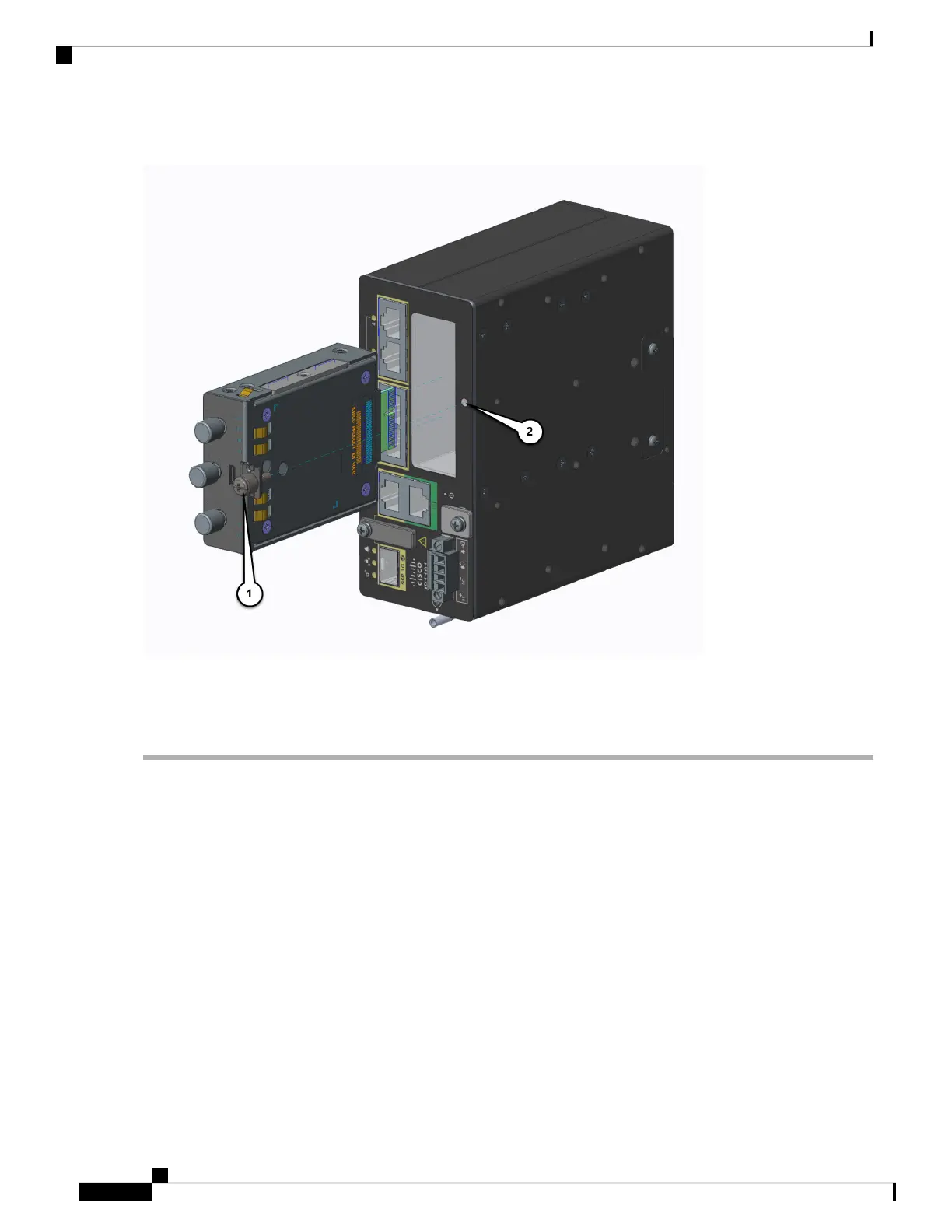

Figure 25: Pluggable Module Insert
Step 9 Attach your antennas to the ports on the pluggable module. There are different instructions for each antenna type, be
sure to consult the antenna documentation for proper orientation and torque to install them.
Step 10 If no antennas are being installed on a port, make sure the caps are installed on the connector.
