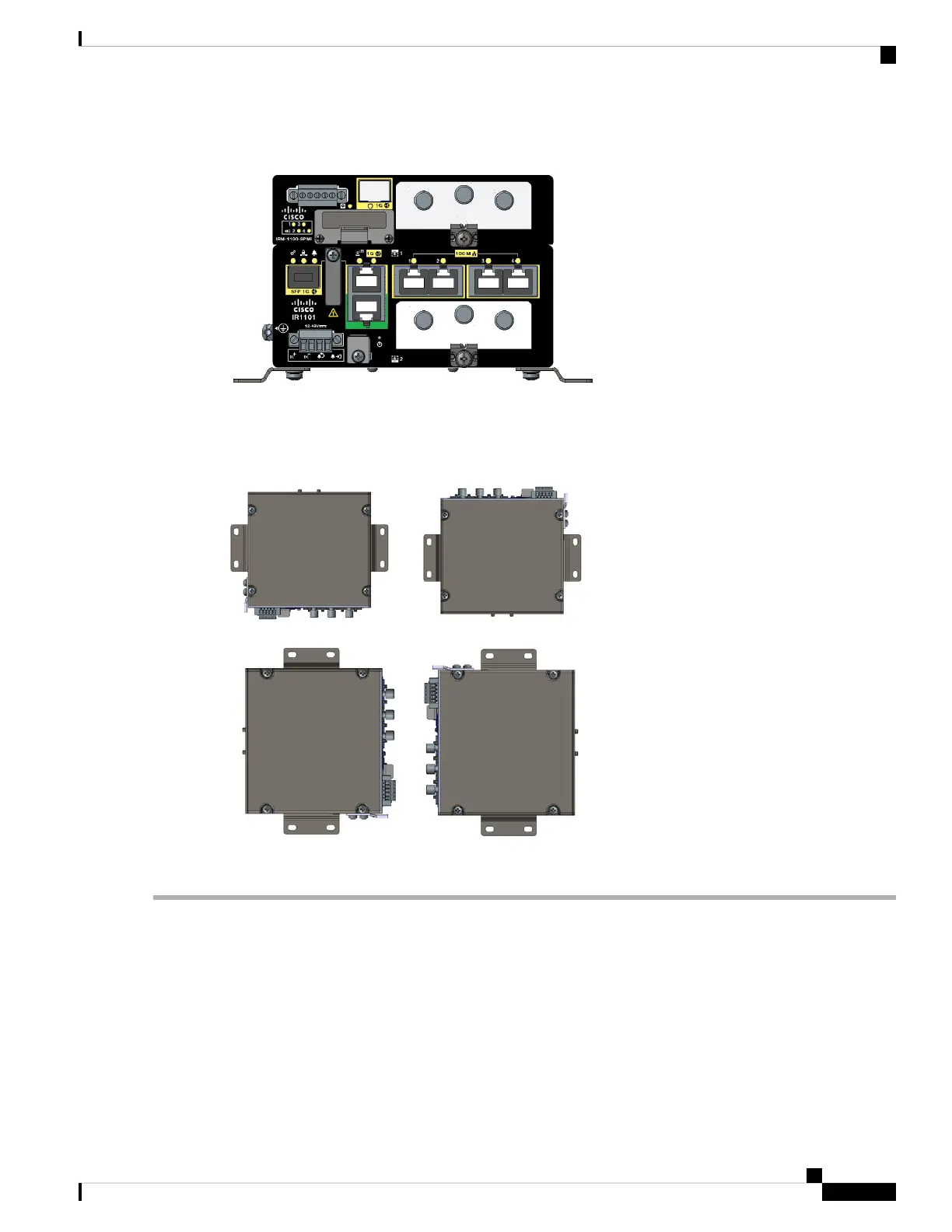

Figure 29: Table Mounting
The device can also be mounted vertically on a wall in 4 orientations as shown in Figure 30: Wall Mounting,
on page 55.
Figure 30: Wall Mounting
To mount the Device on a wall or other flat surface, follow these steps:
Step 1 Attach the mounting brackets to the bottom of the Device. Refer to Figure 31: Mounting Brackets, on page 56 for guidance.
IR1101 Industrial Integrated Services Router Hardware Installation Guide
55
Installing the IRM-1100 Expansion Module
Mounting the Device Using Mounting Brackets
