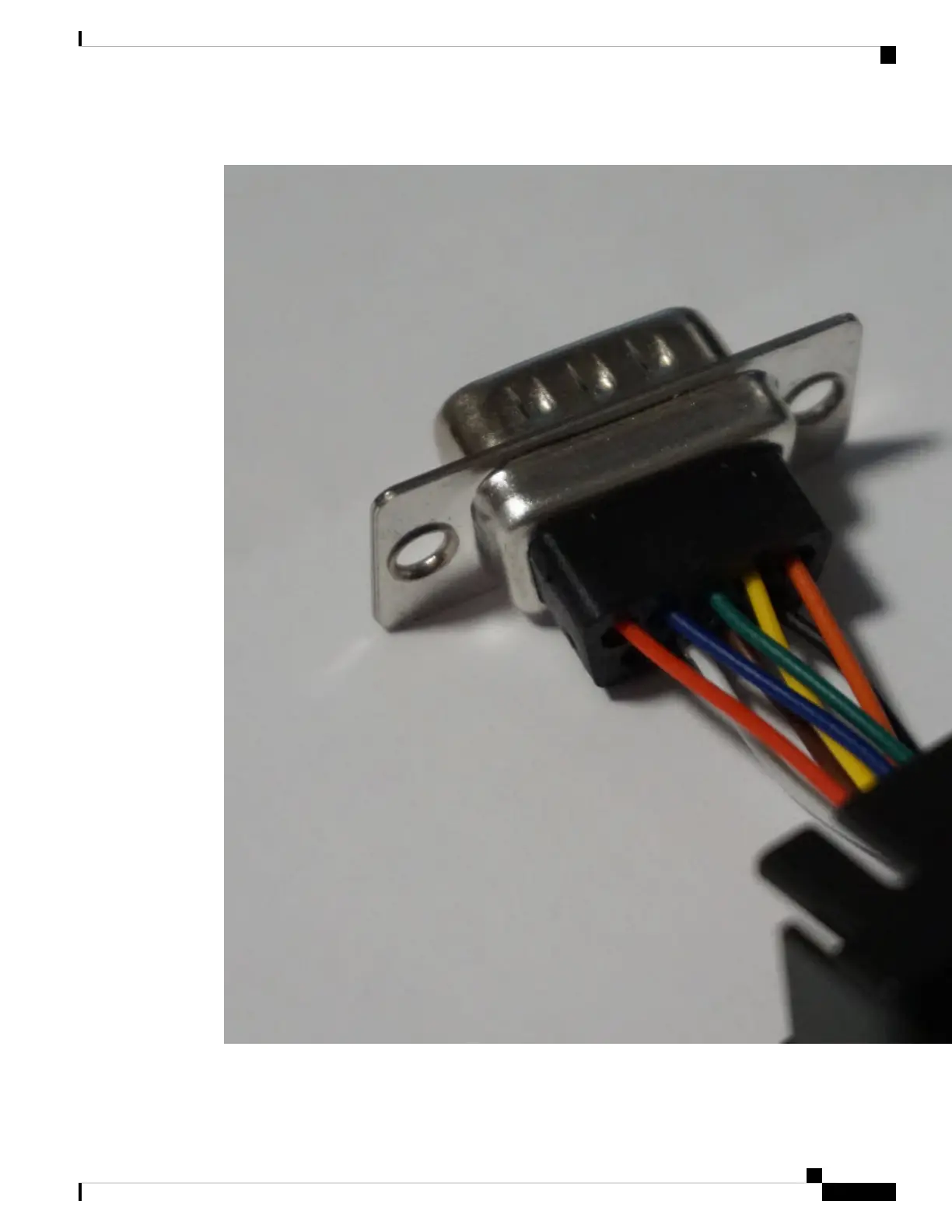

Figure 48: Completed Pinning
Snap the DB9 side of the adapter into place on the plastic connector holding the RJ-45 side of the connector.
When this is complete, your connector is ready to use.
IR1101 Industrial Integrated Services Router Hardware Installation Guide
75
Connecting the Router
RJ-45 Adapter Side
