Chapter 1 Product Overview
Catalyst 4503-E Switch
Catalyst 4503-E Switch
The Catalyst 4503-E switch is a 3-slot horizontal chassis supporting redundant power supplies, a single
supervisor engine, and slots for up to two modules.
Figure 1-1 shows a front view of the Catalyst 4503-E
switch with the chassis major features identified.

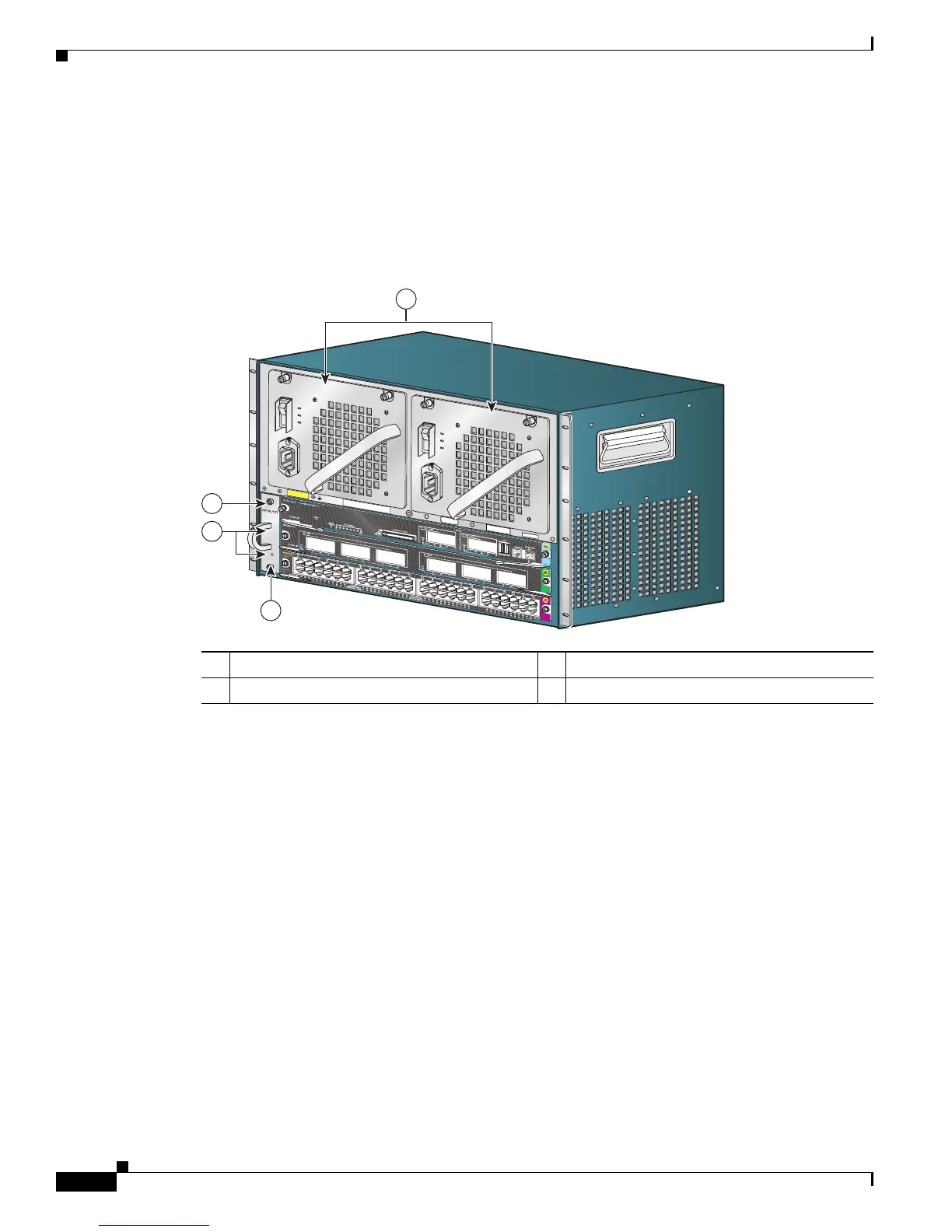

Figure 1-1 Catalyst 4503-E Switch Chassis (Front View)
Table 1-1 describes the features of the Catalyst 4503-E switch chassis.
1 Fan tray assembly 3 Supervisor engine (slot 1)
2 Switching modules (slots 2 and 3) 4 Redundant power supplies
231362
REMO
V
E LABEL FO
R
SYSTEM G
ROUND
M
i
nimum
Cat4500
S
of
t
wa
re Re
q
u
i
rement
V
er
si
on: I
O
S:
12.2(
37
)SG
4503
1
2
3
4
