A-13
Catalyst 4500 E-Series Switches Installation Guide
OL-13972-02
Appendix A Power Supply Specifications
1400 W AC-Input Power Supply
1400 W Power Supply AC Power Cords

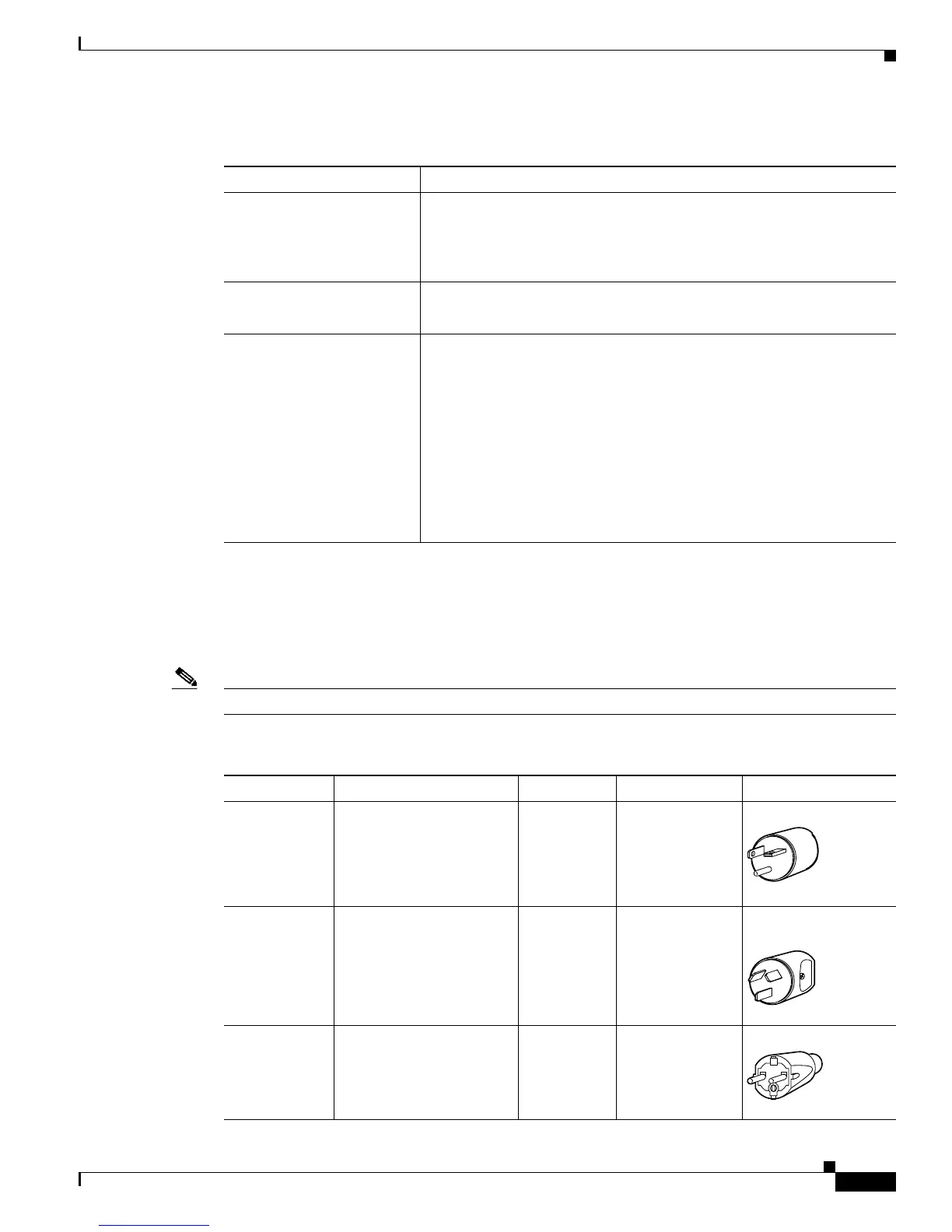

Table A-9 lists the specifications for the AC power cords that are available for the 1400 W AC-input
power supply. The table includes a power plug illustration for each power cord.
Note All 1400 W power supply power cords have an IEC60320/C19 appliance plug at one end.
Ta b l e A-8 1400 W AC-Input Power Supply LEDs
LED Meaning
INPUT OK • Green—Source AC voltage is OK. (Input voltage is 85 VAC o r
greater.)
• Off—Source AC voltage falls below 70 VAC, is not present, or the
power supply is turned off.
FAN OK • Green—Power supply fan is operating properly.
• Off—Power supply fan failure is detected.
OUTPUT FAIL • Red—Problem with one or more of the DC-output voltages of the
power supply is detected.
• Off—DC-output voltage with acceptable margins.
Note For proper operation of the OUTPUT FAIL LED, systems with
single power supplies must be configured with a minimum of
one fan tray assemblyand one supervisor engine. Systems with
dual power supplies must have a minimum configuration of one
fan tray assembly, one supervisor engine, and one additional
module. Failure to meet these minimum configuration
requirements can cause a false power supply output fail signal.
Ta b l e A-9 1400 W AC-Input Power Supply Power Cords
Locale Power Cord Part Number Length Cordset Rating AC Source Plug Type
North America CAB-US520-C19-US=
(was CAB-7513AC=)
14 ft (4.3 m) 20 A, 125 VA C NEMA 5-20
Australia,
New
Zealand
CAB-A3112-C19-AUS=
(was CAB-7513ACA=)
14 ft (4.3 m) 15 A, 250 VA C SAA/3,
AS/NZZS 3112-1993
Europe (except
Italy)
CAB-CEE77-C19-EU=
(was CAB-7513ACE=)
14 ft (4.3 m) 16 A, 250 VA C CEE 7/7
120362
120356
120357
