Appendix A Power Supply Specifications
6000 W AC-Input Power Supply
6000 W Power Supply AC Power Cords

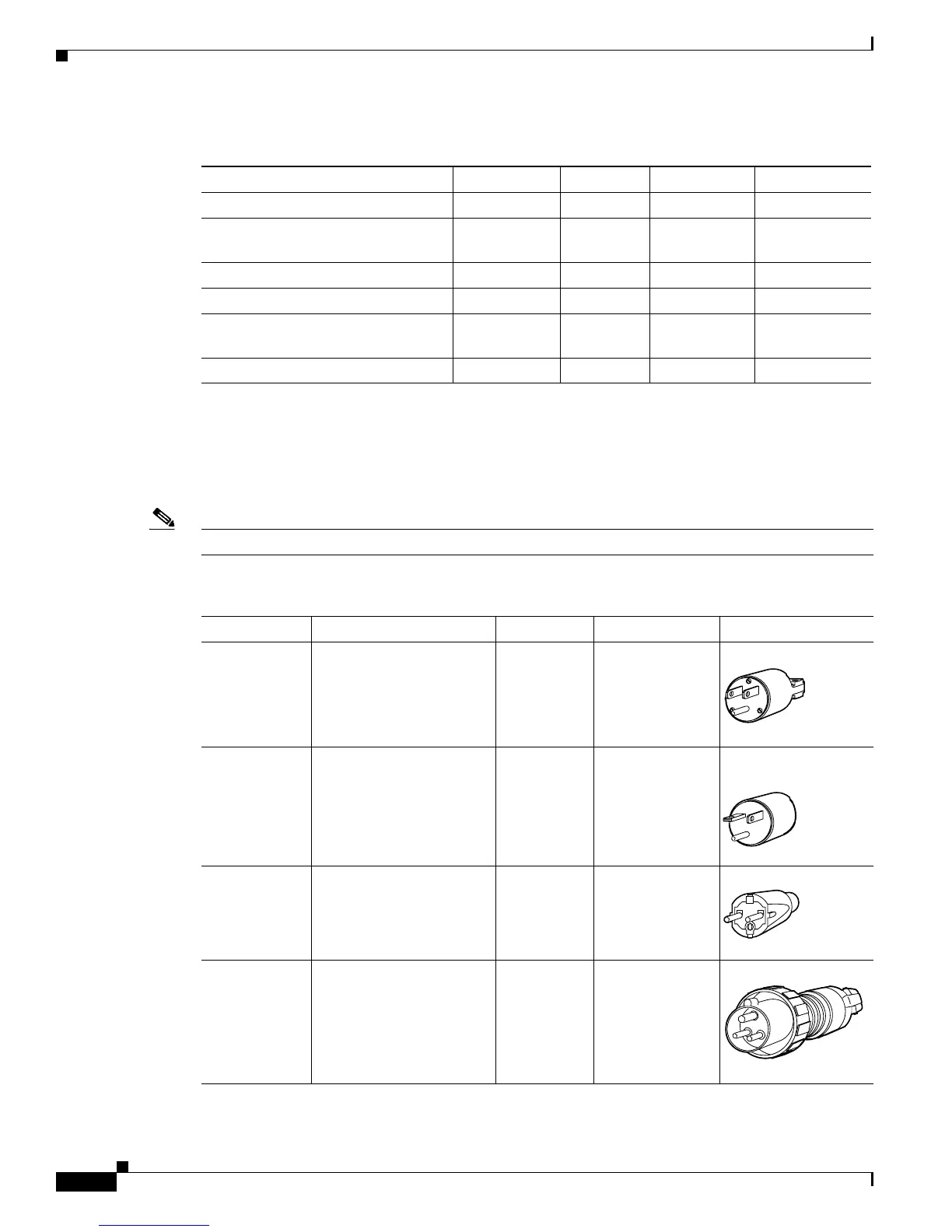

Table A-33 lists the specifications for the AC power cords that are available for the 6000 W AC-input
power supply. The table includes references to power cord illustrations.
Note All 6000 W AC-input power supply power cords have an IEC60320/C19 appliance plug at one end.
Ta b l e A-32 Combined Mode Output
W @ 12 VDC W @3.3 VDC W @ –50 VDC Maximum (W)
Both PS with one input at 110 VAC 1400 W 40 W 1670 W 1710 W
One 110 VAC input to one PS, two
110
VAC inputs to the other PS
2360 W 40 W 2560 W 2800 W
Both PS with two 110 VAC inputs 3090 W 40 W 3360 W 3700 W
Both PS with one 220 VAC input 4000 W 40 W 4360 W 5400 W
Two 220 VAC inputs to one PS, one
220
VAC input to the other PS
4000 W 40 W 6600 W 6200 W
Both PS with two 220 VAC inputs 4000 W 40 W 8700 W 10900 W
Ta b l e A-33 6000 W AC-Input Power Supply Power Cords
Locale Power Cord Part Number Length Cordset Rating AC Source Plug Type
North America
120 VAC
operation
CAB-US515P-C19-US 9.8 ft
(2.98
m)
15 A, 125 VA C NEMA 5-15P
North America
(nonlocking)
200–240 VAC
operation
CAB-US620P-C19-US 13.2 ft
(4.02
m)
20 A, 250 VA C NEMA 6-20
non-locking
Europe CAB-AC-2800W-EU=
CAB-CEE77-C19-EU=
13.2 ft
(4.0
m)
16 A, 250 VA C CEE 7/7
International CAB-AC-2800W-INT=
CAB-I309-C19-INT=
13.6 ft
(4.1
m)
20 A, 250 VA C IEC 309
120354
120355
120357
120360
