Appendix A Power Supply Specifications
6000 W AC-Input Power Supply

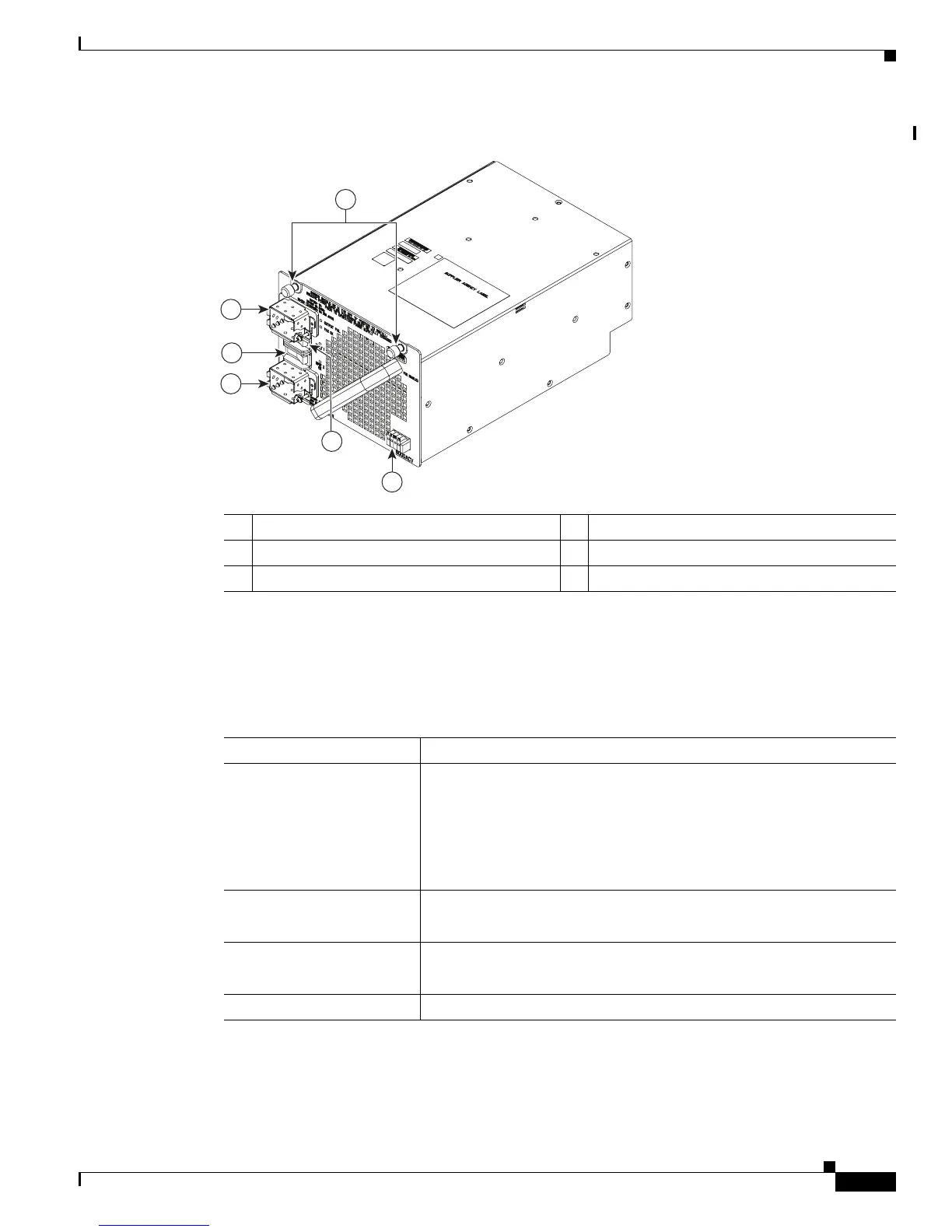

Figure A-8 6000 W Dual-Input AC Power Supply
6000 W Power Supply Specifications
Table A-29 lists the specifications for the 6000 W AC-input power supplies.
1 AC-input 2 receptacle 4 AC-input 1 receptacle
2 AC-input 2 on switch 5 Captive screws
3 AC-input 1 on switch 6 Remote power cycling terminal
274931
5
4
2
1
3
6
Ta b l e A-29 6000 W AC-Input Power Supply Specifications
Item Specification
AC-input type Autoranging inputs with power factor correction
Note Power factor correction is a standard feature on all Catalyst 4500
E-series AC-input power supplies. PFC reduces the reactive
component in the source AC current allowing higher power
factors (typically 99 percent or better) and lower harmonic
current components.
AC-input voltage • Low-line (120 VAC nominal)—85 VAC (min) to 132 VAC ( m a x )
• High-line (230 VAC nominal)—170 VAC (min) to 264 VAC (max)
AC-input current • 12 A (max) @ 120 VAC (for each input)
• 16 A (max) @ 230 VAC (for each input)
AC-input frequency 50/60 Hz (nominal) (±3% for full range)
