Appendix A Power Supply Specifications
4200 W AC-Input Power Supply
4200 W AC-Input Power Supply
The 4200 W AC-input power supply (PWR-C45-4200ACV), shown Figure A-7, is supported in the
following Catalyst 4500 E-series switches:
• Catalyst 4503-E
• Catalyst 4506-E
• Catalyst 4507R-E
• Catalyst 4510R-E
• Catalyst 4507R+E
• Catalyst 4510R+E

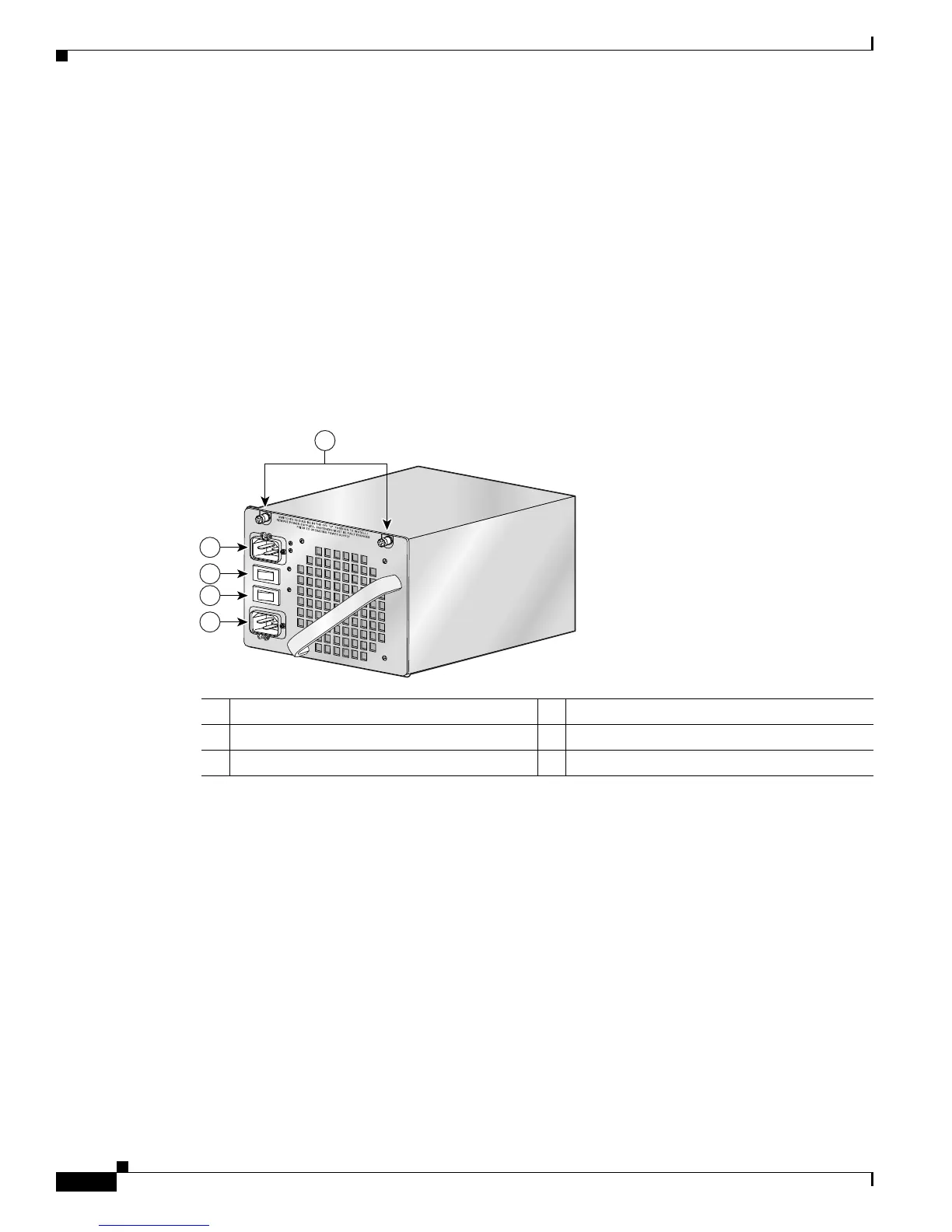

Figure A-7 4200 W AC-Input Power Supply
4200 W AC-Input Power Supply Specifications
Table A-24 lists the specifications for the 4200 W AC-input power supply.
1 AC-input 2 receptacle 4 AC-input 1 receptacle
2 AC-input 2 power on/off switch 5 Captive installation screws
3 AC-input 1 power on/off switch
231376
100-120V-
12A
50/60Hz
100-120V-
12A
50/60Hz
INPUT 1
OK
INPUT 2
OK
POE ENABLED
4600ACV
OUTP{UT FAI:
FAN OK
4
5
3
2
1
