Catalyst 4500 E-Series Switches Installation Guide
OL-13972-02
Chapter 1 Product Overview
Catalyst 4507R+E Switch
Catalyst 4507R+E Switch
The Catalyst 4507R+E switch is a 7-slot horizontal chassis supporting redundant power supplies,
redundant supervisor engines, and slots for up to five modules.
Figure 1-5 shows a front view of the
Catalyst 4507R+E switch with the chassis major features identified.

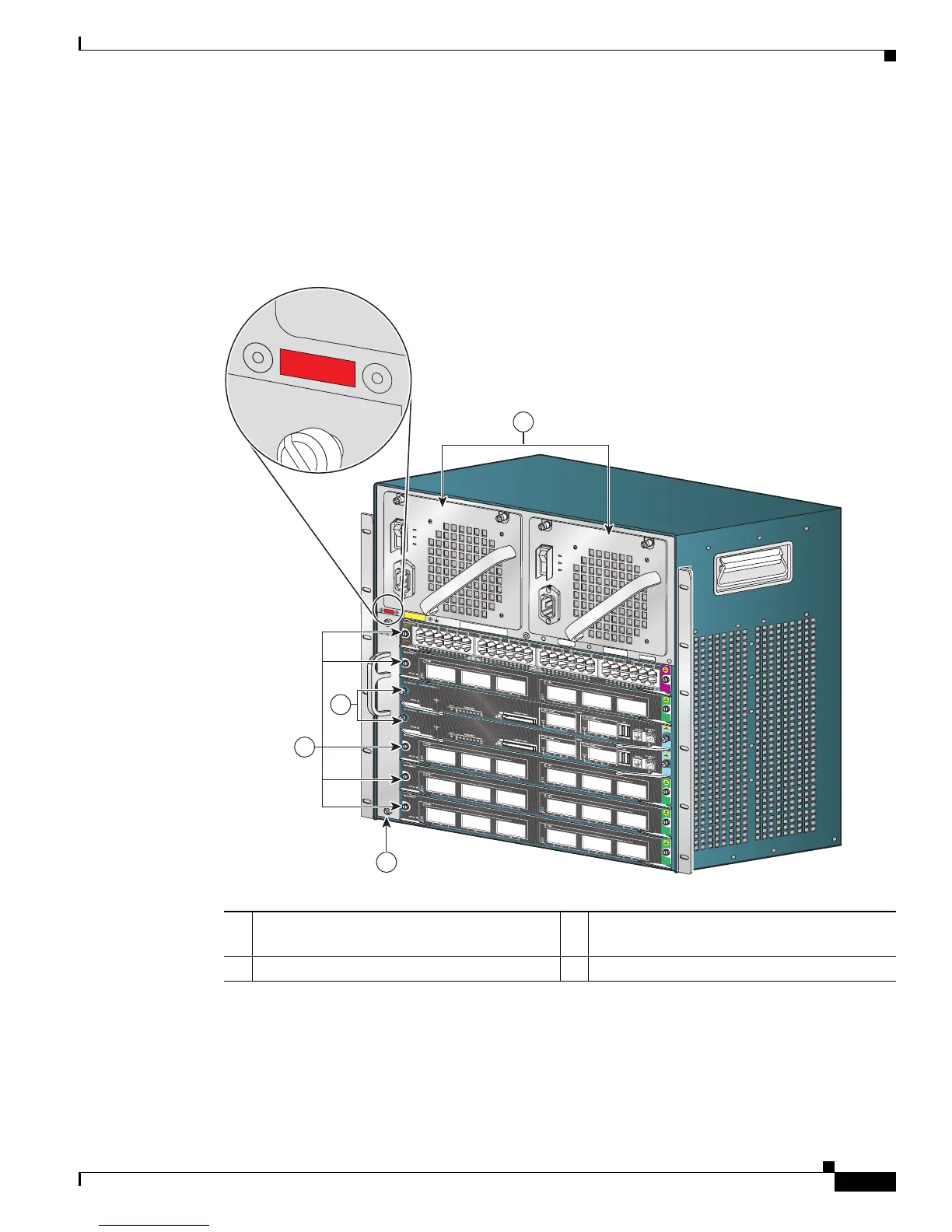

Figure 1-5 Catalyst 4507R+E Switch Chassis
Table 1-9 describes the features of the Catalyst 4507R+E switch.
1 Fan tray 3 Supervisor engines (primary in slot 3 and
secondary in slot
4)
2 Switching modules (slots 1, 2, 5, 6, 7) 4 Power supplies
279246
+E
S
e
r
i
e
s
RE
M
O
V
E LABEL FO
R
SYS
TE
M G
RO
UND
Minim
um Cat45
00
Software
Re
quirement
V
e
rsi
on: I
O
S: 12.2(37
)SG
4506
+E Series
2
3
4
1
