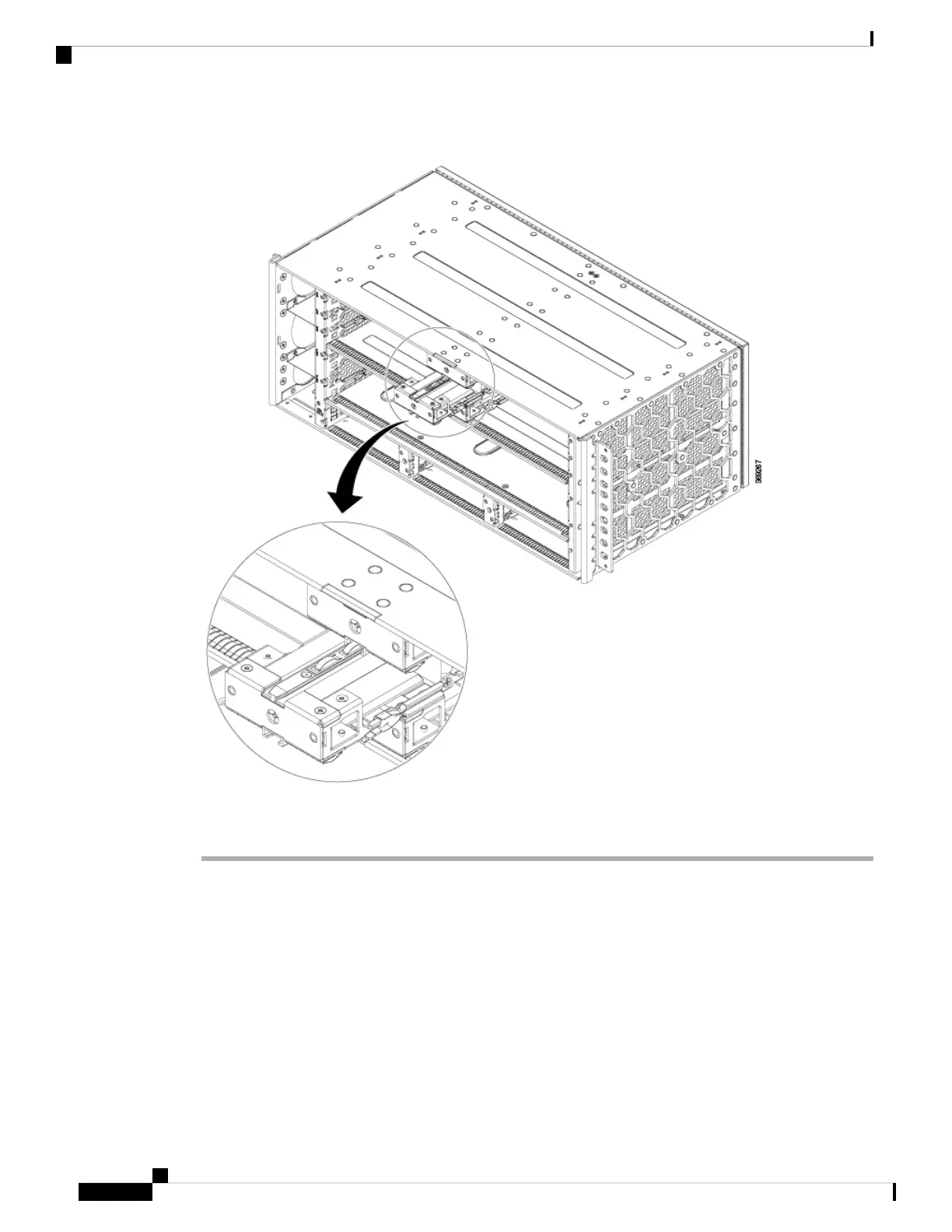

Figure 44: Removing the IM Center Bracket from the IM Slot
This completes the removal of the IM center brackets.
Interface Module Installation
The following sections describe the various tasks associated with interface module installation on the Cisco
NCS 560-4 Router:
