Chapter 9 Replacement Procedures
Replacing an AC Power Supply Unit During Operations
Step 4 Unscrew the four captive screws on the power supply unit so that they are no longer in contact with the
chassis.
Step 5 With one hand on the handle of the power supply unit, pull the unit part way out of the chassis.
Step 6 Place your other hand underneath the power supply unit to support its weight and then pull the unit fully
out of the chassis.
Step 7 Place the power supply unit on an antistatic mat or repack it in its original shipping materials. To repack
a 6-kW AC power supply unit, see Figure 9-1. To repack a 7.5 kW AC power supply unit, see Figure 9-2.

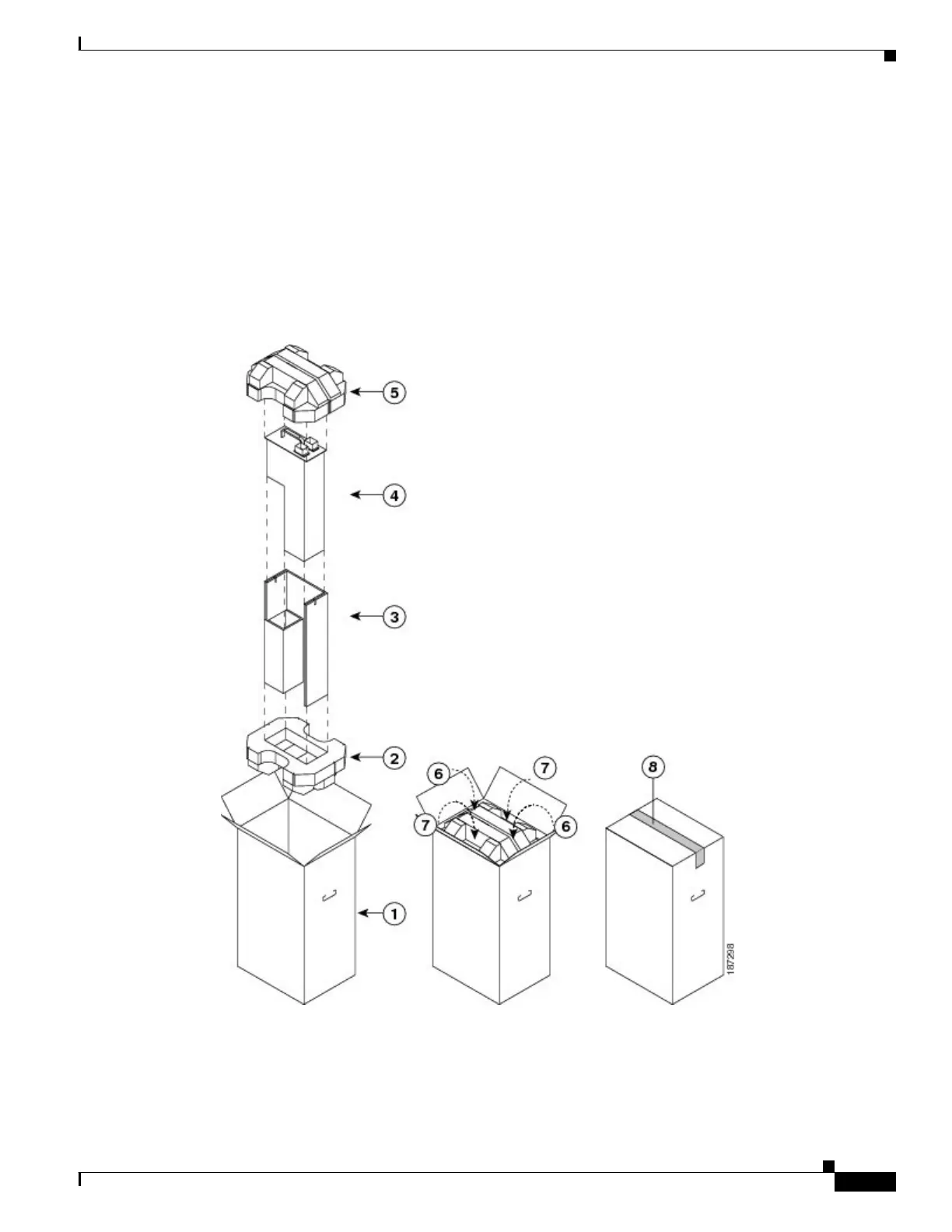

Figure 9-1 Repacking a 6-kW AC Power Supply Unit
