Screw in 4 captive screws and
tighten each screw to 8 in-lb (0.9
N·m) of torque.

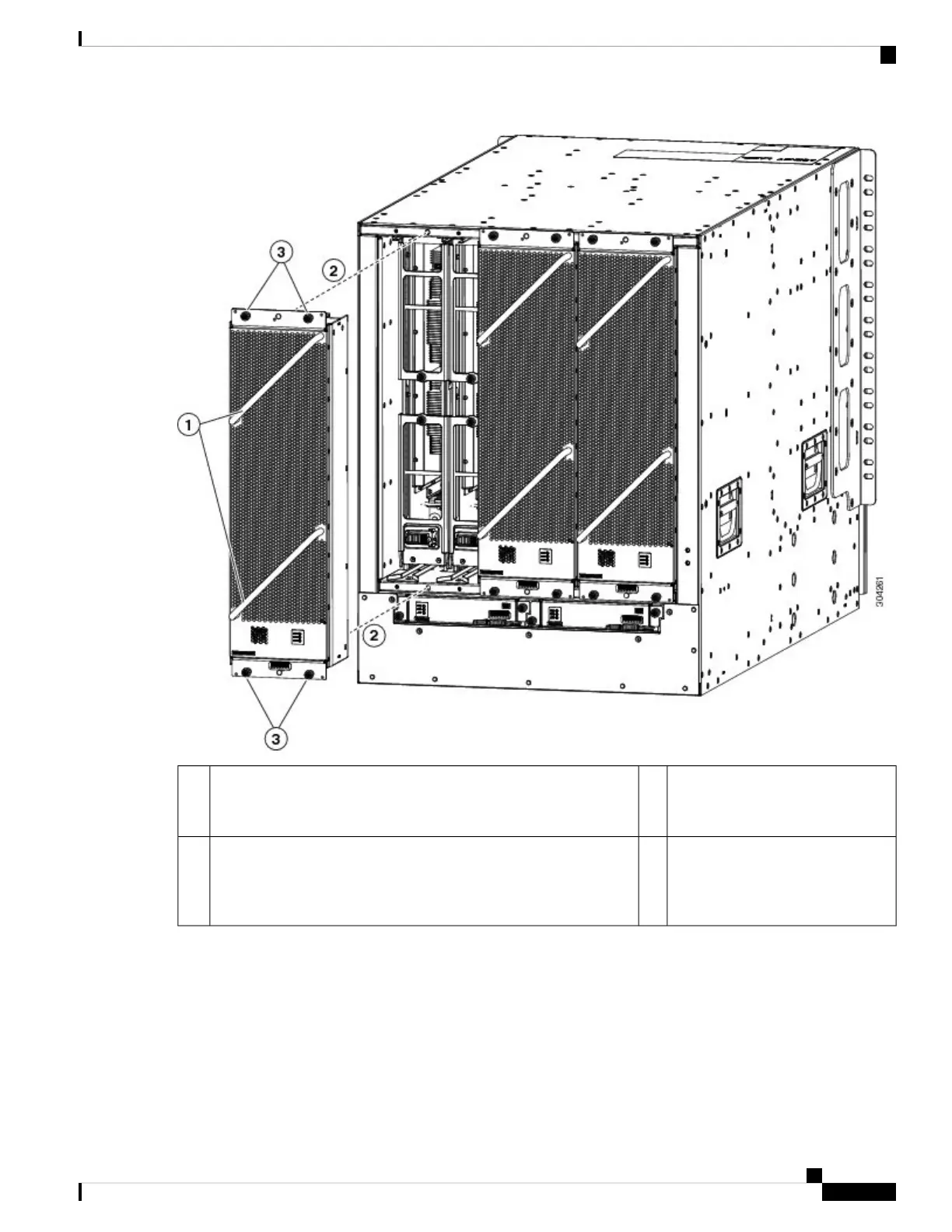

3Hold the 2 fan tray handles with both hands.1
Position the back of the fan tray to the open fan tray slot. The pins
on the top and bottom of the fan tray align to holes in the chassis.
The 2 sets of rails on the top of the fan tray align to 2 sets of tracks
on the top of the open slot. Slide the fan tray all the way into the slot.
2
b) Position the fan tray with its rear (the side with the electrical connectors) at the opening for the fan tray slot in the
chassis.
c) Align the two tracks on the top of the fan tray with the two sets of rails at the top of the open fan tray slot in the
chassis.
d) Slide the fan tray all the way into the slot until the front of the fan tray touches the chassis.
Make sure that the four captive screws on the front of the fan tray align with the four screw holes in the chassis.
e) Screw in the four captive screws to secure the fan tray to the chassis. Tighten the screws to 8 in-lb (0.9 N·m) of torque.
