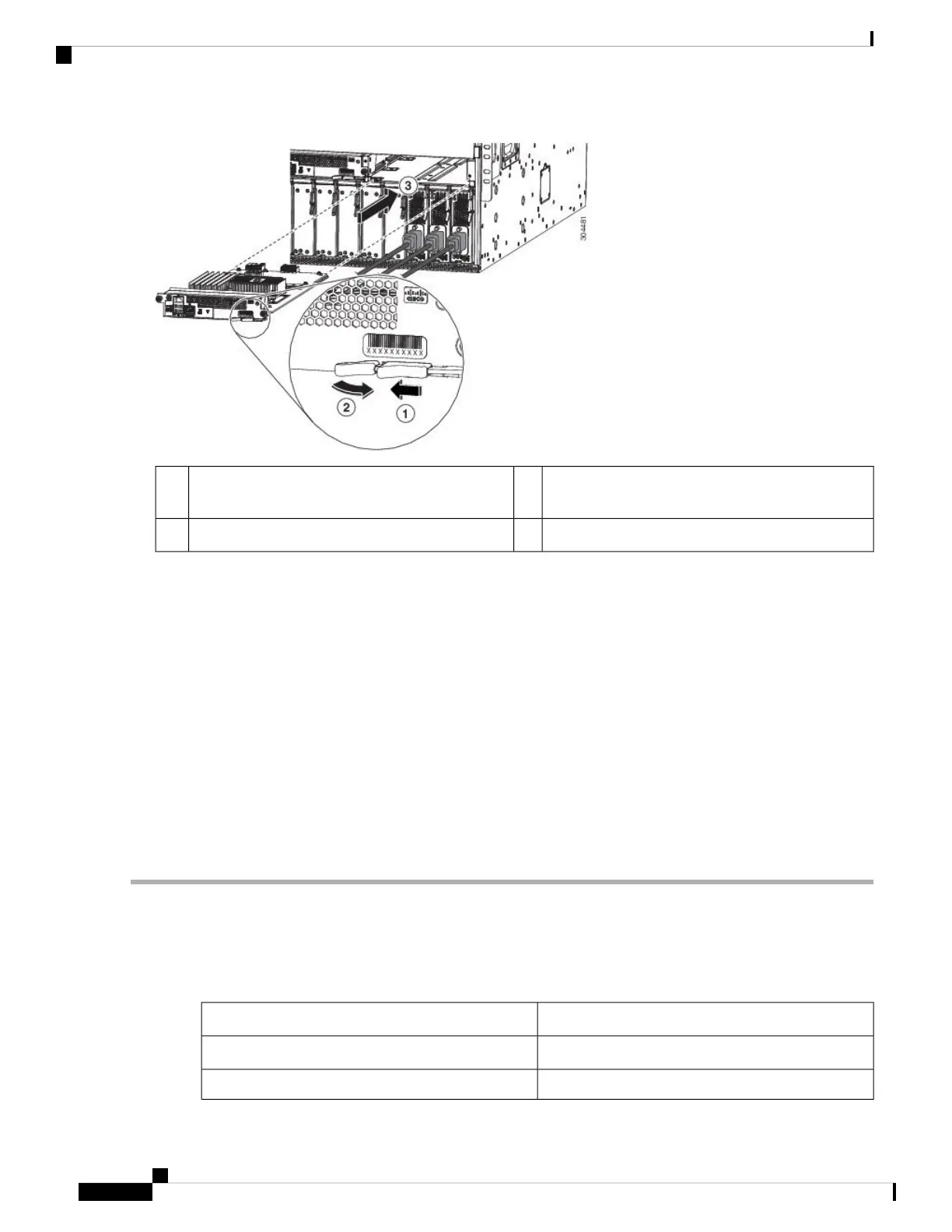

Slide the back end of the module into the open
supervisor slot.
3Slide the middle handle toward the end of the ejector
lever.
1
Rotate the ejector lever away from the module.2
d) Rotate the lever all the way to the front of the chassis until it locks in place with a click.
Make sure that the lever engages behind the front of the slot so that the module fully seats onto the connectors on the
midplane.
e) Screw in the two captive screws to secure the module to the chassis. Tighten the screws to 8 in-lb (0.9 N·m) of torque.
f) Attach the following cables to the module:
• Console cable—Attach to the Console port.
• Management cable—Attach to the Management Ethernet port.
g) Verify that the supervisor module LEDs turn on and appear as follows:
• The Status (STS) LED is green.
• The Active (ACT) LED is amber or green.
Upgrading a Supervisor Module
You can upgrade supervisor modules by using the hot swap method. The upgrade path for your active supervisor
module can be found in the following table:
Allowed UpgradeActive Supervisor
Supervisor A+Supervisor A
Supervisor B+Supervisor A
Cisco Nexus 9508 NX-OS Mode Switch Hardware Installation Guide
78
Replacing or Installing Modules, Fan Trays, and Power Supplies
Upgrading a Supervisor Module
