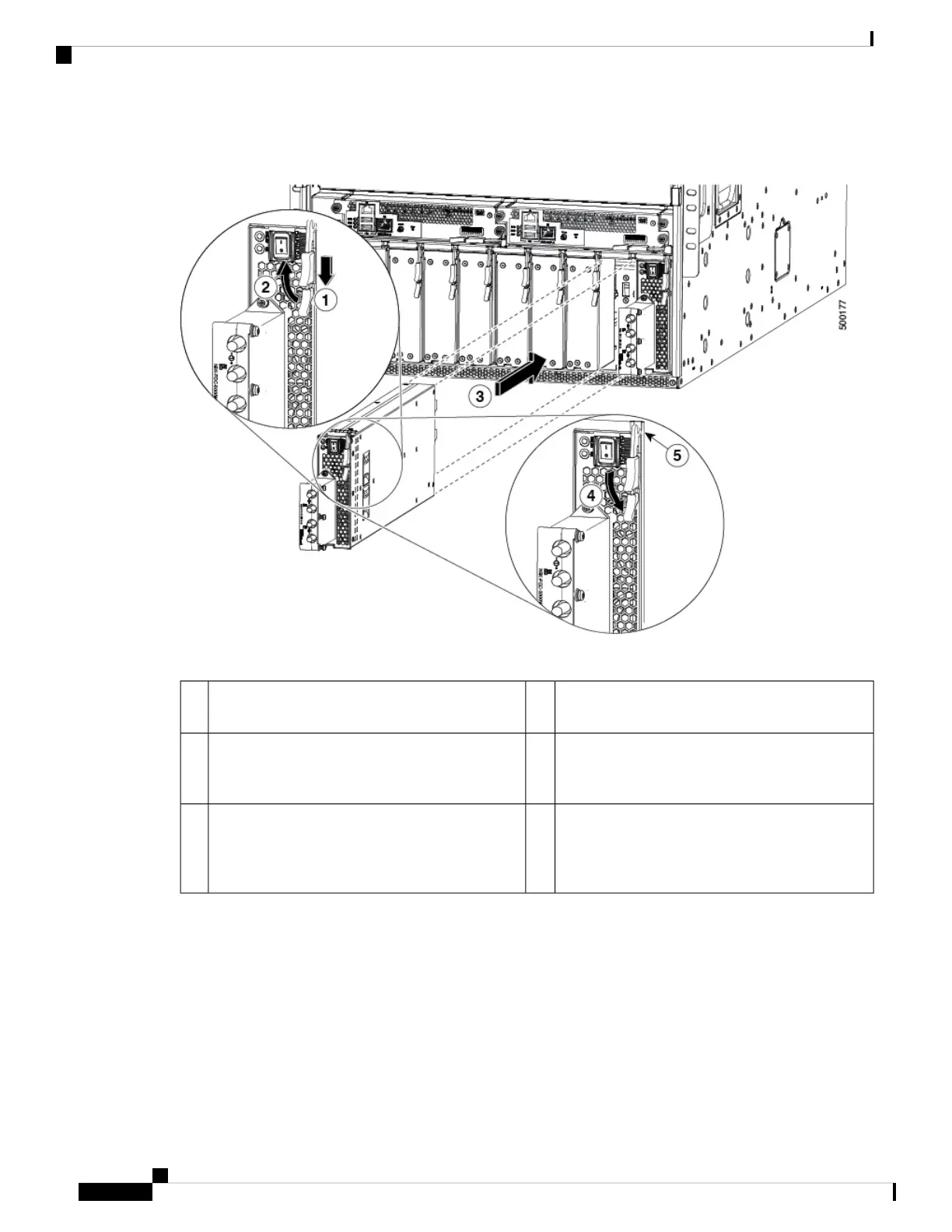

3. Slide the handle on the middle of the release lever toward the end of the lever and rotate the lever away from the
front of the power supply. Push the power supply all the way into the slot. See the following figure.
Rotate the lever toward the front of the module.4Slide and hold the middle handle next to the outer
handle.
1
Make sure that the other end of the lever grabs the
front of the chassis to push the module onto the
connectors inside the slot.
5Fully rotate the release lever away from the front
of the module.
2
Slide the power supply into the open power supply
slot in the chassis until it stops. The front of the
module is 0.25 inches (0.6 cm) in front of the
chassis.
3
4. Slide the power supply gently into the slot until it stops with the front of the module even with the front of the
chassis.
If the face of the module is about 0.25 inches (0.6 cm) in front of the module, slide the middle handle on the
release lever toward the end of the lever and rotate the lever away from the power supply module. Then gently
push the module all the way into the slot.
5. Rotate the ejector lever toward the front of the power supply and be sure that the other end of the lever locks into
the chassis.
Cisco Nexus 9508 NX-OS Mode Switch Hardware Installation Guide
106
Replacing or Installing Modules, Fan Trays, and Power Supplies
Installing or Replacing a 3-kW DC Power Supply
