Cisco ONS 15454 DWDM Manual

1-26
Cisco ONS 15454 DWDM Troubleshooting Guide, R7.0.1
78-17742-02
Chapter 1 General Troubleshooting
1.3.5 Performance Monitoring Counters and Threshold Crossing Alerts

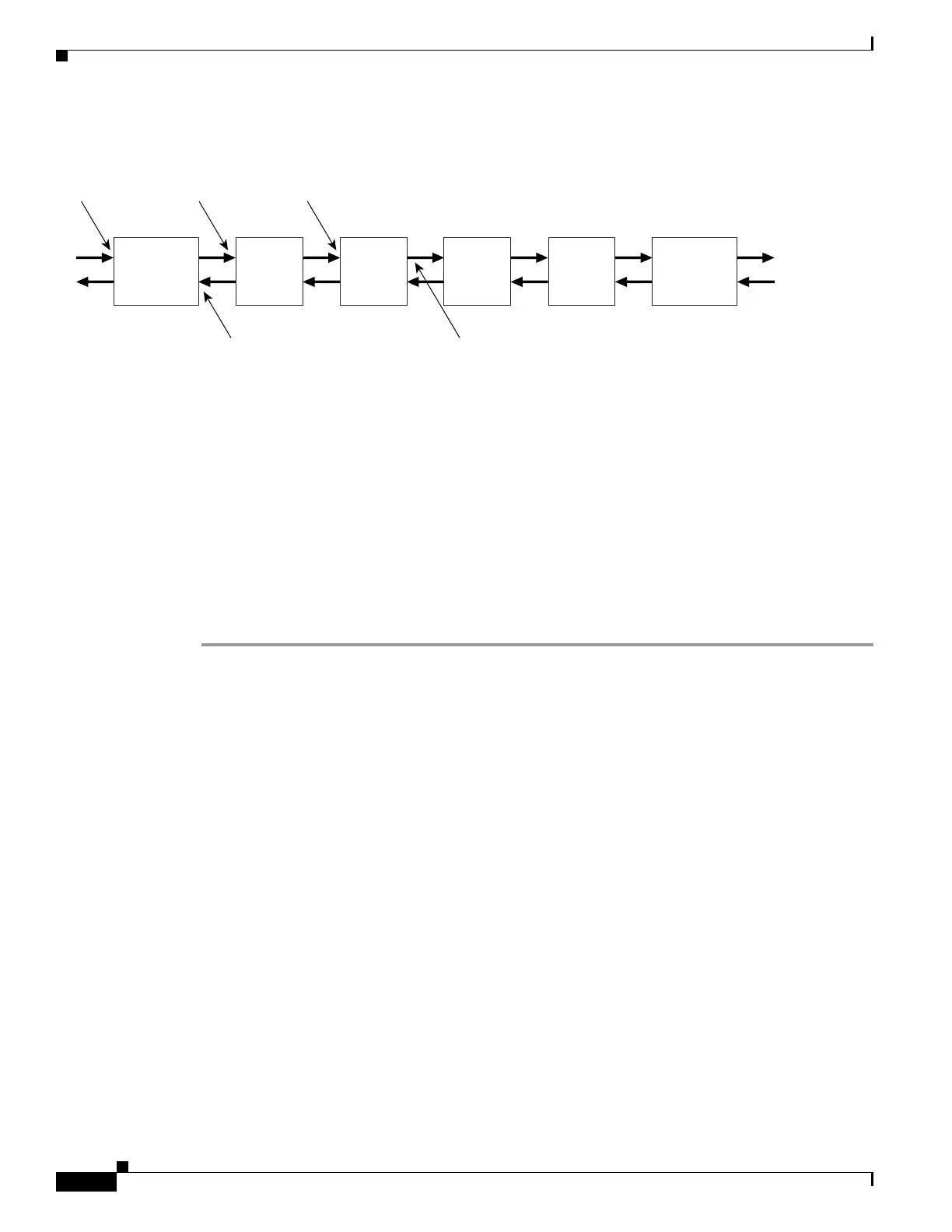

Figure 1-10 Performance Monitoring Points on ONS DWDM
TCAs are used to monitor performance through the management interface by indicating whether preset
thresholds have been crossed, or whether a transmission (such as a laser transmission) is degraded. TCAs
are not associated with severity levels. They are usually associated with rate, counter, and percentage
parameters that are available at transponder monitoring points. The “Performance Monitoring” chapter
in the Cisco ONS 15454 DWDM Reference Manual contains more information about these alerts.
Select and complete the following procedures according to your network parameters.
Set Node Default BBE or SES Card Thresholds
Complete the following procedure to provision default node ODUk BBE and SES PM thresholds for
TXP cards.
Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Defaults
tabs (Figure 1-11).
124068
Client
dependent PM
Optical PM at
OCH network
connection
Optical PM at
OMS network
connection
Trunk
ITU-TFEC
based PM
Transponder
AD-xC/
4MD/
32MUX/
32DMX
OPT-BST/
OSC-CSM
Transponder
AD-xC/
4MD/
32MUX/
32DMX
OPT-BST/
OSC-CSM
Optical PM at
OTS connection

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
