Cisco ONS 15454 DWDM Manual

1-80
Cisco ONS 15454 DWDM Troubleshooting Guide, R7.0.1
78-17742-02
Chapter 1 General Troubleshooting
1.12.3 OCHNC Circuits Creation Failure

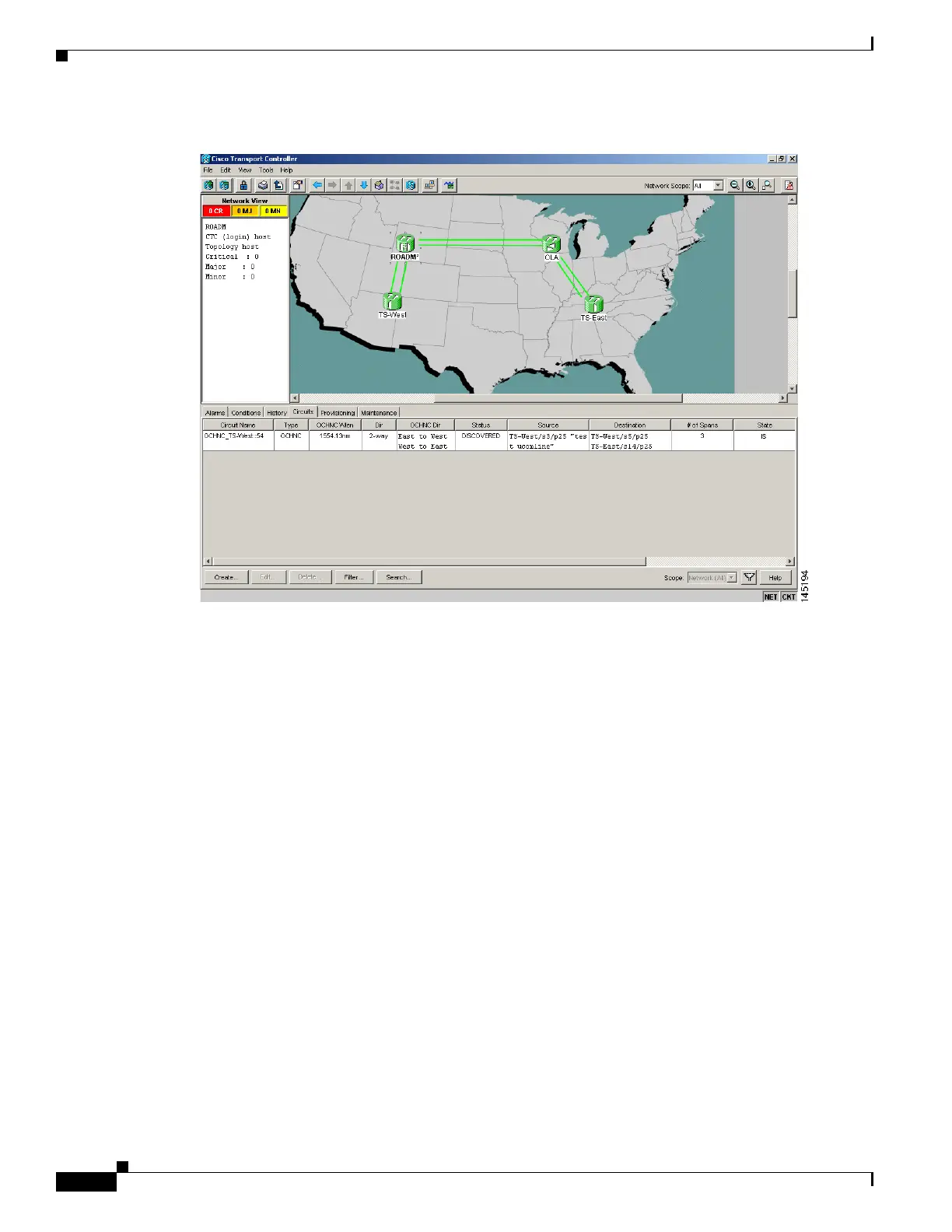

Figure 1-29 OCHNC Circuit Successfully Completed
1.12.3.2 Conditions for OCHNC Circuit Creation Failure
If the OCHNC circuit creation fails, you will see one of the following conditions:
• If the WPP wizard cannot complete the circuit creation procedure, CTC displays the error message
shown in Figure 1-30. In the message, click Details to see the partial connections that WPP can set
up. Start troubleshooting the problem in the first node that is unreachable along the path.

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
