Cisco ONS 15454 DWDM Troubleshooting Guide, R7.0.1

78-17742-02

Chapter 1 General Troubleshooting

1.3.5 Performance Monitoring Counters and Threshold Crossing Alerts

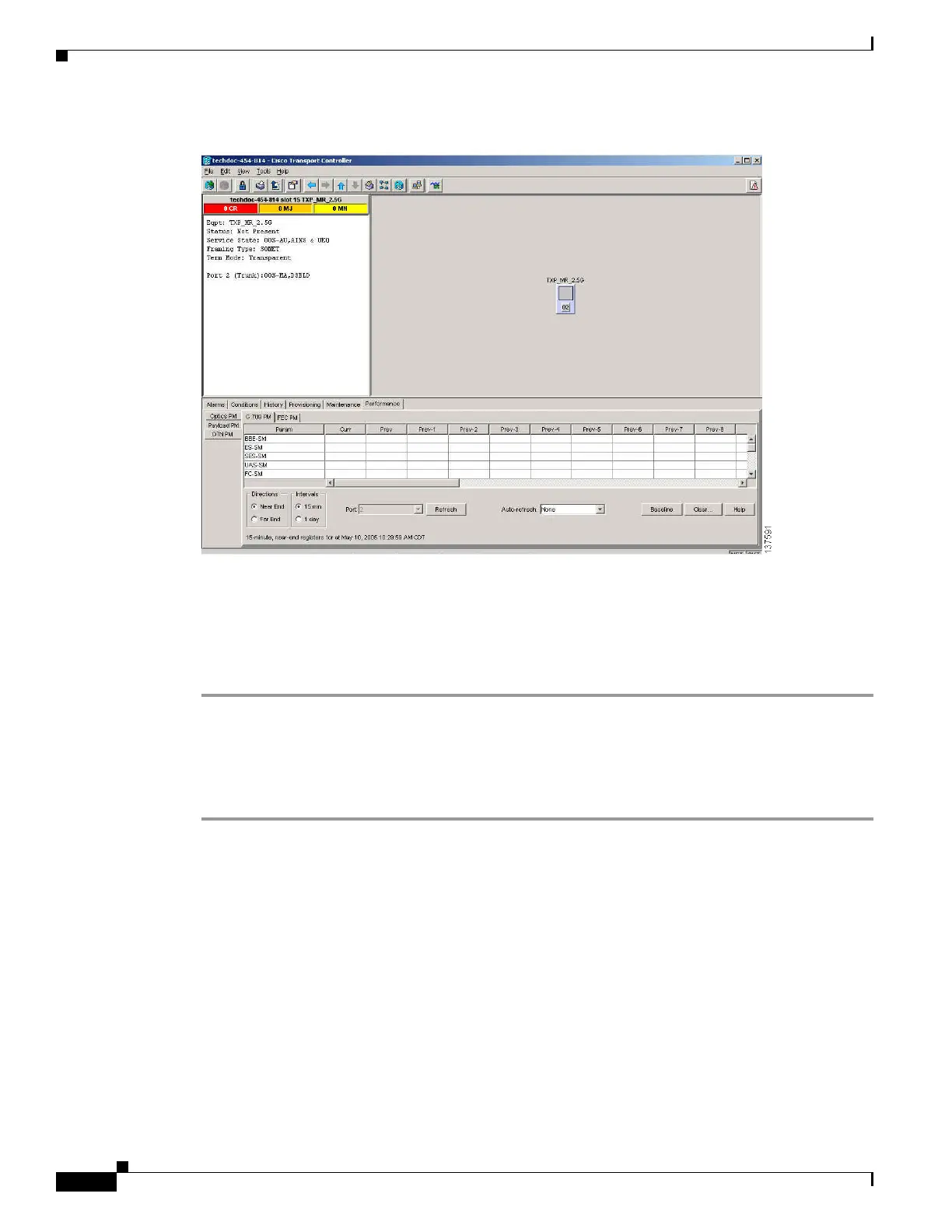

Figure 1-12 Provision Card BBE/SES Thresholds

Step 3

In the Directions area, click the Near End radio button.

Step 4 In the Intervals area, click the 15 Min radio button.

Step 5 In the Types area, click the PM (ODUk) radio button.

Step 6 In the SES and BBE fields, enter threshold numbers, for example 500 and 10000.

Provision Card PM Thresholds Using TL1

Complete the following procedure if you wish to provision PM thresholds in TL1 rather than in CTC.

Step 1 Open a TL1 command line (click Tools > Open TL1 Connection).

Step 2 In the TL1 command line, enter a command using the following syntax:

SET-TH-OCH:[<TID>]:<AID>:<CTAG>::<MONTYPE>,<THLEV>,[<LOCN>],,[<TMPER>];

where:

• Access Identifier (AID) identifies the NE to which the command pertains. All the STS, VT1, facility,

and DS1 AIDs are supported.

• The parameter MONTYPE is the monitored type.

• The parameter THLEV is optional and indicates a threshold count value (the number of errors that

must be exceeded before the threshold is crossed).

• The parameter LOCN specifies the location associated with the particular command.

• The parameter TMPER is optional and is an accumulation time period for performance counters,

with possible values of 1-DAY, 1-HR, 1-MIN, 15-MIN, and RAW-DATA.
