The management and console ports are in a 2 x 2 stacked RJ-45 jack.

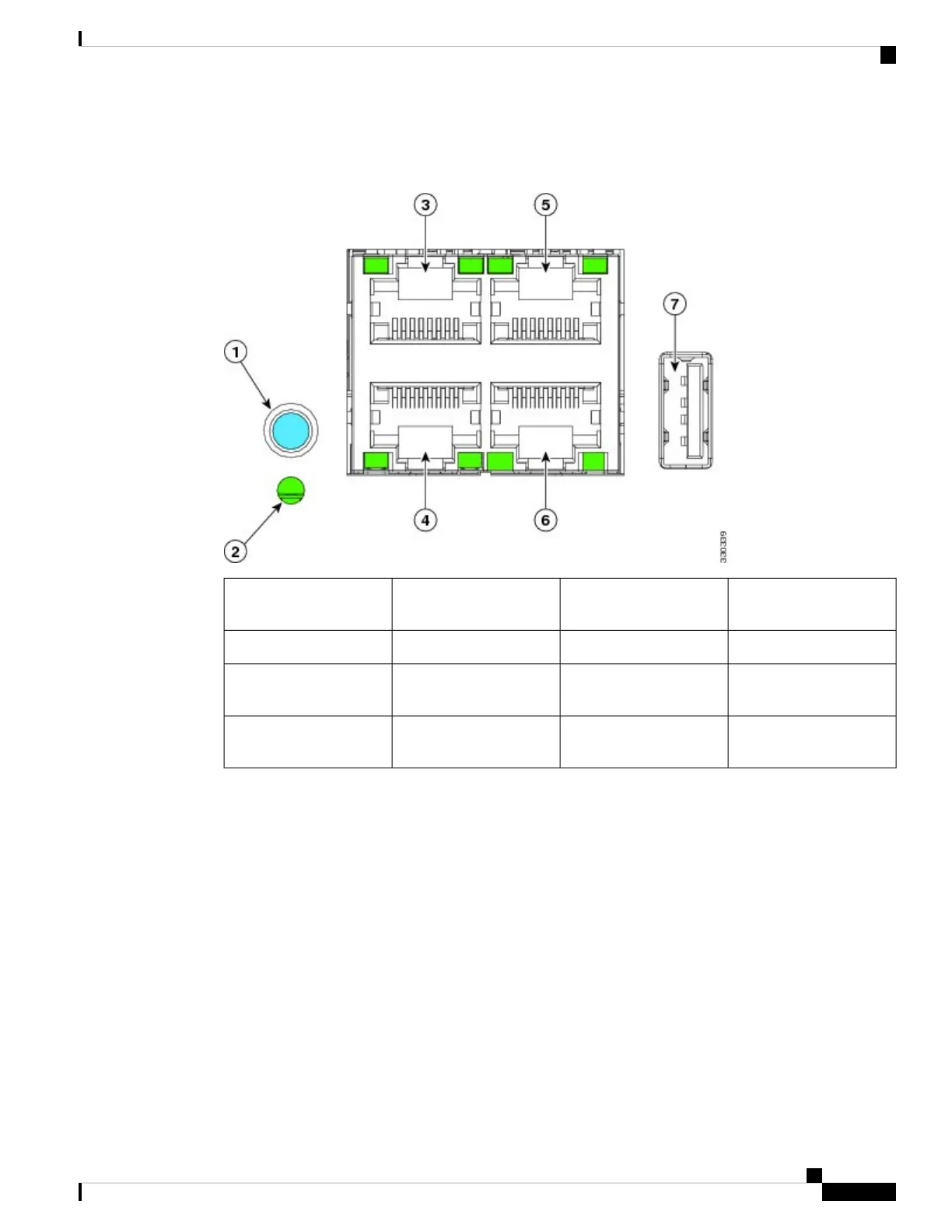

Figure 6: Management and Console Ports Closeup
Network management
port
5Beaconing LED/button1
Console port6System Status LED2
USB port7UCS cross connect port
L1
3
UCS cross connect port
L2
4
The rear of the Cisco UCS 6296 UP chassis has 48 fixed 10-Gigabit Ethernet data ports on the bottom and
three slots for optional expansion modules on top.
Cisco UCS 6200 Series Fabric Interconnect Hardware Installation Guide
5OL-24475-03
Product Overview
Cisco UCS 6296 UP Fabric Interconnect Chassis
