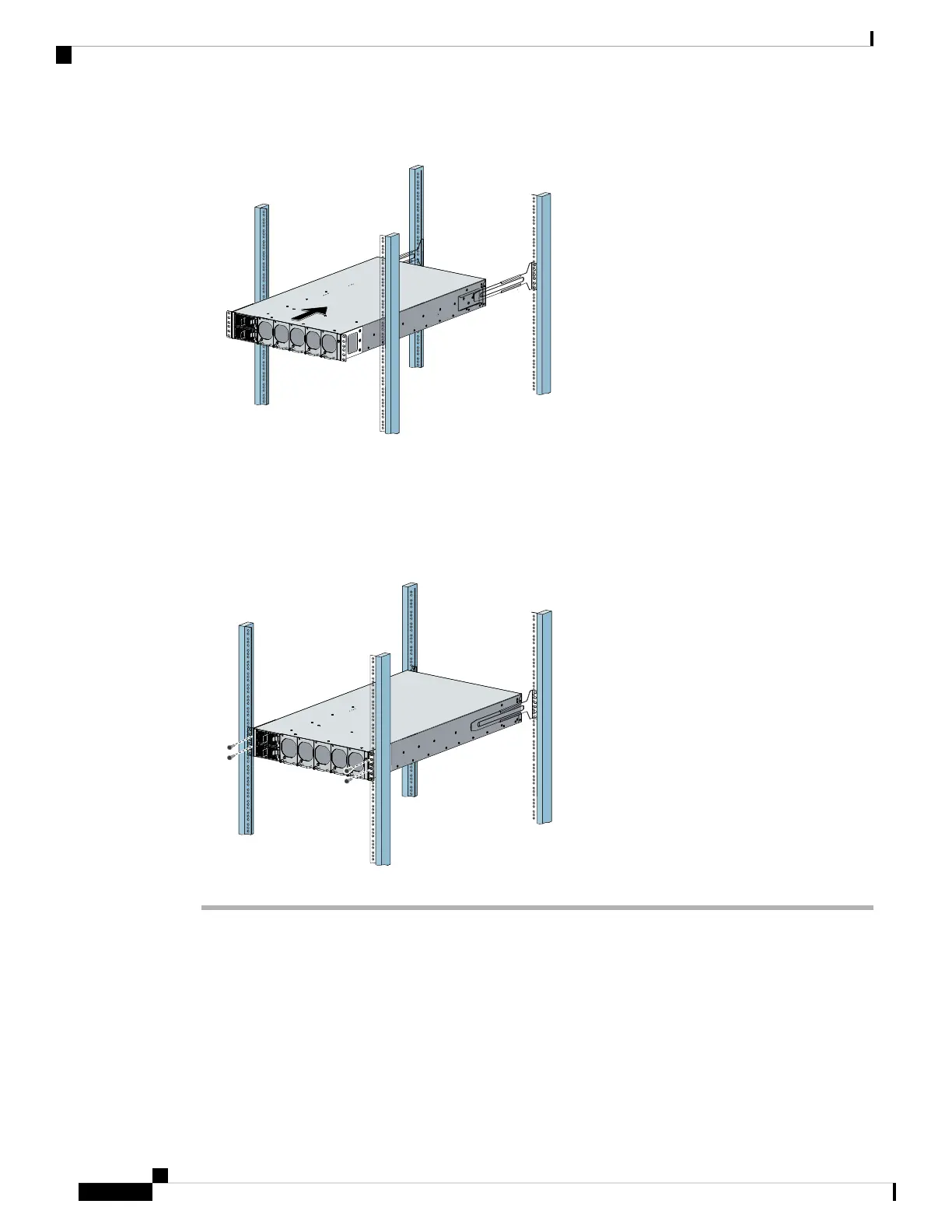

Figure 21: Sliding the Chassis Into the Rack
Step 5 Stabilize the chassis in the rack by attaching the front rack-mount brackets to the front rack-mounting rails:
a) Insert 2 screws (12-24 or 10-32, depending on rack type) through the cage nuts and the holes in one of
the front rack-mount brackets and into the threaded holes in the rack-mounting rail.
b) Repeat for the front rack-mount bracket on the other side of the chassis.
Figure 22: Attaching the Switch to the Rack
Proper Grounding Practices
Grounding is one of the most important parts of equipment installation. Proper grounding practices ensure
that the buildings and the installed equipment within them have low-impedance connections and low-voltage
differentials between chassis. When you properly ground systems during installation, you reduce or prevent
shock hazards, equipment damage due to transients, and data corruption.
