Slider rail3Rack-mount
guides
2Front
rack-mount
bracket
1
Step 2 Install the rack-mount guides on the chassis as follows:
a) Position one of the rack-mount brackets against the side of the chassis and align the screw holes.
b) Attach the bracket to the chassis with two of the flat-head M4 screws.
c) Repeat with the other rack-mount bracket on the other side of the chassis.
Step 3 Attach the slider rails to the rack. Use 2 12-24 screws or 2 10-32 screws, depending on the rack rail thread
type. For racks with square holes, insert the 12-24 cage nuts in position behind the mounting holes in the
slider rails.
a) Repeat with the other slider rail on the other side of the rack.
b) Use the tape measure and level to verify that the rails are horizontal and at the same height.

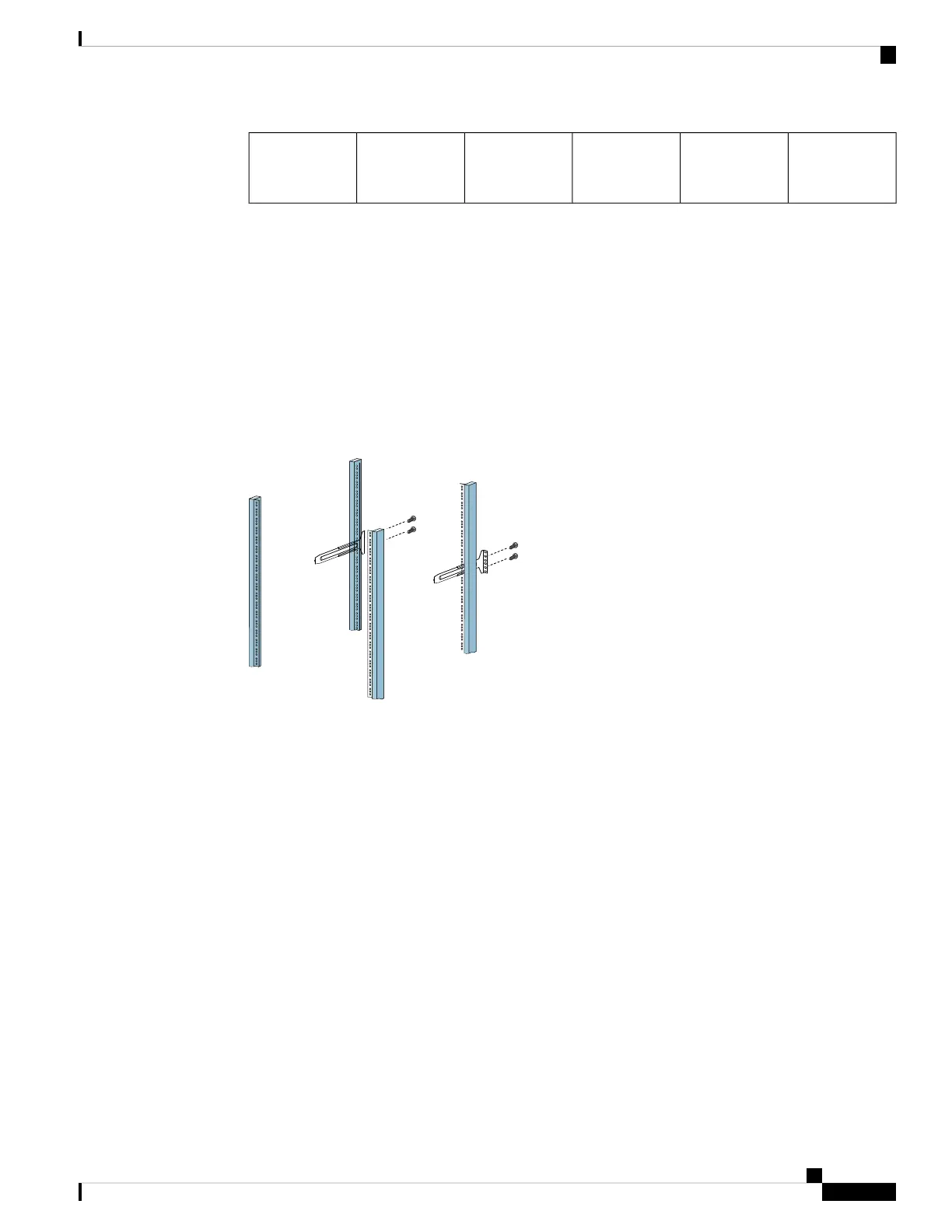

Figure 20: Installing the Slider Rails
Step 4 Insert the chassis into the rack:
a) Using both hands, position the chassis with the back of the chassis between the front posts of the rack.
b) Align the two rack-mount guides on either side of the chassis with the slider rails installed in the rack.
Slide the rack-mount glides onto the slider rails, and then gently slide the chassis all the way into the rack.
If the chassis does not slide easily, try realigning the rack-mount glides on the slider rails.
Cisco UCS 6200 Series Fabric Interconnect Hardware Installation Guide
29OL-24475-03
Installing the Cisco UCS 6200 Series Fabric Interconnect
Installing the Cisco UCS 6296 Chassis in a Cabinet or Rack
