Step 5 Holding the handle for the left fan module, pull the management daughter card (which houses the fan module)
part way out of the chassis (see Callout 2 above).
Step 6 Place your other hand under the management daughter card to support its weight, and fully remove the assembly
from the chassis (see Callout 1 below).

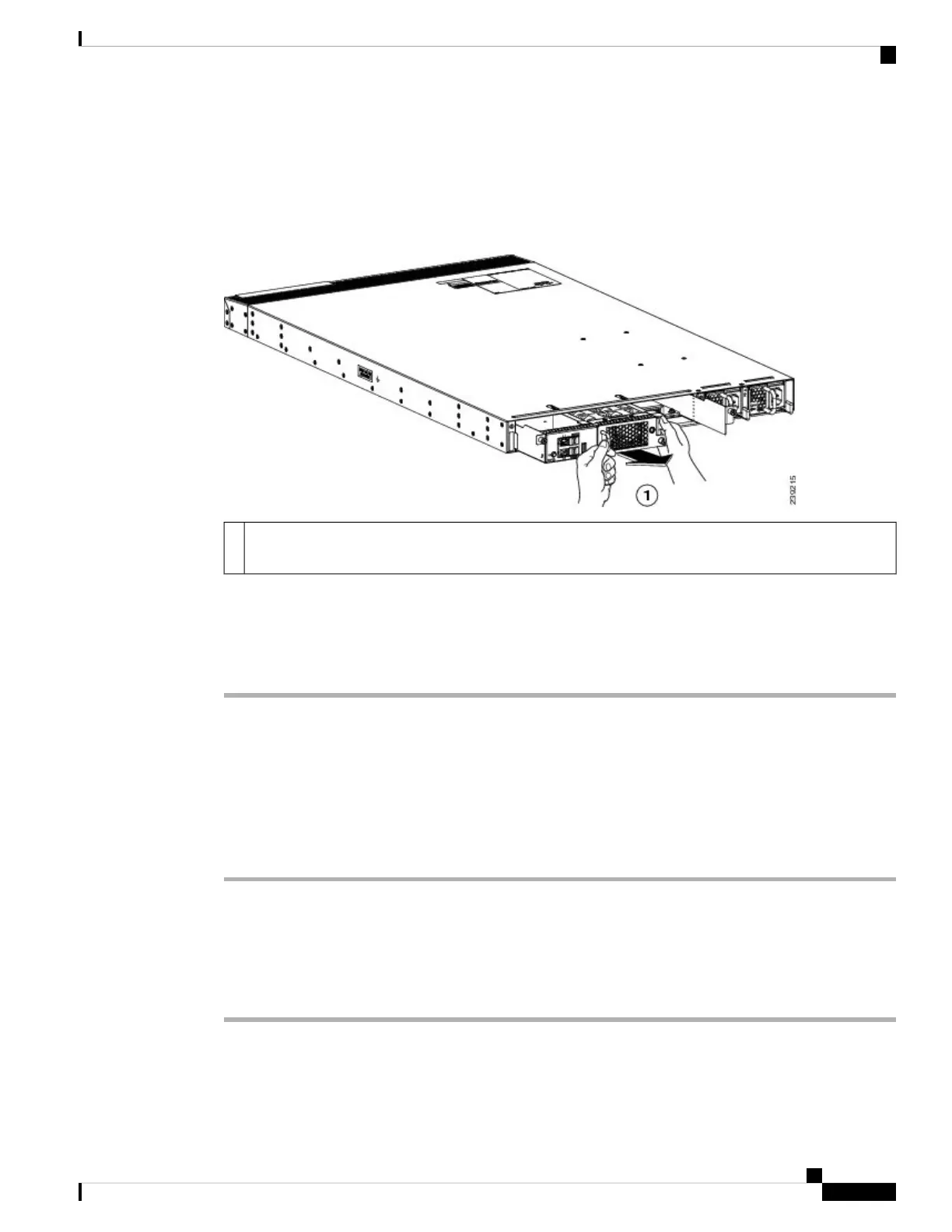

Figure 28: Removing the Management Daughter Card from the Chassis
Pull the handle on the left fan module to completely remove the management daughter card from the
chassis.
1
Step 7 Place the removed management daughter card on the antistatic surface.
Step 8 On the remaining fan tray in the management daughter card, loosen its captive screw so that it is no longer
attached to the management daughter card.
Step 9 Pull the fan tray out of the management daughter card.
What to do next
You are now ready to install a replacement management daughter card.
Installing a Management Daughter Card
Procedure
Step 1 Align the replacement management daughter card to the management daughter card slot in the chassis and
push it in all the way into the slot so that its two captive screws are aligned to their holes in the chassis.
Step 2 Tighten both captive screws to the chassis.
Step 3 Install both fan modules into the replacement management daughter card. (See Replacing a Fan Module, on
page 46.)
