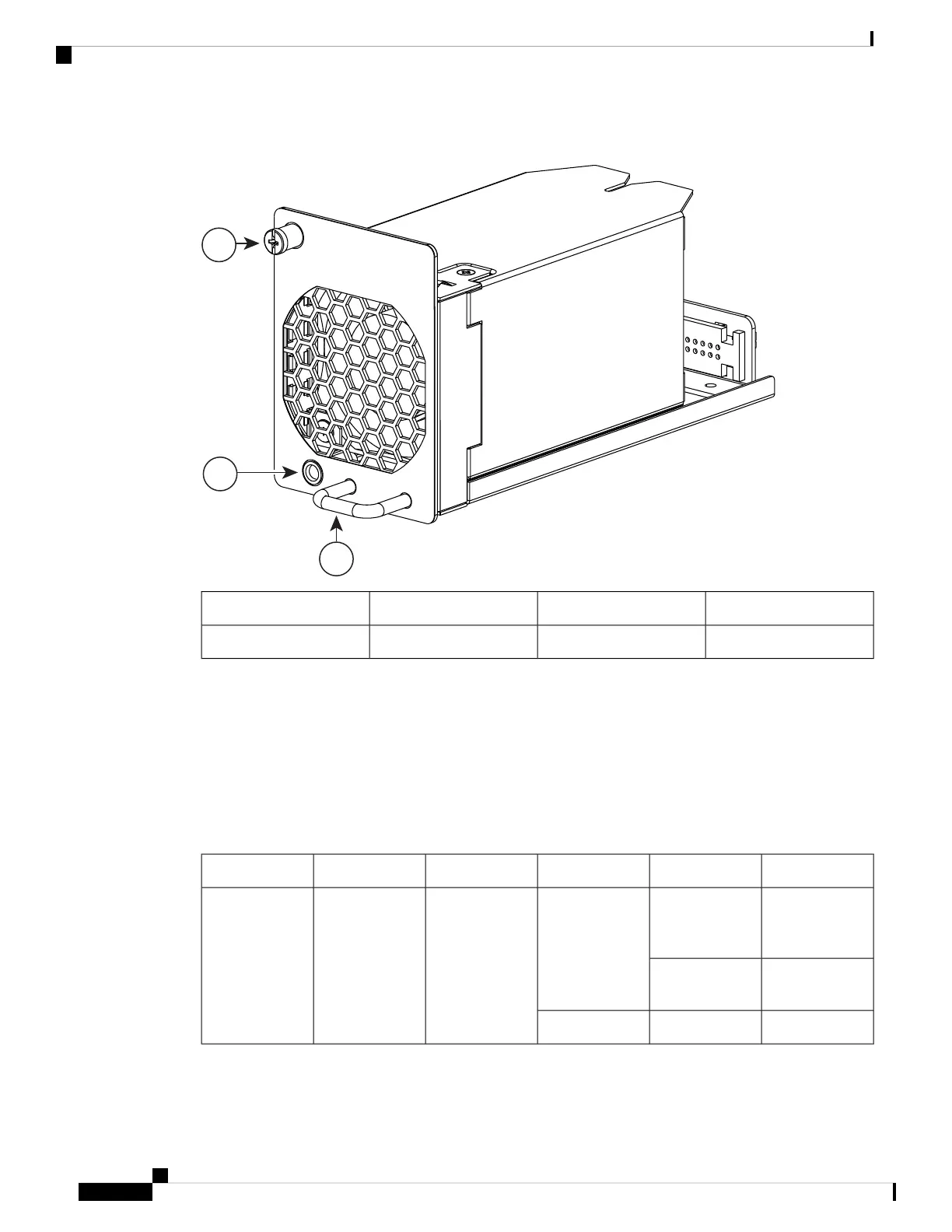

Figure 16: Cisco UCS 6296 UP Fan Module
2
1
3
239022
Handle3Captive screw1
Status LED2
The bicolor fan module LED indicates fan tray health. Green indicates normal operation, while amber indicates
a fan failure.
LED Descriptions
The fabric interconnect has three chassis status LEDs.
Table 4: LEDs for the Cisco UCS Fabric Interconnect
DescriptionStatusColorFunctionLocationLED
System is on and
operating
normally
Solid OnGreenPower/HealthFrontSystem Status
LED
Switch is
powered off
Off
Fault condition
OnAmber
Cisco UCS 6200 Series Fabric Interconnect Hardware Installation Guide
OL-24475-0312
Product Overview
LED Descriptions
