• Slots on the front of the chassis for fan modules.
• One USB port at the front of the switch.
Cisco UCS 6248 UP Fabric Interconnect Chassis
The Cisco UCS 6248 UP chassis is 1 RU, 1.72 inches tall, 17.3 inches wide and 30.0 inches deep. It mounts
in a standard 19-inch rack (the Cisco R Series rack is an ideal choice). The chassis has two power supplies
and two fan modules on the front of the chassis, and it has network ports on the rear of the chassis and has
one USB port (usb1:) at the front.
Thirty-two fixed 10-Gigabit Ethernet ports and an expansion modules slot supporting 16 ports are at the rear
of the switch. The airflow is front to back.

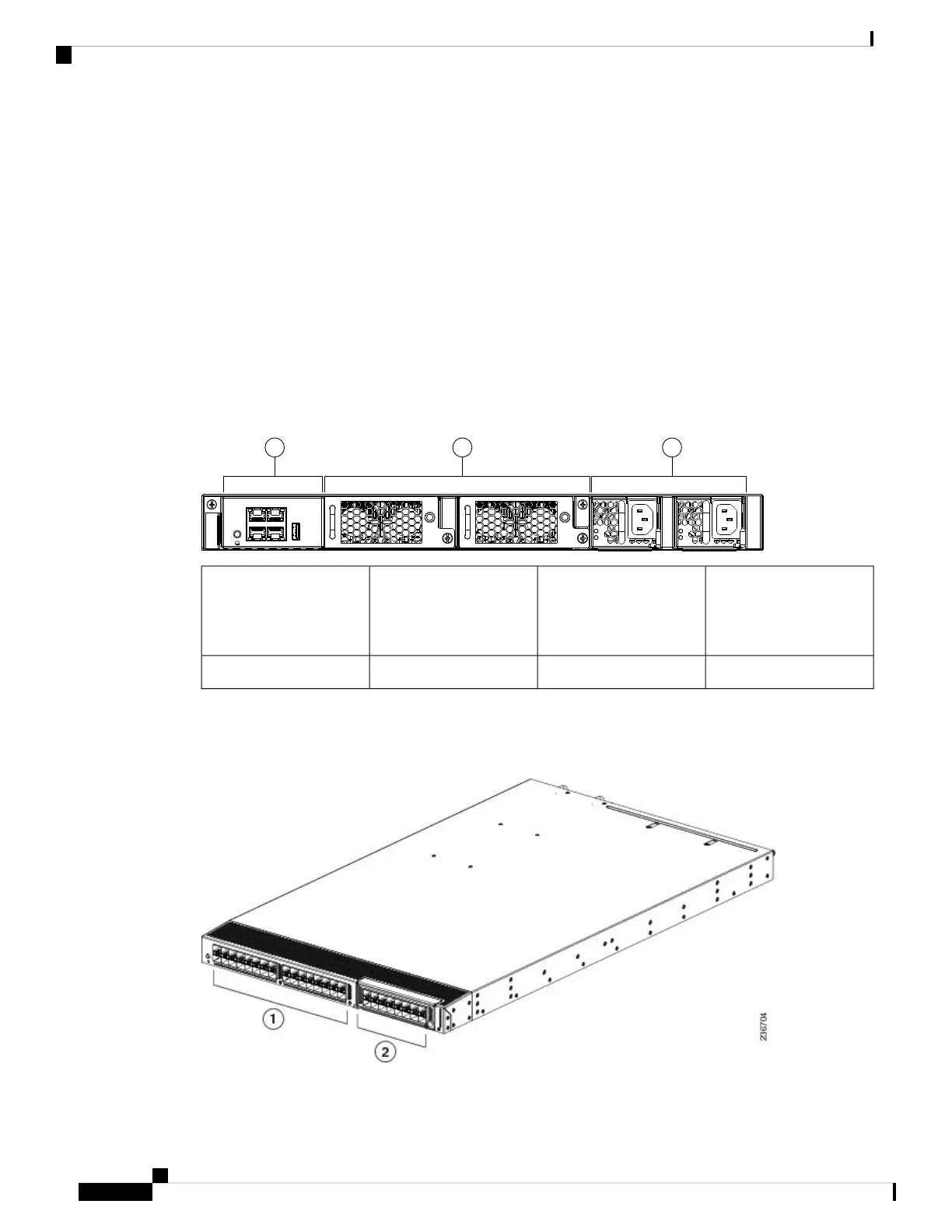

Figure 1: Cisco UCS 6248 UP Front View
236703
1 32
Two power supplies (AC
shown)
3Management
(10/100/1000) port,
console port, and USB
port
1
Two fan modules2
The rear of the Cisco UCS 6248 UP chassis has 32 fixed 10-Gigabit, Fiber Channel over Ethernet-capable
SFP+ Ethernet ports and 1 slot for an optional expansion module.
Figure 2: Cisco UCS 6248 UP Rear View
Cisco UCS 6200 Series Fabric Interconnect Hardware Installation Guide
OL-24475-032
Product Overview
Cisco UCS 6248 UP Fabric Interconnect Chassis
