Fan Module
The Cisco UCS 6248 UP fabric interconnect has slots for two fan modules (also called fan trays). Each fan
module houses four fans. The combination of four fans per module and two modules provides the chassis
with eight fans.

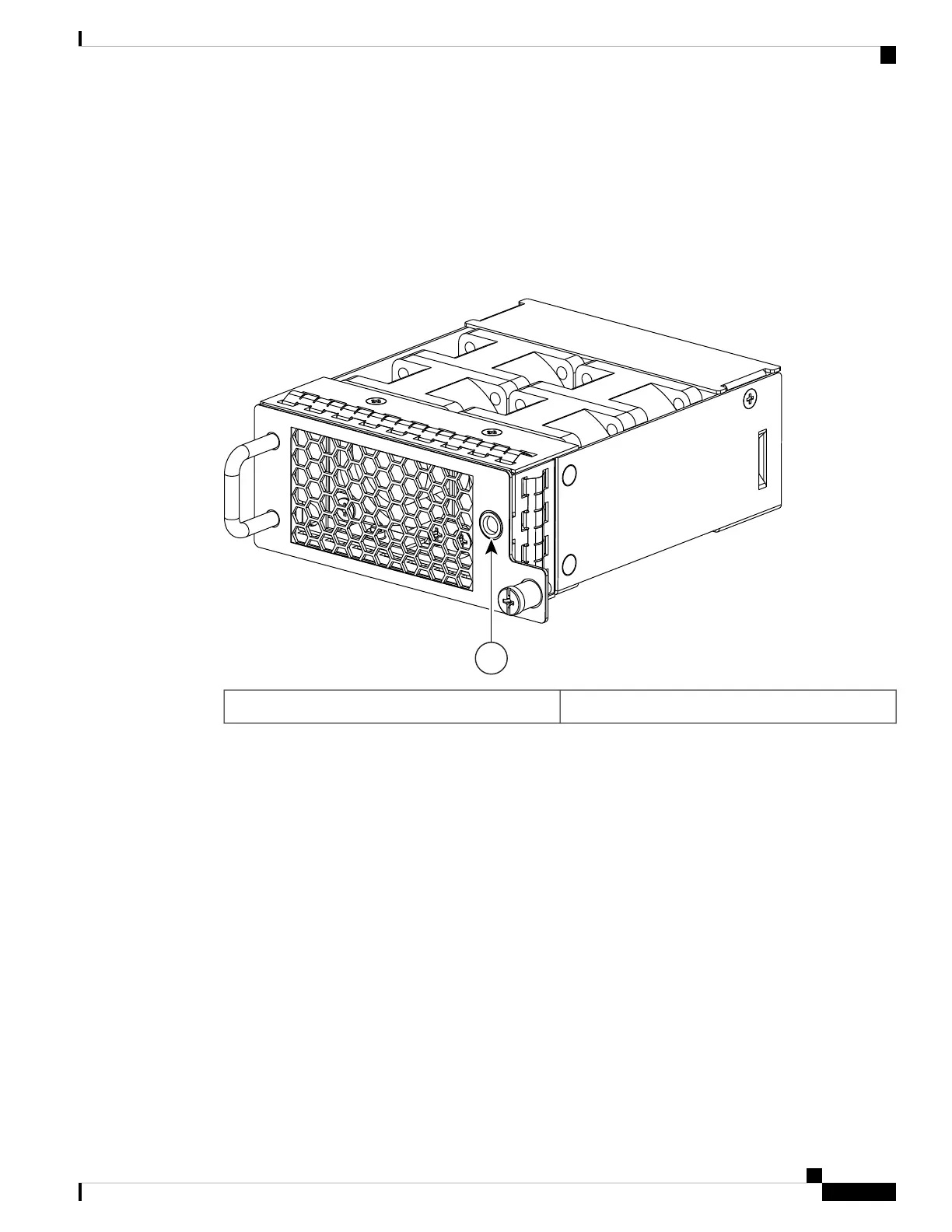

Figure 15: Cisco UCS 6248 UP Fan Module (UCS-FAN-6248UP=)
330342
1
Fan Tray Status LED1
The Cisco UCS 6296 UP switch has four fan modules with one fan each.
