Installing the Cisco UCS 6296 Chassis in a Cabinet or Rack
This section describes how to use the rack-mount kit provided with the chassis to install Cisco UCS 6296 into
a cabinet or rack that meets the requirements. All Cisco UCS 6200 Series Fabric Interconnects use the same
installation procedure.
If the rack is on wheels, ensure that the brakes are engaged or that the rack is otherwise stabilized.
Caution
This table lists the items contained in the rack-mount kit provided with the chassis.
Table 12: Cisco UCS 6296 Rack-Mount Kit
Part DescriptionQuantity
Rack-mount brackets2
M4x0.7 x 8-mm Phillips countersink screws12
Rack-mount guides2
10-32 rack nuts10
10-32 x 3/4-inch Phillips pan-head screws10
Slider rails2
Procedure
Step 1 Install the front rack-mount brackets as follows:
a) Position a front rack-mount bracket against the chassis and align the screw holes as shown below. Then
attach the front rack-mount bracket to the chassis with four M4 screws.
b) Repeat with the other front rack-mount bracket on the other side of the chassis.

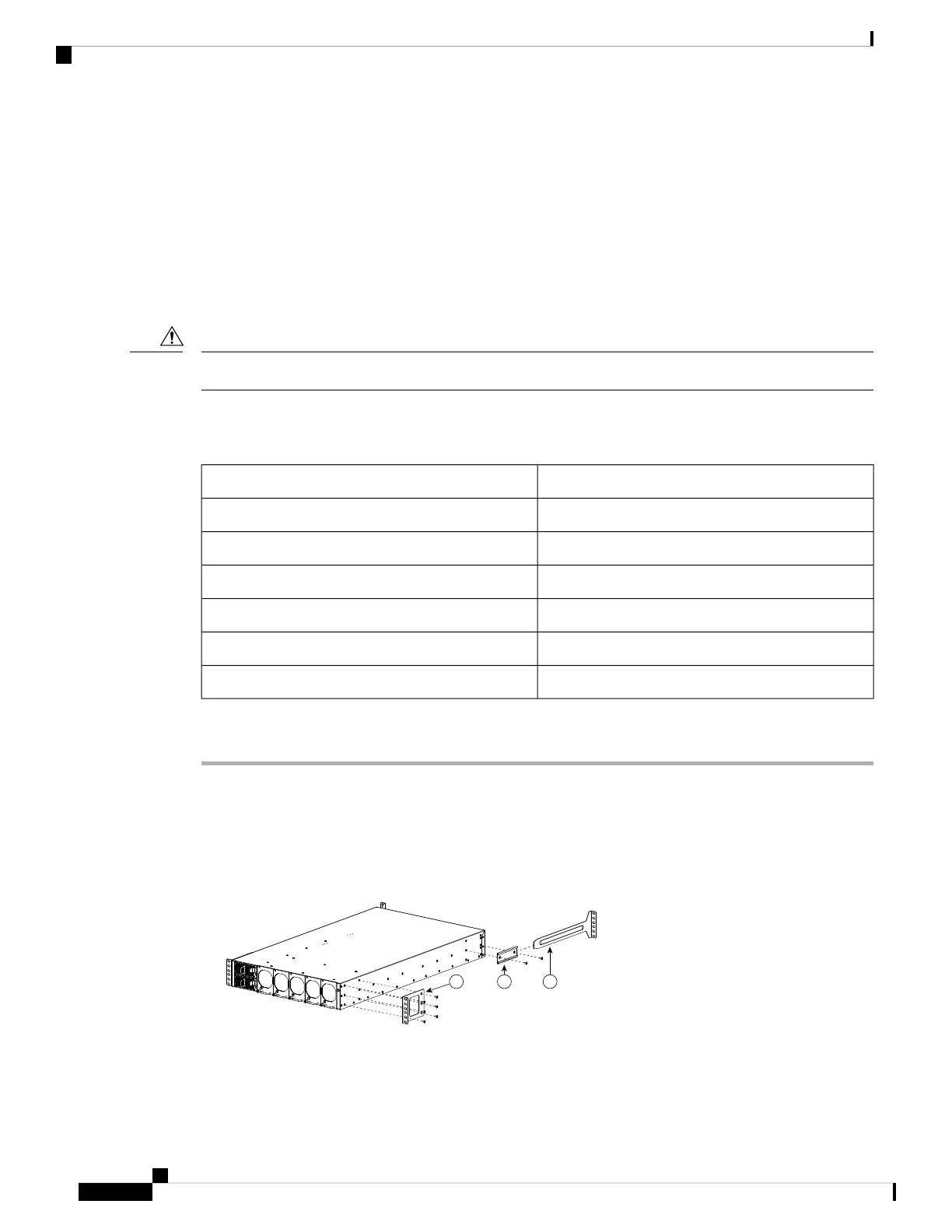

Figure 19: Attaching Front Rack-Mount Bracket to a Cisco UCS 6296
