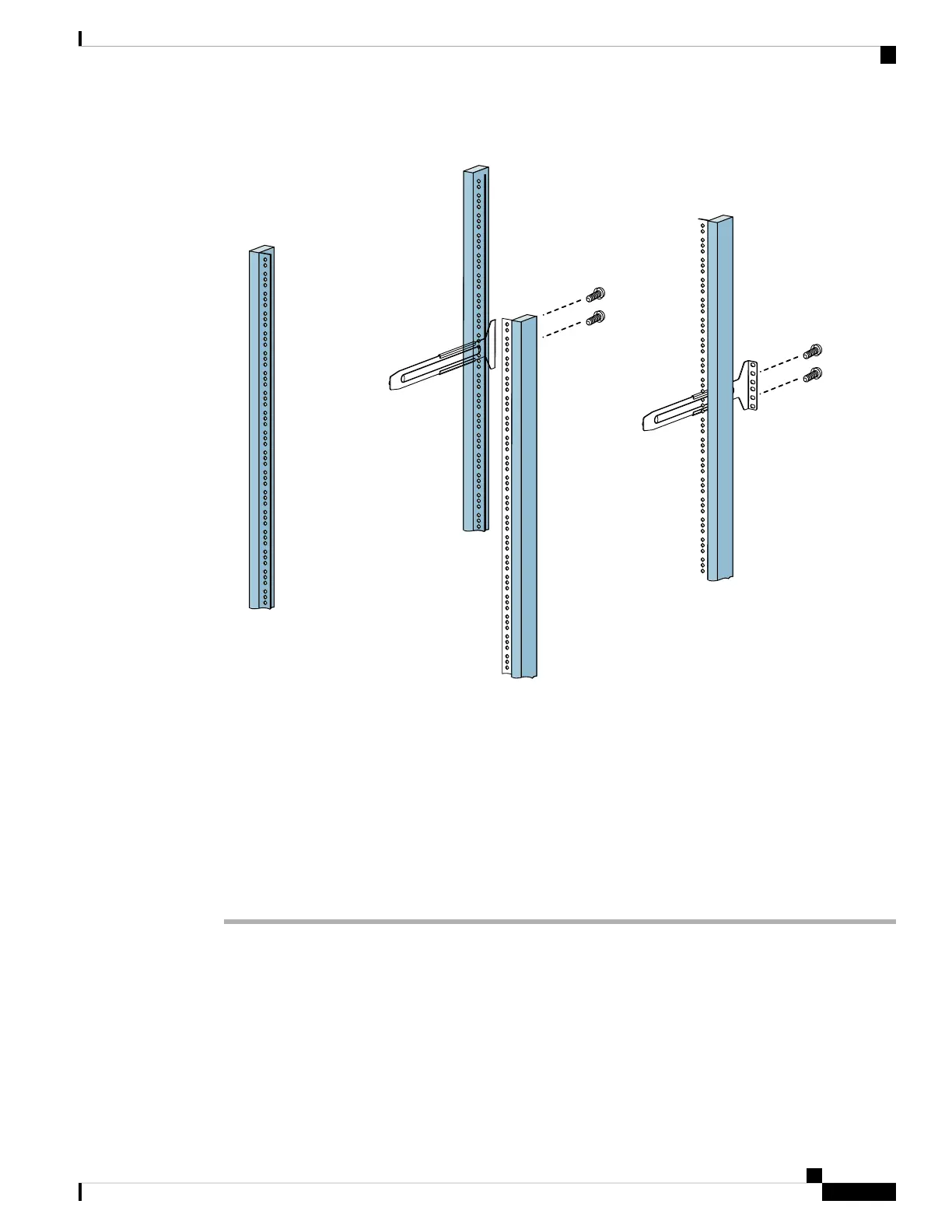

Figure 18: Installing the Slider Rails
Step 4 Insert the chassis into the rack:
a) Using both hands, position the chassis with the back of the chassis between the front posts of the rack.
b) Align the two rack-mount guides on either side of the chassis with the slider rails installed in the rack.
Slide the rack-mount glides onto the slider rails, and then gently slide the chassis all the way into the rack.
If the chassis does not slide easily, try realigning the rack-mount glides on the slider rails.
Step 5 Stabilize the chassis in the rack by attaching the front rack-mount brackets to the front rack-mounting rails:
a) Insert 2 screws (12-24 or 10-32, depending on rack type) through the cage nuts and the holes in one of
the front rack-mount brackets and into the threaded holes in the rack-mounting rail.
b) Repeat for the front rack-mount bracket on the other side of the chassis.
Cisco UCS 6200 Series Fabric Interconnect Hardware Installation Guide
27OL-24475-03
Installing the Cisco UCS 6200 Series Fabric Interconnect
Installing the Cisco UCS 6248 UP Chassis in a Cabinet or Rack
