2-11
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-03
Chapter 2 Installation
Installing the Switch in a Rack

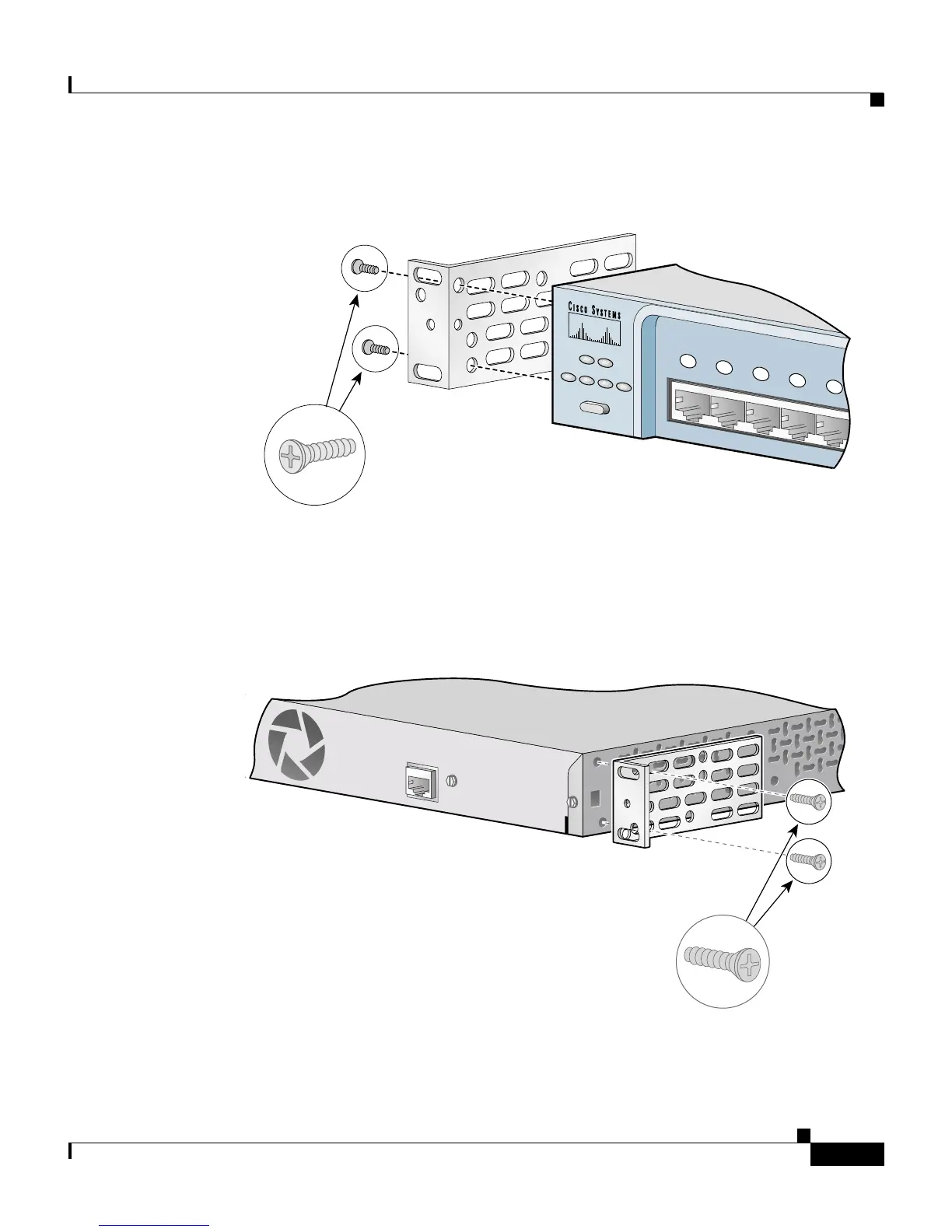

Figure 2-1 Attaching Brackets on the Switch in a 19-Inch Rack (Front Panel
Forward)
Figure 2-2 Attaching Brackets on the Switch in a 19-Inch Rack (Rear Panel
Forward)
SYST RPS
DUPLX
MODE
SPEED
UTIL
S TAT
1x 2x 3x
4x 5x
45580
Number-8
Phillips flat-head
screws
CONSOLE
Number-8
Phillips flat-head
screws
52916
