Appendix B Connectors and Cables
Cable and Adapter Specifications
B-12
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-03
Identifying a Rollover Cable
You can identify a rollover cable by comparing the two modular cable ends. Hold
the cable ends side-by-side, with the tab at the back. The wire connected to the
pin on the outside of the left plug should be the same color as the wire connected
to the pin on the outside of the right plug. (See Figure B-14.)

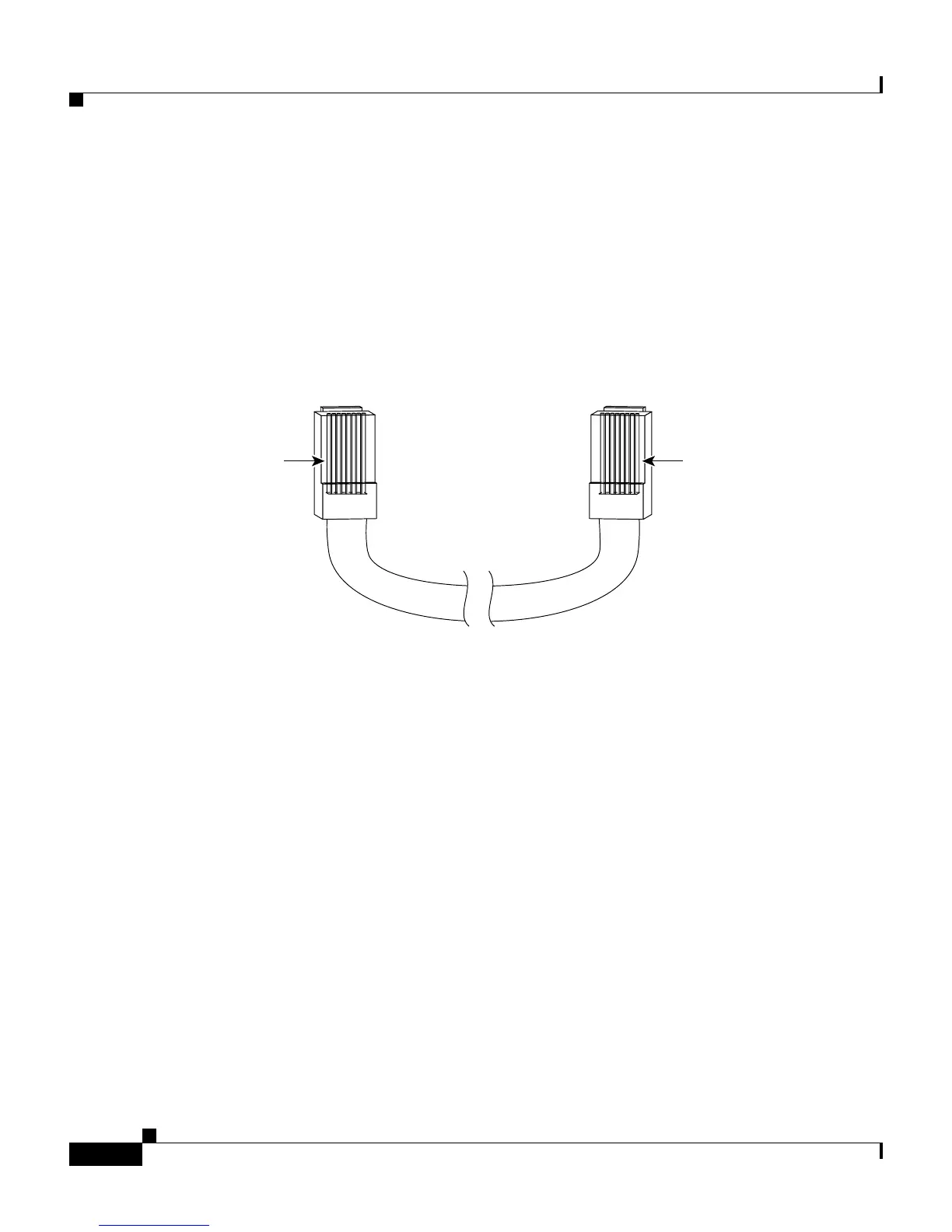

Figure B-14 Identifying a Rollover Cable
Pin 1
H10632
Pin 8
Pin 1 on one connector and
pin 8 on the other connector
should be the same color.
