Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-03
Chapter 2 Installation
Connecting to 100BASE-FX and 1000BASE-SX Ports
Connecting to 100BASE-FX and 1000BASE-SX Ports
The 100BASE-FX and 1000BASE-SX ports operate only in full-duplex mode.
You can connect a 100BASE-FX or 1000BASE-SX port to an SC or ST port on
another device by using one of the MT-RJ fiber-optic patch cables listed in
Table 2-1. Use the Cisco part numbers in Table 2-1 to order the patch cables that
you need.
Follow these steps to connect the switch to a 100BASE-FX or 1000BASE-SX
device:
Caution Do not remove the dust plugs from the fiber-optic ports or the rubber caps from
the fiber-optic cable until you are ready to connect the cable. The plugs and caps
protect the fiber-optic ports and cables from contamination and ambient light.
Step 1 Remove the dust plugs from the 100BASE-FX or 1000BASE-SX port and the
rubber caps from the MT-RJ patch cable. Store them for future use.
Step 2 Insert the cable in a 100BASE-FX or 1000BASE-SX port. (See Figure 2-34.)

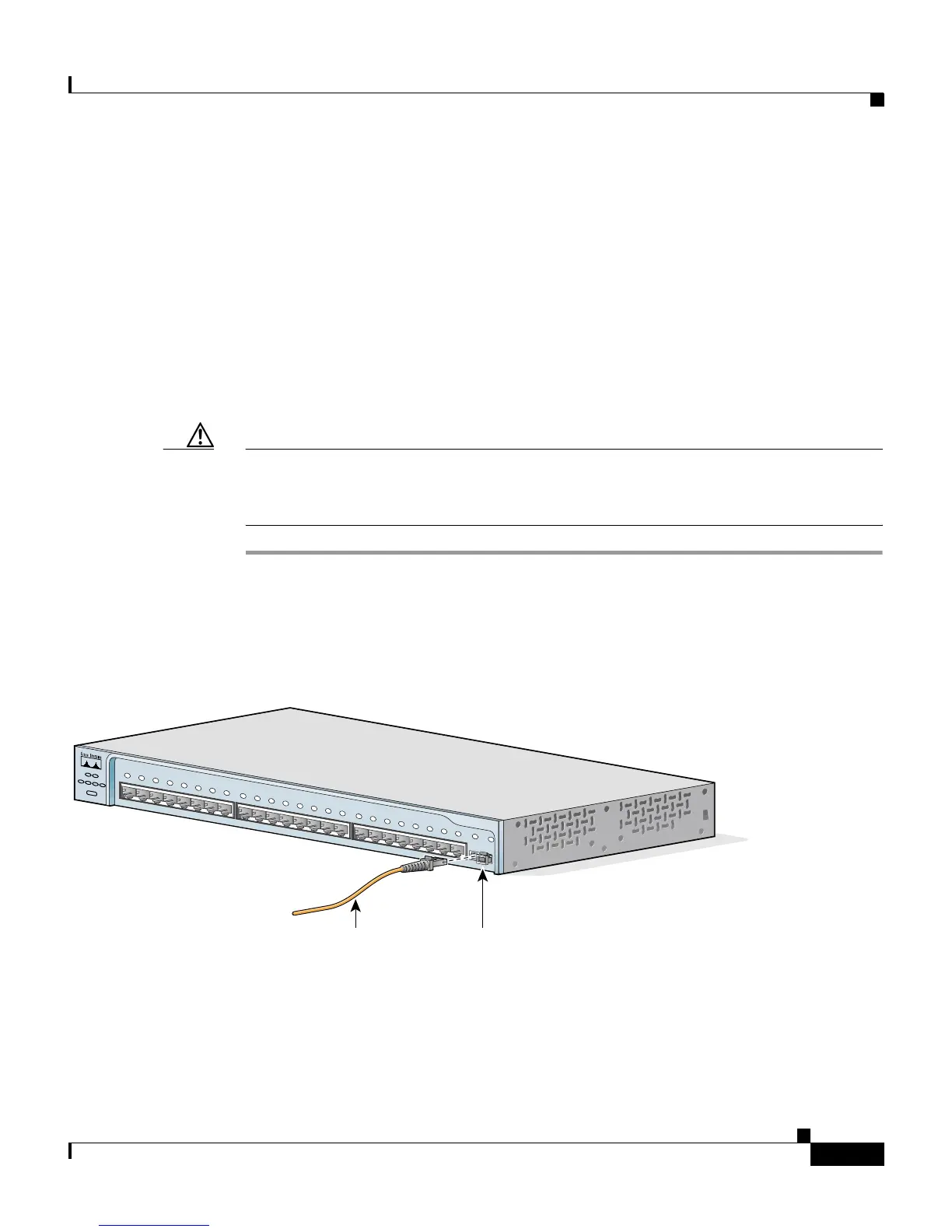

Figure 2-34 Connecting to a 100BASE-FX or 1000BASE-SX Port
45571
SY
ST
RP
S
D
U
P
LX
M
O
D
E
S
P
E
ED
U
TIL
STA
T
10Base-T / 100Base-TX
100Base-FX
Catalyst 2950
SE
RIES
MT-RJ
patch cable
Dust plug
1x
2x
3x
4x
5x
6x
7x
8x
9x
10x
11x
12x
13x
14x
15x
1
6x
17x
18x
19x
20x
21x
22
x
23x
24x
2625
