Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-03
Appendix B Connectors and Cables
Connector Specifications
1000BASE-X GBIC Module Ports
1000BASE-X Gigabit Interface Converter (GBIC) module ports use duplex SC
connectors, as shown in Figure B-4.

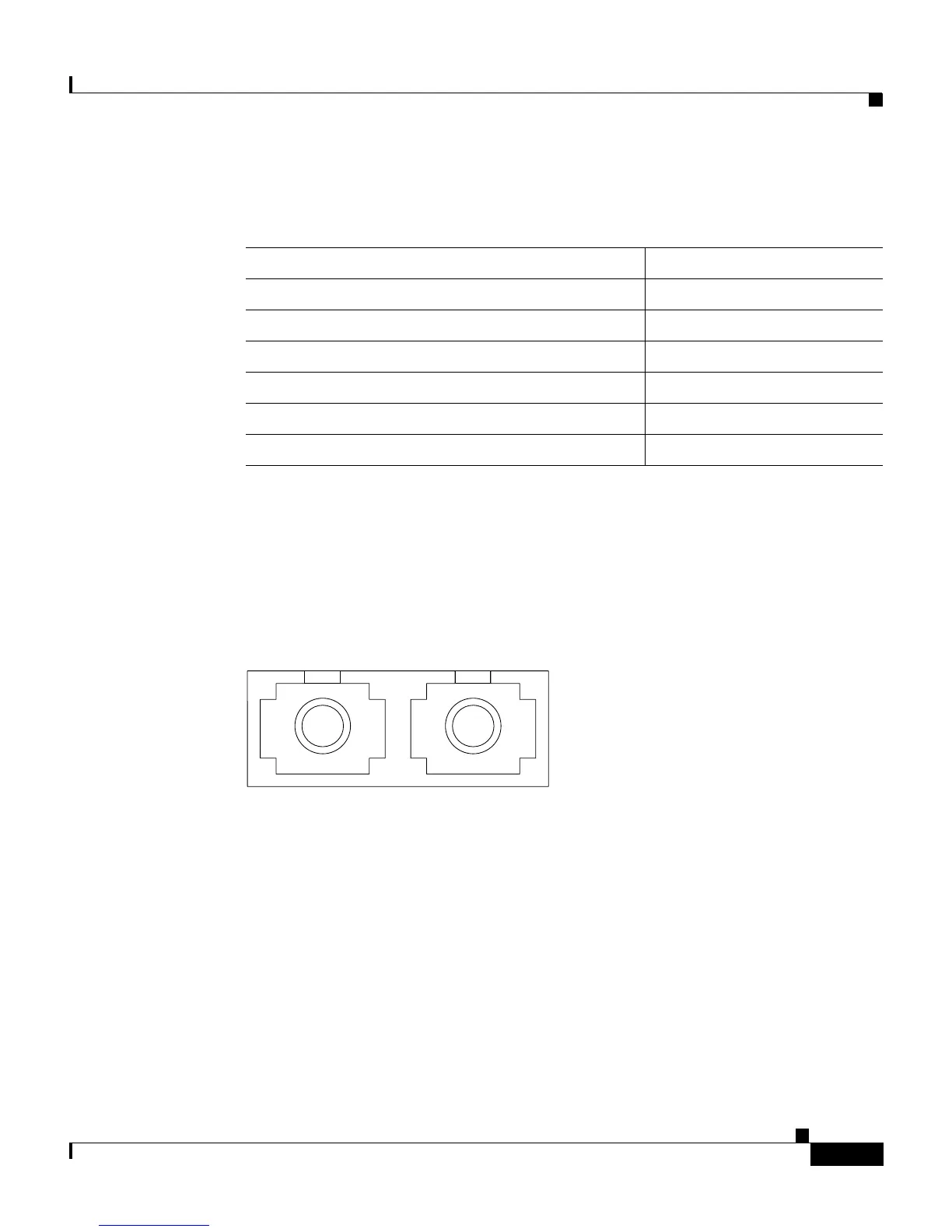

Figure B-4 1000BASE-X SC Connector
1000BASE-T GBIC Module Ports
The 1000BASE-T GBIC module port uses one RJ-45 connector, as shown in
Figure B-2.
Table B-1 MT-RJ Patch Cables for 100BASE-FX and 1000BASE-SX
Connections
Type Cisco Part Number
1-meter, MT-RJ-to-SC multimode cable CAB-MTRJ-SC-MM-1M
3-meter, MT-RJ-to-SC multimode cable CAB-MTRJ-SC-MM-3M
5-meter, MT-RJ-to-SC multimode cable CAB-MTRJ-SC-MM-5M
1-meter, MT-RJ-to-ST multimode cable CAB-MTRJ-ST-MM-1M
3-meter, MT-RJ-to-ST multimode cable CAB-MTRJ-ST-MM-3M
5-meter, MT-RJ-to-ST multimode cable CAB-MTRJ-ST-MM-5M
60535
Tx Rx
