Chapter 2 Installation
Installing the Switch in a Rack
2-14
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-03

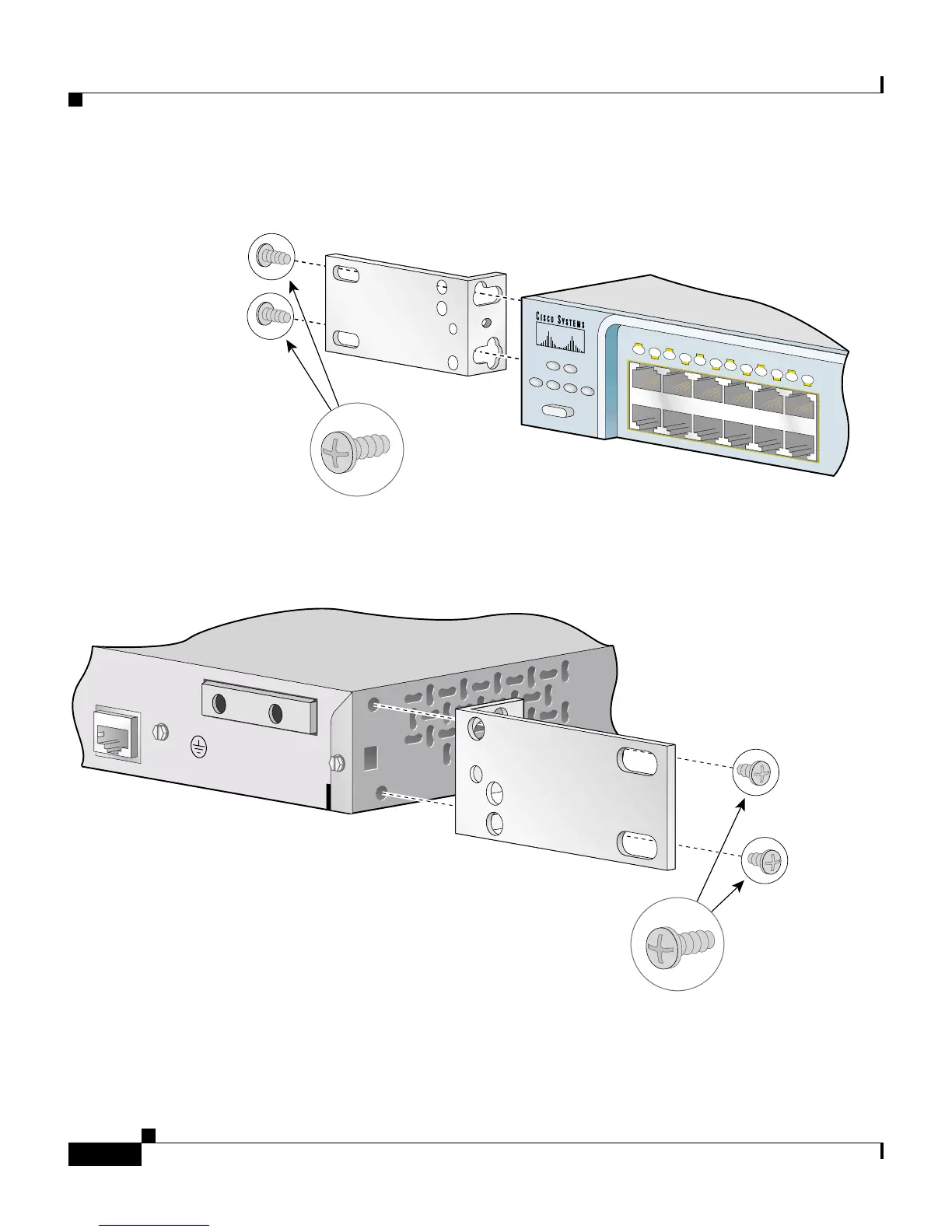

Figure 2-7 Attaching Brackets on the Catalyst 2950G-24-EI-DC Switch in a
23-Inch Telco Rack (Front Panel Forward)
Figure 2-8 Attaching Brackets on the Catalyst 2950G-24-EI-DC Switch in a 23-Inch Telco Rack
(Rear Panel Forward)
SYST RPS
DUPLX
MODE
SPEED
UTIL
S TAT
1X
2X
11X
12X
1
2
3
4
5
6
7
8
9
10
11
12
65673
Number-8
Phillips
truss-head
screws
C
O
N
S
O
LE
Number-8
Phillips
truss-head
screws
65674
