2-31
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-03
Chapter 2 Installation
Connecting to DC Power
Step 6 Repeat Steps 4 and 5 for the remaining three DC-input power source wires.

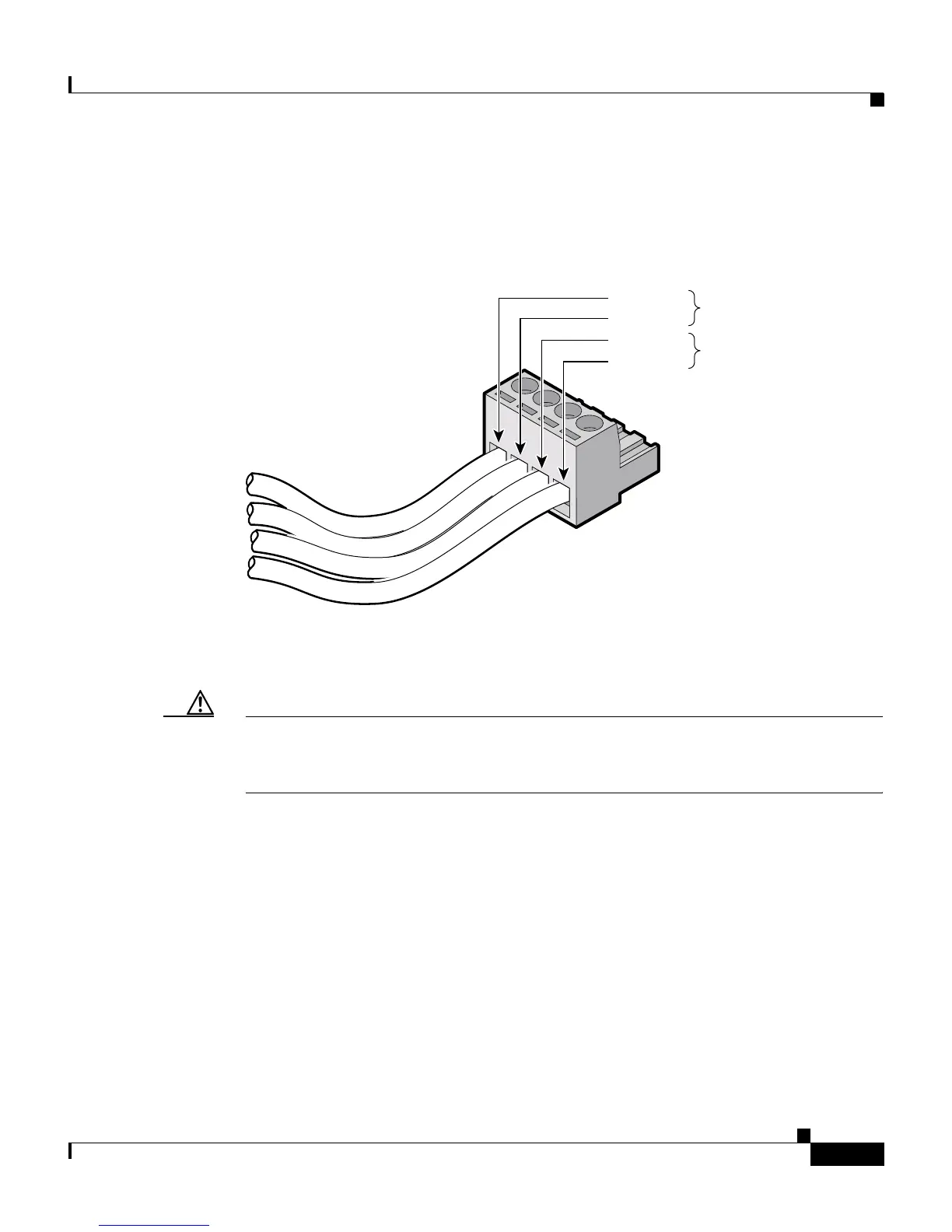

Figure 2-29 shows the completed wiring of a terminal block plug.
Figure 2-29 Completed Wiring of Terminal Block Plug
Step 7 Insert the terminal block plug in the terminal block header on the switch rear panel
(see Figure 2-30).
Caution Secure the wires coming in from the terminal block so that they cannot be
disturbed by casual contact. For example, use tie wraps to secure the wires to the
rack.
60534
Return
Negative
Return
Negative
Feed A
Feed B
