Chapter 2 Installation
Connecting a PC or a Terminal to the Console Port
2-44
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-03
After gaining access to the switch, you can change the port baud rate. Refer to the
switch software configuration guide for instructions.
Step 3 Insert the adapter cable in the console port, as shown in Figure 2-38, Figure 2-39,
and Figure 2-40. (See the “Cable and Adapter Pinouts” section on page B-10 for
pinout descriptions.)

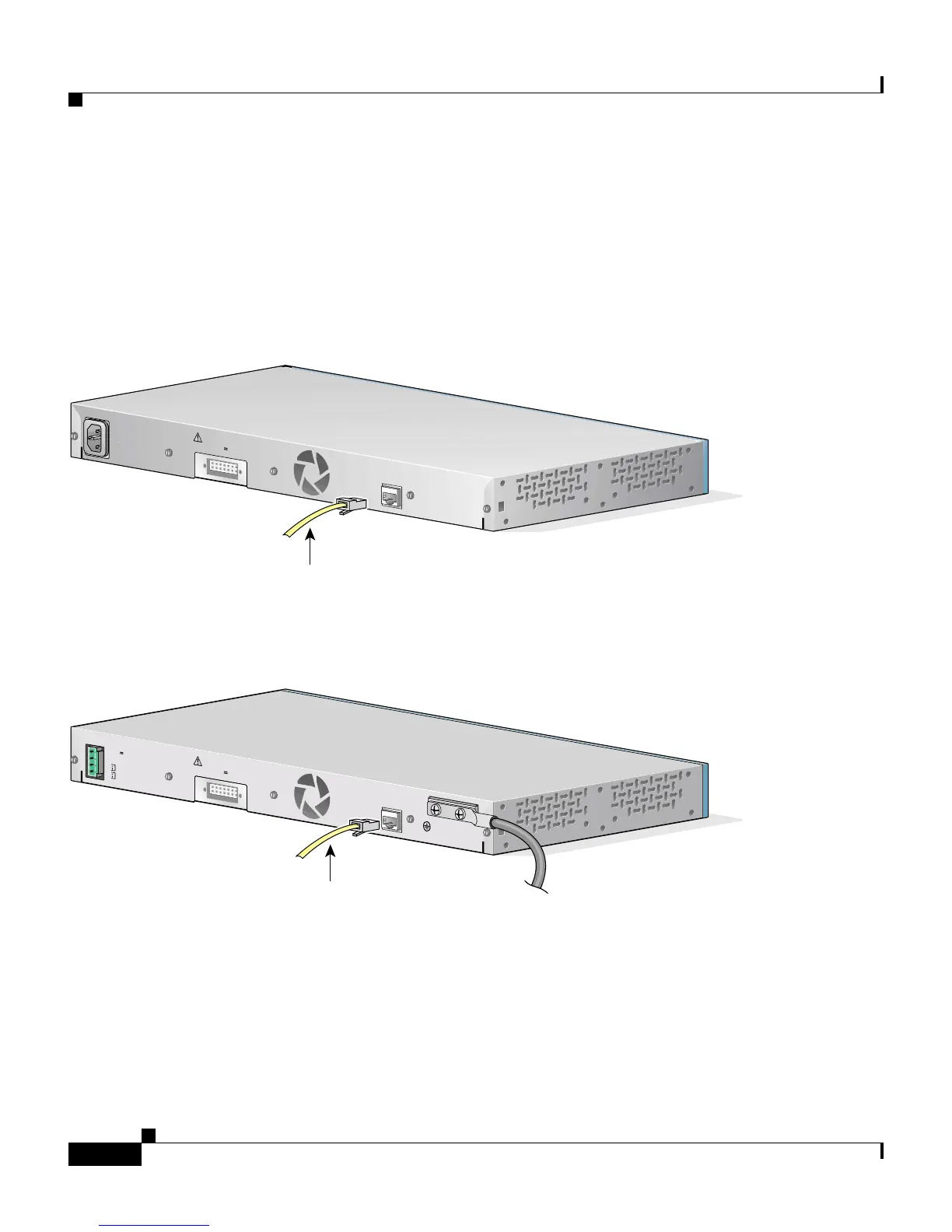

Figure 2-38 Connecting to the Console Port
Figure 2-39 Connecting to a Console Port Only on Catalyst 2950G-24-EI-DC Switches
RATING
100-127V~
@
1A
200-240V~
@
0.5A
50-60Hz
D
C INPUT FO
R
R
EM
O
TE
PO
W
ER
SUPP
LY
SPECIFIED
IN M
AN
U
AL.
+12V @
4.5A
CO
NSO
LE
RJ-45-to-DB-9
adapter cable
74589
D
C IN
PU
T FO
R REM
O
TE
PO
W
ER SUPPLY
SP
ECIFIED IN
M
AN
UAL.
+12V @
4.5A
3
6
-
7
2
V
1
-
0
.5
A
C
O
NS
O
LE
A
B
74590
RJ-45-to-DB-9
adapter cable
