1-16 T-Series Traffic Director Installation, Configuration and Administration Guide
Chapter 1 Introduction

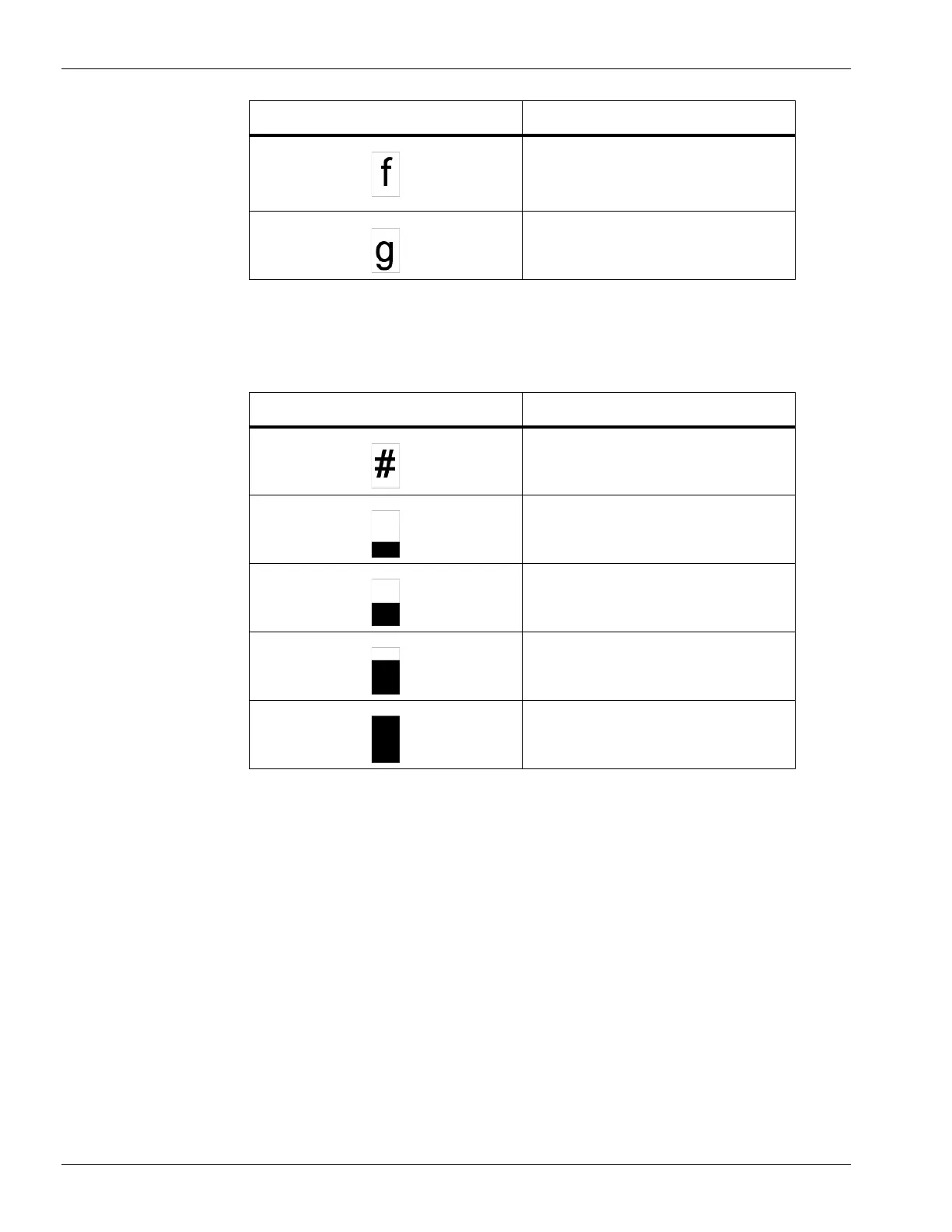

The following table defines the various abbreviations and symbols that appear in the R row
of the port information screen.
Table 1-4 Port Abbreviations and Symbols for R Row
Ports
Ports are used to connect the T1000 to external devices. All models of T1000 support RS232
serial ports and 10/100/1000Base-T copper Ethernet ports for management plane
connections. Depending on the model, the T1000 supports one or more of the following:
10/100/1000Base-T copper Ethernet ports, 1-gigabit SFP ports, or 10-gigabit SFP+ ports
RS232 Serial Port
The RS232 serial console port on the front panel of the T1000 provides a connection
between the T1000 and a computer, allowing direct access to the T1000 for initial
configuration or troubleshooting.
All hardware platforms ship with an appropriate serial cable used to connect your computer
to the T1000.
A rate of 100 megabits per second,
half duplex mode, and flow control
OFF.
A rate of 1 gigabit per second, half
duplex mode, and flow control OFF.
R row abbreviation/symbol Indicates
The port is disabled.
Receive speed is about 10% of line
speed.
Receive speed is about 50% of line
speed.
Receive speed is about 75% of line
speed.
Receive speed is about 100% of line
speed.
S row abbreviation/symbol Indicates
