61
NX700
English
INSTALLATION
MANUAL

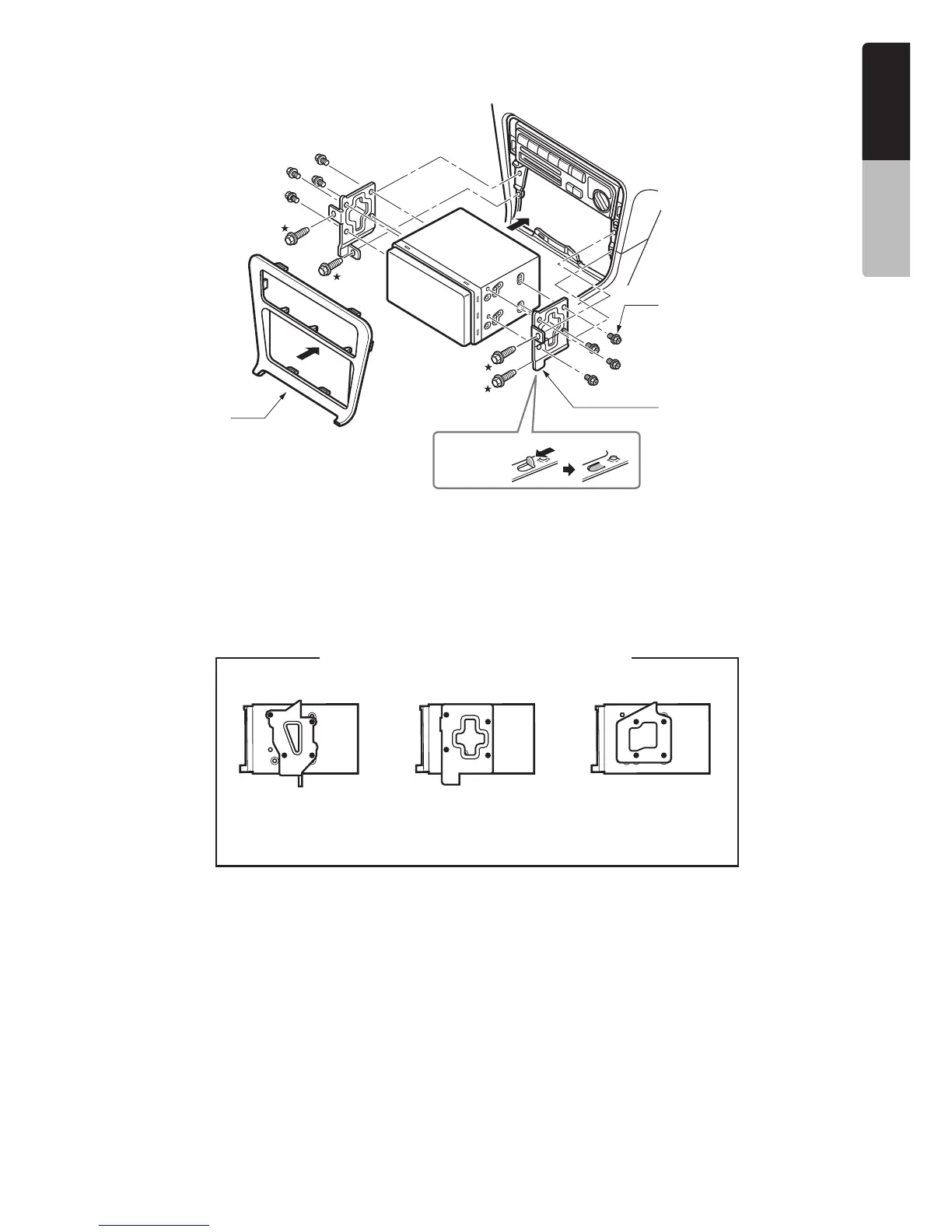

Installing the Main Unit in a TOYOTA Vehicle
Install by using parts attached to the vehicle. (Screws marked ★ are attached to the vehicle.)
Note:
*2 Some panel openings are too small for the unit
depending on the vehicle type and model. In
such a case, trim the upper and lower sides of the
panel frame by about 0.5 to 1.5 mm so the unit
can be inserted smoothly.
*3 If a hook on the installation bracket interferes
with the unit, bend and flatten it with a nipper or
similar tool.
Vehicles other than NISSAN and TOYOTA
In some cases the center panel may require modification. (Trimming, filing, etc.)
Figure 7
Mounting bracket
(1 pair for the left and right
sides)
8-Hexagonal screw
(M5 × 8)
Center Panel *2
Main Unit
*3
Typical Mounting Brackets
Example 1 Example 2 Example 3
Affix the screws to the ● marks.
To Next Page
