60
NX700
English
INSTALLATION
MANUAL
5. INSTALLING THE MAIN UNIT
This unit is designed for fixed installation in the
dashboard.
• When installing the main unit in NISSAN
vehicles, use the parts attached to the unit and
follow the instructions in Figure 6.
When installing the main unit in TOYOTA
vehicles, use the parts attached to the vehicle
and follow the instructions in Figure 7.
• Wire as shown in Section 10 (see page 65).
• Reassemble and secure the unit in the
dashboard and set the face panel and center
panel.

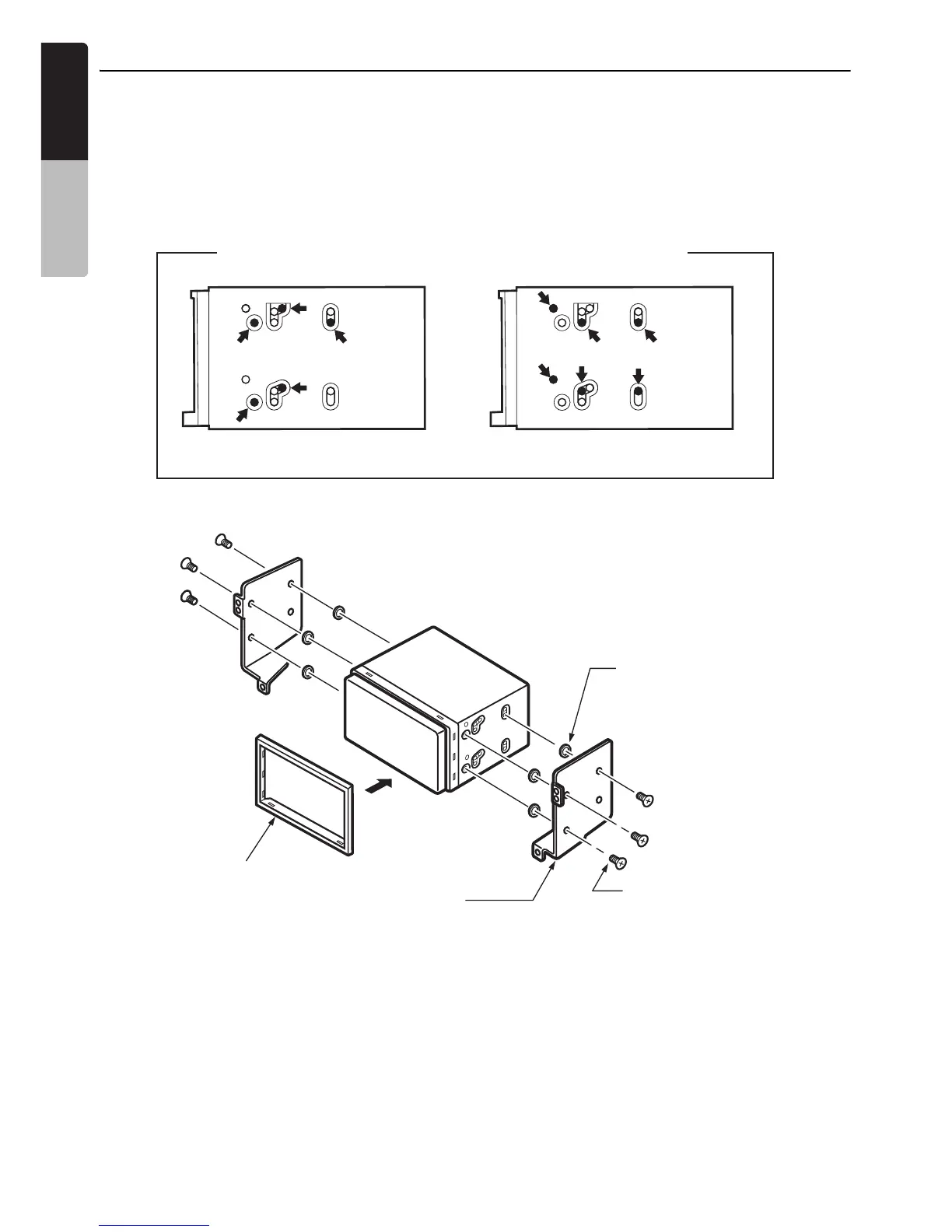

Installing the Main Unit in a NISSAN Vehicle
Note:
*1 Position the face panel with its wide edge at the bottom. Fit the edge into the groove of the main unit.
Mounting Screw Holes (Side View of the Main Unit)
For NISSAN vehicle For TOYOTA vehicle
Figure 6
6-Spacer (thickness: 1 mm)
6-Flat head screw
(M5 × 8)
(attached to the main unit)
Mounting bracket
(1 pair for the left and right sides)
Finisher (*1)
Main Unit
To Next Page
