Table B5-13. CFC Flow Rates (Metric)

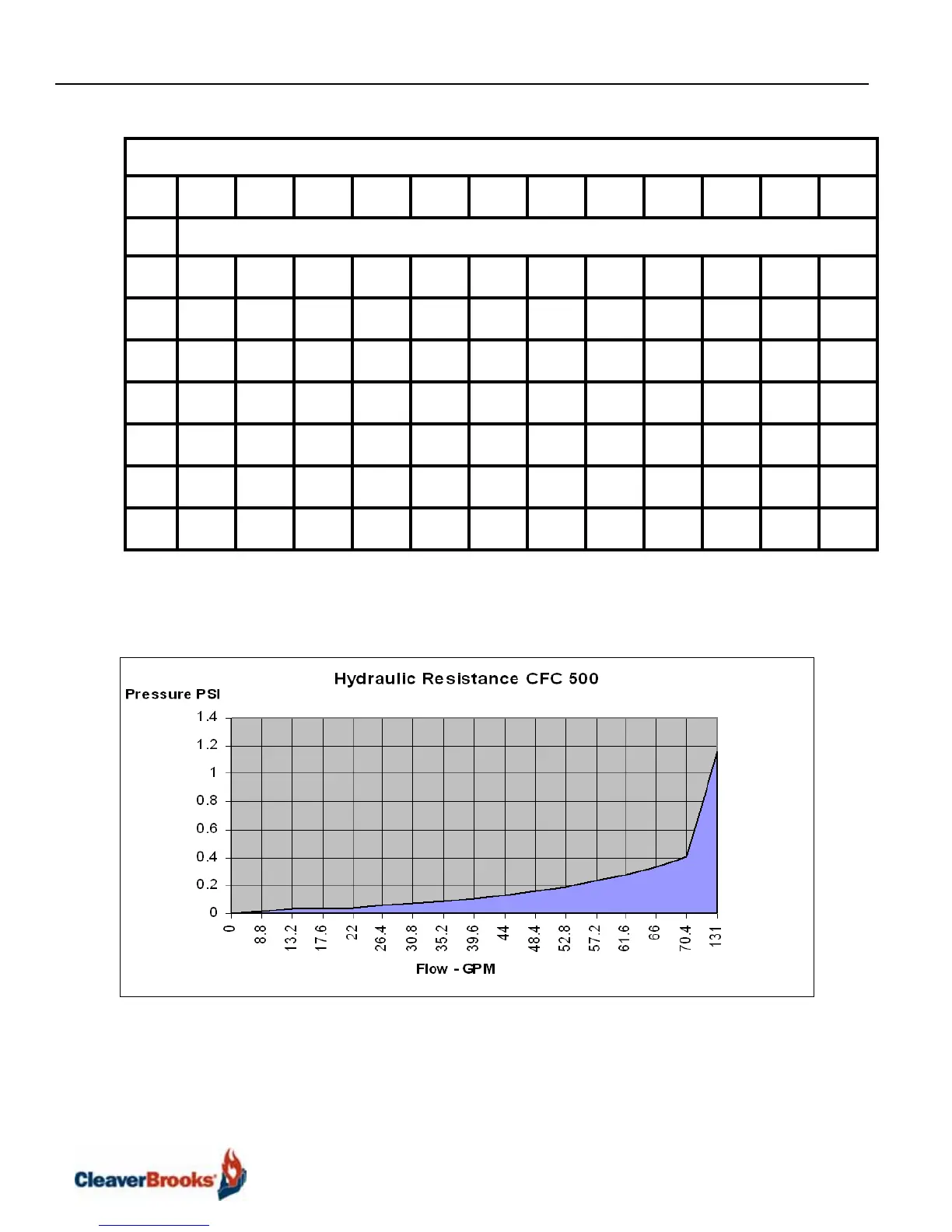

Figure B5-15. Pressure Drop Curve ClearFire Boiler Size 500
System Temperature Drop
0
C
5 1117222733384550556164
Boiler
Size
Flow Rate m
3
/hr.
500 21.6 10.9 7.5 5.4 4.3 3.6 2.7 2.5 2.3 2 1.8 1.6
750 29.75 15 10 7.5 6 5 4.3 3.6 3.4 2.9 2.7 2.5
1000 40 20 14 10 87654.543.63.4
1500 59 29.5 20 15 12 10 8.4 7.5 6.6 6 5.4 5.2
1800 80 40 27 20 16 13 11.3 10 9 8 7.3 6.8
2500 106.7 53.4 36.7 26.8 21.6 17.9 15.2 13.4 11.8 10.9 9.8 8.8
3300 141 70 47 35 28 23 20 18 16 14 13 12
Flow rate as a function of Delta T at 94% efficiency and maximum firing capacity
