Model CFC ClearFire Commercial Boilers
54 Rev. 05-2012

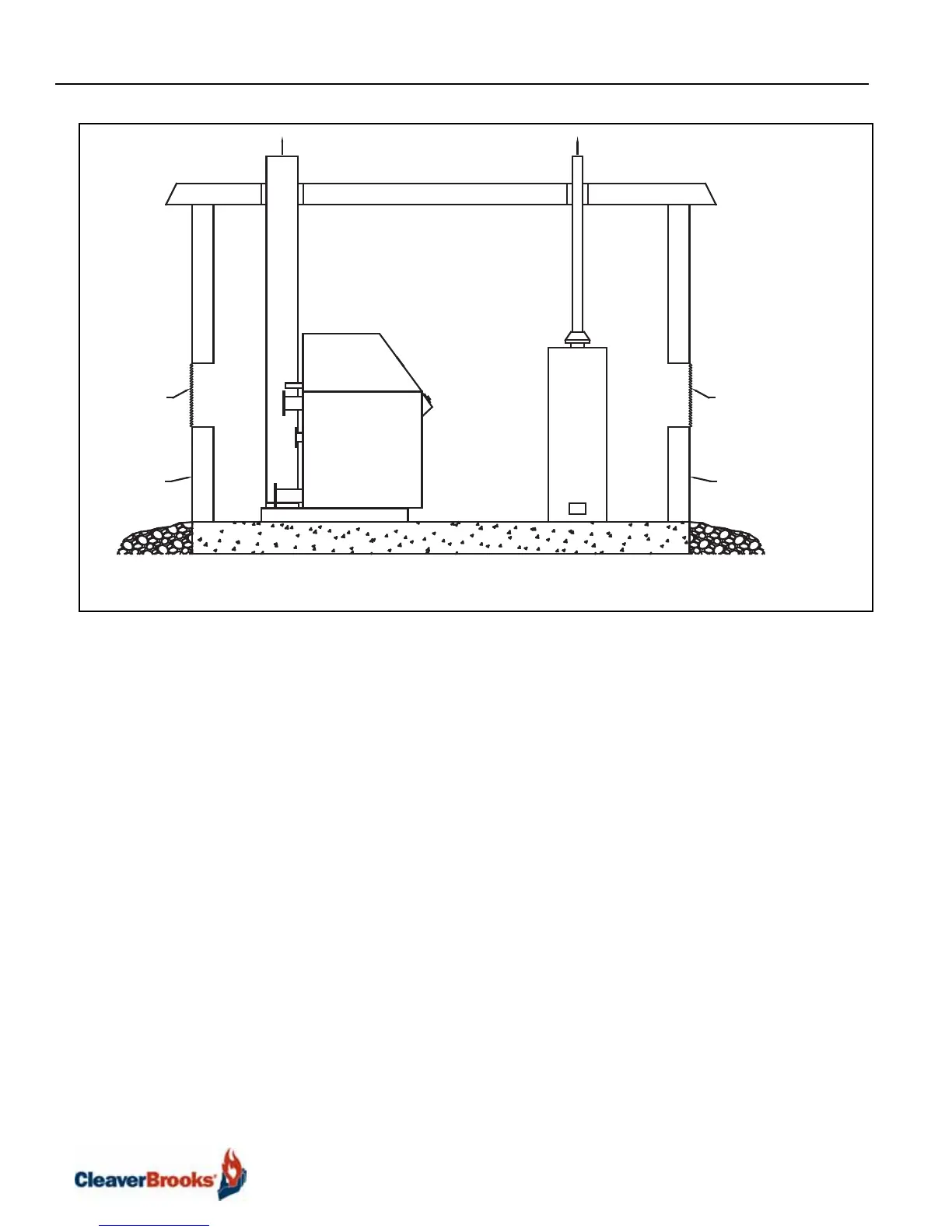

Figure B5-48. Two Opening Engineered Method
E. Size the openings by using the formula:
Area in square feet = cfm/fpm
Where cfm = cubic feet per minute of air
Where fpm = feet per minute of air
2. Amount of Air Required (cfm).
A. Combustion Air = 0.25 cfm per kBtuh.
B. Ventilation Air = 0.05 cfm per kBtuh.
C. Total air = 0.3 cfm per kBtuh (up to 1000 feet elevation. Add 3% more per
1000 feet of added elevation).
3. Acceptable air velocity in the Boiler Room (fpm).
A. From floor to 7 feet high = 250 fpm.
B. Above 7 feet above floor = 500 fpm.
Example: Determine the area of the boiler room air supply openings for (2) Clearfire
1800 boilers at 750 feet elevation. The air openings to be 5 feet above floor level.
• Air required: 1800 x 2 = 3600 kBtuh. From 2C above, 3600 x 0.3 =
1,080 cfm.
• Air Velocity: Up to 7 feet = 250 fpm from 3 above.
• Area required: Area = cfm/fpm = 1,080/250 = 4.32 square feet total.
• Area/Opening: 4.32/2 = 2.16 sq-ft/opening (2 required).
GAS
VENT
CLEARFIRE
BOILER
WATER
HEATER
GAS
VENT
EXTERIOR WALL
FRESH AIR OPENING
EXTERIOR WALL
FRESH AIR OPENING
