Model CFC ClearFire Commercial Boilers
31 Rev. 05-2012

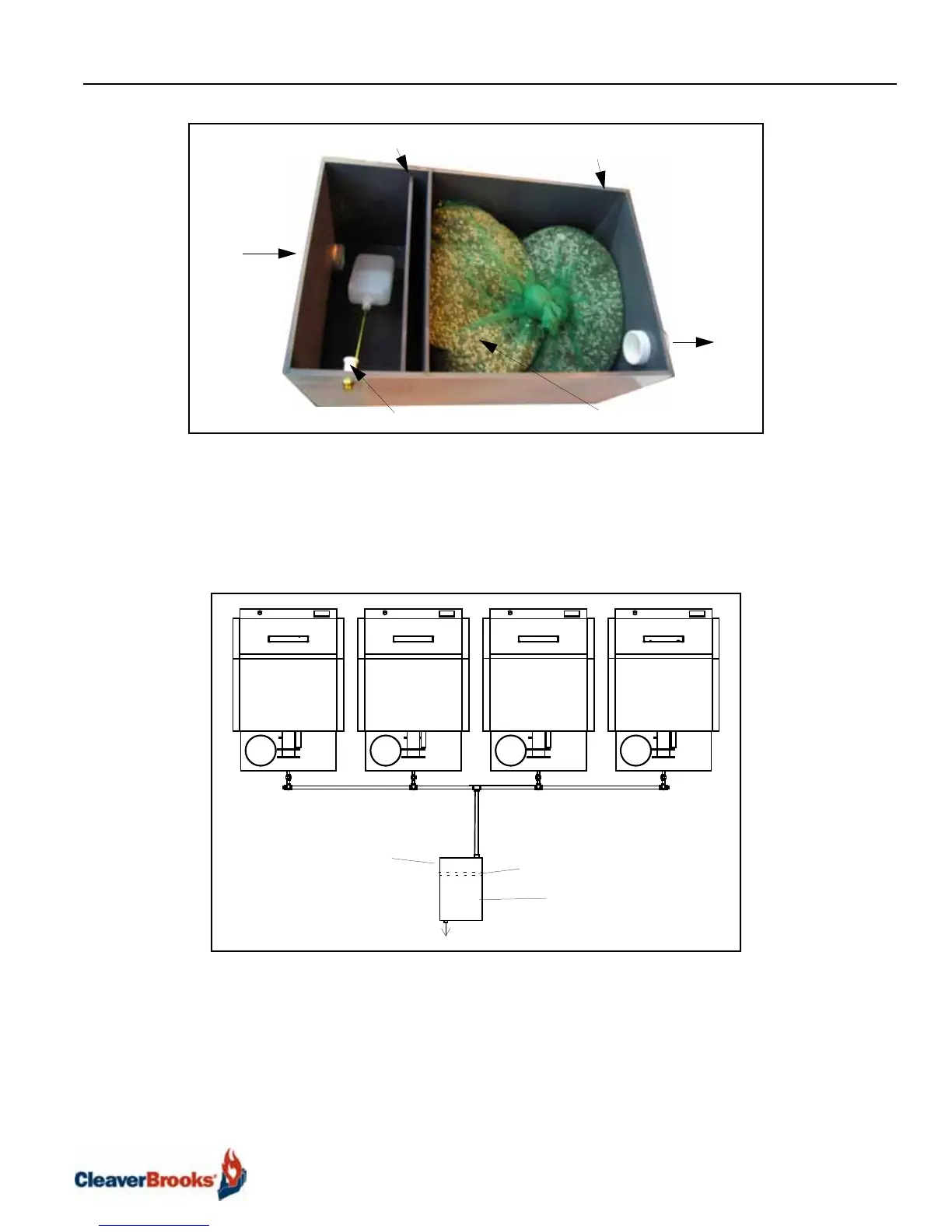

Figure B5-23. Optional Condensate Treatment Assembly
Notice
If a treatment kit is utilized, clearance at the front of the boiler must be provided for
servicing the assembly and for periodically adding the neutralizing granules.
Figure B5-24. Condensate Piping for Multiple Boilers
Neutralization media
To drain
Neutralization tank
Drain trap
Condensate in
Float valve for makeup water
To Drain
1/4" O.D. Make-up Water Supply
Condensate Drain Trap
Neutralization Tank
To Next Page
