CleaverBrooks CFC ClearFire - No Primary Loop with Domestic Water and 2-Way Divert Valve

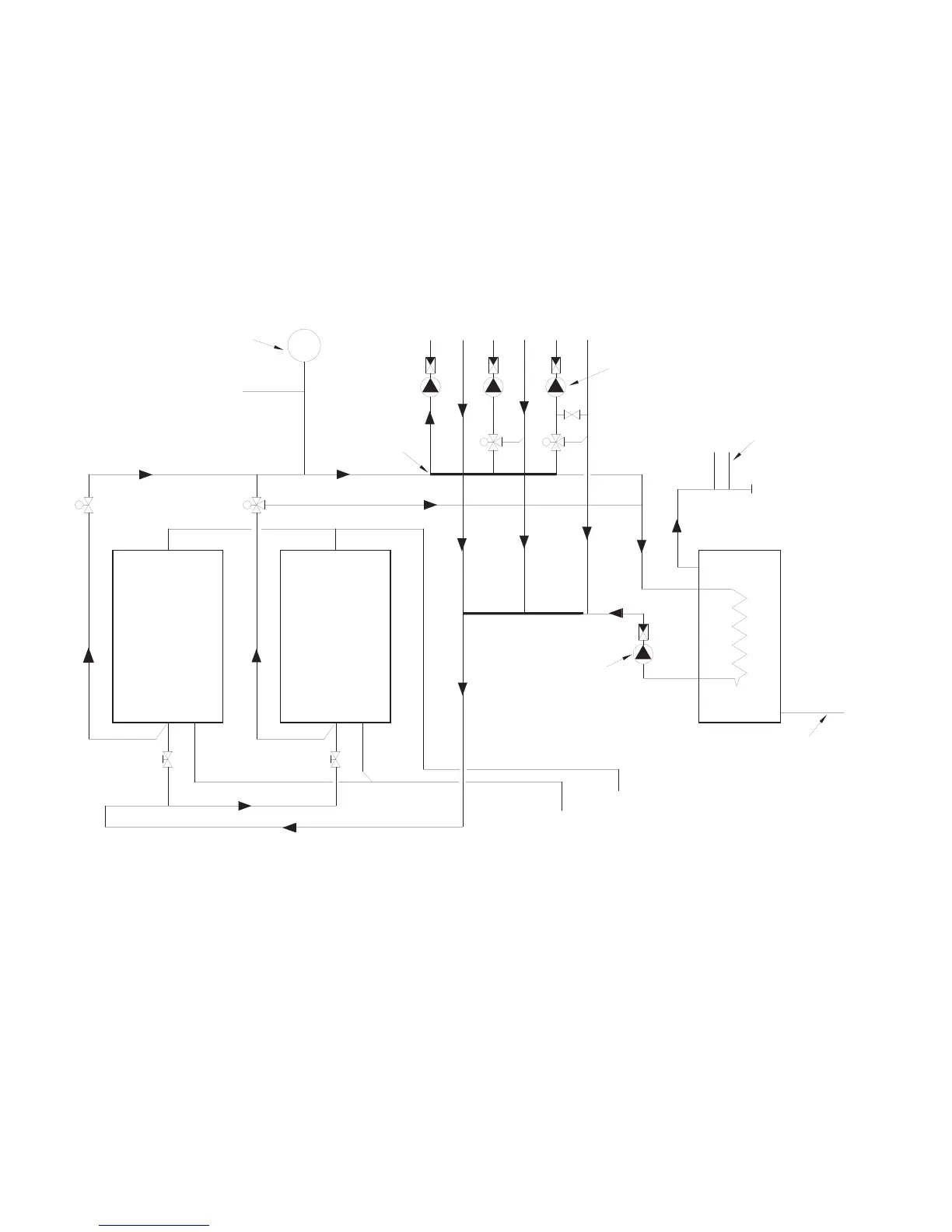

Figure B5-33. No primary Loop with Domestic Water and 2-Way Divert Valve
ClearFire Full
Condensing
ClearFire Full
Condensing
To Condensate Drain
To Sanitary Drain
System Returns
Domestic Cold
Water In
Domestic
Water
Domestic
Water Pump
Return Header
Boiler Drain
Domestic
Water Supply
Heating System
Pumps
System Supply & Returns
System Supply
Header
Expansion
Tank
Water
Makeup
2-Way Diverting
Valve
On/Off Valve
